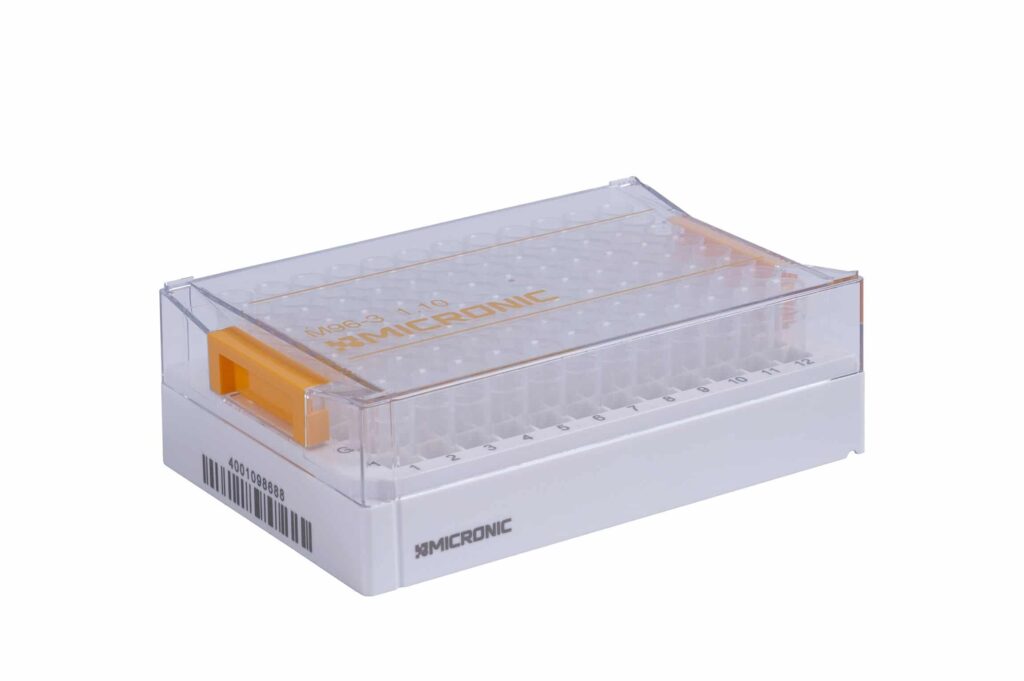

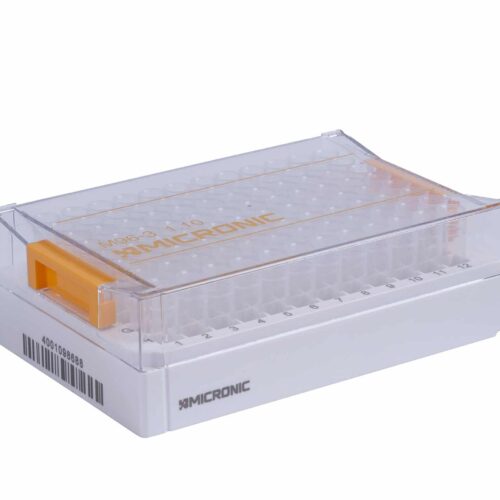

マイクロニック 96-3 ULTラック

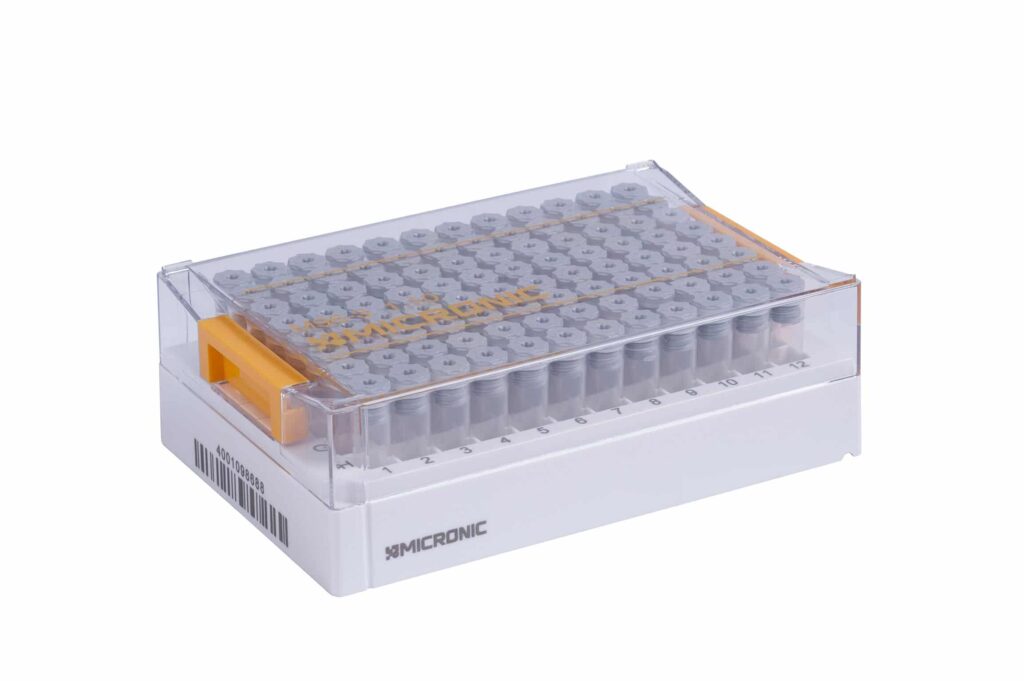

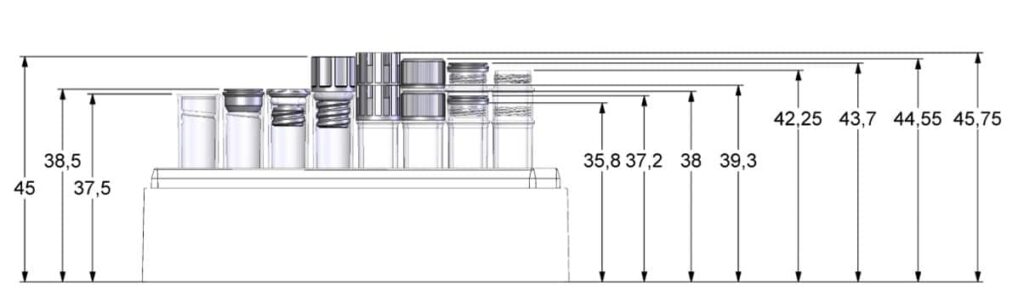

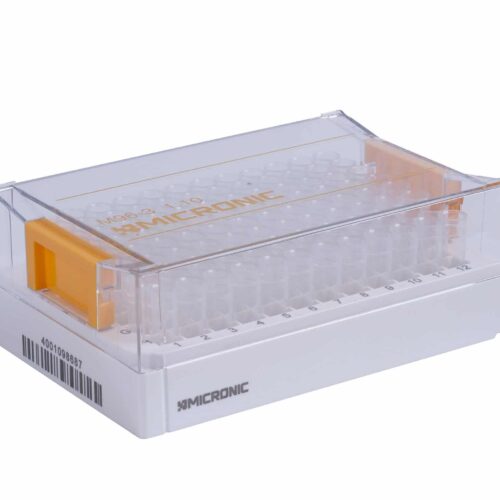

マイクロニック 96‑3 ULTラックは、0.80 ml外ねじチューブおよび1.10 ml内ねじ/外ねじチューブ向けに設計されています。ラックには、ラックおよびチューブの種類を示すカバープリント、ラック方向を示すマーク、高い透明度のカバーが装備されており、収納されたサンプルの目視確認が容易です。96‑3ラックには標準で1Dバーコードが装備され、オプションで底部に2Dデータマトリックスコードを追加できます。

当社のソリューション

卓越した機能性を誇るラックシリーズ

マイクロニックは、30年以上にわたり、研究所や実験施設向けにトレーサビリティ対応のサンプル保管ソリューションを製造・提供してきました。その豊富な経験をもとに、次世代型の超低温チューブストレージラックシリーズ「ULTラック」を開発しました。このULTラックは、洗練された外観に加え、機能面においても卓越しています。極めて頑丈な構造は超低温環境での使用に最適化されており、蓋の霜付着を軽減する独自の「アイスブレーカー」機構を搭載。さらに、ラックやチューブの種類を識別しやすいカバープリント、ラックの方向を示すガイドマーク、サンプルの目視確認を容易にする高透明カバーなど、多彩な機能を備えています。

マイクロニックULTラックは、認証取得済みのクラス7クリーンルームにて精密に製造され、ANSI/SLAS準拠のストレージラック規格に適合。96本、48本、または24本のチューブ収納に対応し、上部には英数字による位置ガイド、側面には1Dバーコードと人が読み取れるコード、底部には2Dデータマトリックスコードをレーザー刻印。これにより、サンプルの完全なトレーサビリティと再現性を実現します。さらに、オープンボトムデザインにより、サンプルの迅速な解凍を可能に。複数回のオートクレーブ滅菌にも対応しており、ディスポーザブル製品と比較して大幅なコスト削減に貢献します。

特徴と利点

マイクロニック 96-3 ULTラック

ラック識別用ID

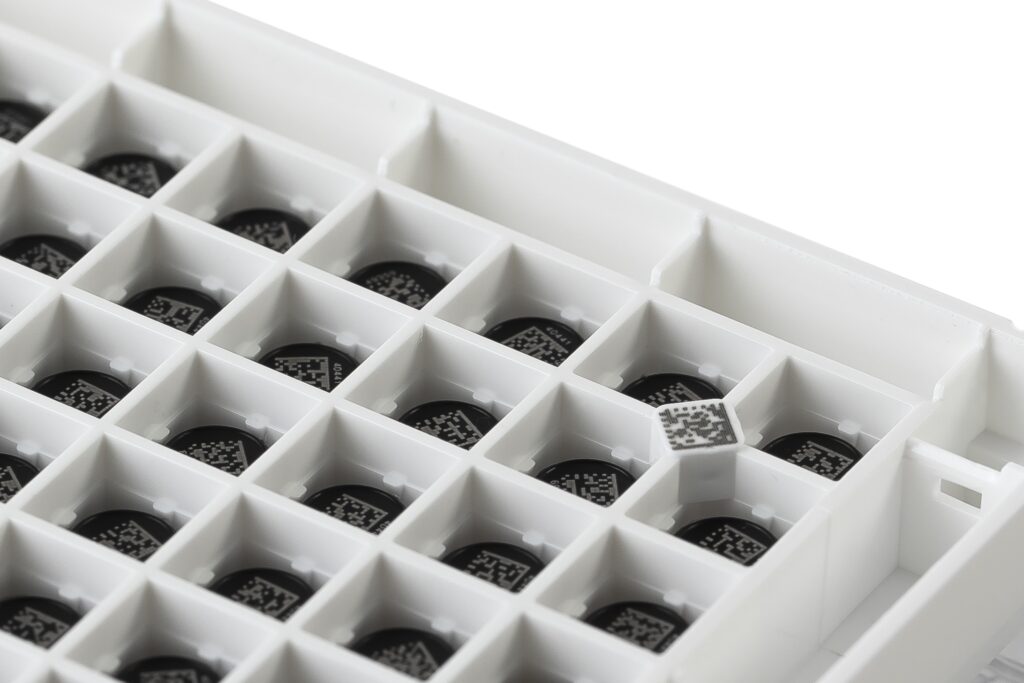

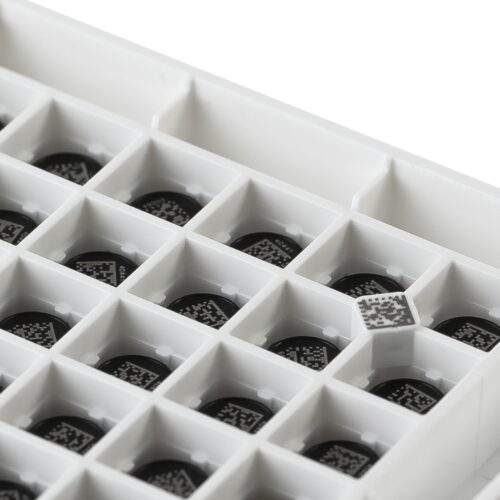

ラック上部にレーザー刻印による英数字コード、ラック側面に人が読み取れるコード付き1Dバーコード、ラック底部に2Dデータマトリックスコード
超低温
ポリカーボネート製で、低温環境下でも優れた特性を発揮
『アイスブレーカー』機構
超低温保存用の新ロック機構: 『アイスブレーカー』を搭載
互換性
主要なサンプル保管オートメーションシステム(–20°C、–80°C、さらにはそれ以下の温度帯)へ対応
RNASE/DNASE/エンドトキシン
検出可能なRNaseおよびDNaseの汚染はなく、製造・包装されたラボウェアのエンドトキシンレベルは許容最小限(< 0.01 EU/ml)未満
クラス7クリーンルーム
マイクロニックのラボウェアは、NEN-EN-ISO 14644-1 クラス7認証を取得したクリーンルーム環境で自社製造
仕様

製品情報

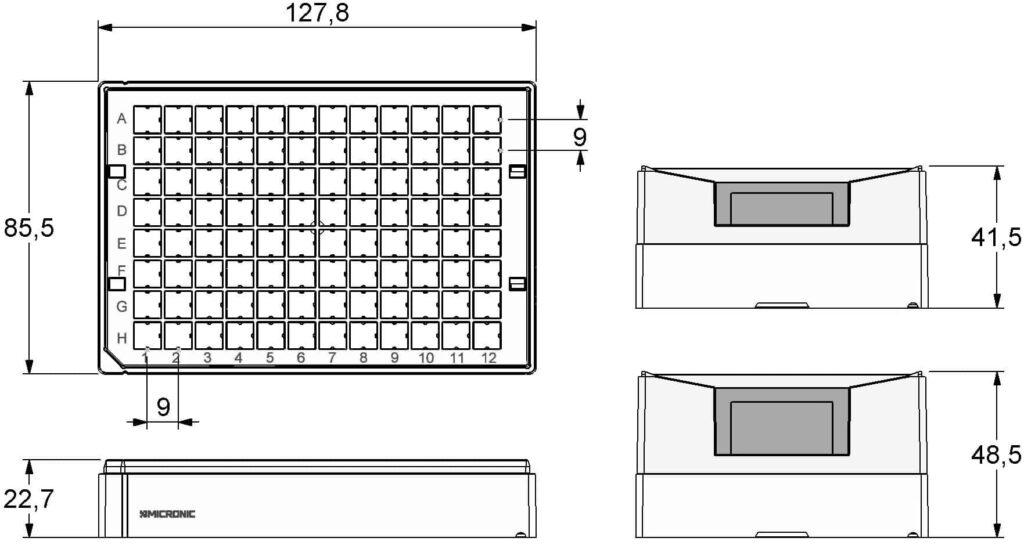

項目 マイクロニック 96-3 ULTラック
素材 高純度PC
ラック高さ 22.7mm
ラック高さ(ローカバー) 41.5mm
ラック高さ(ハイカバー) 48.5mm
ラック長さ 127.8mm
ラック幅 85.5mm
化学耐性 ++/+
使用温度帯 液体窒素の気相から140°C
製品レビュー

お客様の声

“At the AMC location, years of positive experience with Micronic have shown that their products consistently meet high standards, ensuring smooth laboratory operations and dependable sample storage”

Read full testimonial

"The flexibility of Micronic’s SBS-format tubes ensures smooth integration into LACDR’s automated workflows. Additionally, the high quality and purity of the Micronic tubes guarantee robust sample preparation, free from leachables or contamination, which is crucial for obtaining reliable and reproducible research results"

Read full testimonial

"We are very happy with the tubes of Micronic, it is truly more efficient and space saving than we had in the past. Next to that, the fact that the tube positions are laser-etched in the rack itself is very helpful. We always know where the A1 tube is located."

Read full testimonial

Sampled is an American based company that gives laboratories the ability to outsource various services, like sample management, sample storage, multiomics, cellular services and kitting and logistics.

Read full testimonial

“The integration of Micronic’s systems within our LIMS has proven invaluable in supporting our diagnostic efforts. The robust track and trace capabilities ensure that each sample is accurately logged, reducing the risk of errors and facilitating quick retrieval of information"

Read full testimonial
Amsterdam UMC (NL)
品番

発注用情報

Article Number Description Unit Size Case Size
MP51217 Micronic 96-3 Rack with low cover for 0.80ml tubes capped with Screw Caps (empty) (Barcoded A1-H1 side) 10 racks 4
MP51207 Micronic 96-3 Rack with low cover for 1.10ml tubes capped with Push Caps or Low Profile Screw Caps (empty) (barcoded A1-H1 side) 10 racks 4
MP51208 Micronic 96-3 Rack with high cover for 1.10ml tubes capped with Screw Caps (empty) (barcoded A1-H1 side) 10 racks 4
Article Number Description Unit Size Case Size
MP51227 Micronic 96-3-DM Rack with low cover for 0.80ml tubes capped with Screw Caps (empty) (Barcoded A1-H1 side) 10 racks 4
MP51228 Micronic 96-3-DM Rack with low cover for 1.10ml tubes capped with Push Caps or Low Profile Screw Caps (empty) (Barcoded A1-H1 side) 10 racks 4
MP51229 Micronic 96-3-DM Rack with high cover for 1.10ml tubes capped with Screw Caps (empty) (Barcoded A1-H1 side) 10 racks 4
Article Number Description Unit Size Case Size
MP52722 0.80ml 2D Data-Matrix coded Screw Cap tubes with External Thread V-bottom in Micronic 96-3 Rack with low cover (Barcoded A1-H1 side) 10 racks 4
MP52739 0.80ml 2D Data-Matrix coded Screw Cap tubes with External Thread V-bottom in Micronic 96-3-DM Rack with low cover (Barcoded A1-H1 side) 10 racks 4
Article Number Description Unit Size Case Size
MP32120 1.10ml Non coded Screw Cap tubes V-bottom in Micronic 96-3 Rack with low cover (Barcoded A1-H1 side) 10 racks 4
MP32121 1.10ml Non coded Screw Cap tubes V-bottom in Micronic 96-3 Rack with high cover (Barcoded A1-H1 side) 10 racks 4
MP32122 1.10ml Non coded Screw Cap tubes with Internal Thread V-bottom in Micronic 96-3-DM Rack with low cover (Barcoded A1-H1 side) 10 racks 4
MP32123 1.10ml Non coded Screw Cap tubes with Internal Thread V-bottom in Micronic 96-3-DM Rack with high cover (Barcoded A1-H1 side) 10 racks 4
MP52540 1.10ml 2D Data-Matrix coded Screw Cap tubes V-bottom in Micronic 96-3 Rack with low cover (Barcoded A1-H1 side) 10 racks 4
MP52541 1.10ml 2D Data-Matrix coded Screw Cap tubes V-bottom in Micronic 96-3 Rack with high cover (Barcoded A1-H1 side) 10 racks 4
MP52542 1.10ml 2D Data-Matrix coded Screw Cap tubes with Internal Thread V-bottom in Micronic 96-3-DM Rack with low cover (Barcoded A1-H1 side) 10 racks 4
MP52543 1.10ml 2D Data-Matrix coded Screw Cap tubes with Internal Thread V-bottom in Micronic 96-3-DM Rack with high cover (Barcoded A1-H1 side) 10 racks 4
Article Number Description Unit Size Case Size
MP52732 1.10ml 2D Data-Matrix coded Screw Cap tubes with External Thread V-bottom in Micronic 96-3 Rack with high cover (Barcoded A1-H1 side) 10 racks 4
MP52740 1.10ml 2D Data-Matrix coded Screw Cap tubes with External Thread V-bottom in Micronic 96-3-DM Rack with high cover (Barcoded A1-H1 side) 10 racks 4
