TPE Capcluster-96
The Micronic TPE Capcluster is compatible with 96-well format tubes. The TPE Capcluster is available in Natural + 12 different colors, providing for visual color identification.
Micronic uniquely offers the 2.50ml push cap tube, which has the highest net working volume on 96-format: 2.50ml per individual tube (working volume at +21ºC). The tube has a round outer bottom, is non-coded and is standard available in the Roborack-96. The Micronic Push Cap Capper CP610 has been specifically designed to automatically close 2.00ml and 2.50ml sample storage tubes with push caps.
Micronic operates corporate integrated Quality Management System (QMS) that is certified to ISO 9001:2015.
Reducing our impact on the environment is an integral part of our continuous improvement efforts. The environmental policy of Micronic is determined by our headquarters in the Netherlands, which is certified to ISO 14001:2015.
Micronic labware is manufactured and assembled in-house in a NEN-EN-ISO14644-1 Class 7 certified clean room environment (which is comparable to the US Federal Standard 209E Class 10,000).
For the manufacturing of its long term sample storage labware products Micronic uses solely virgin plastic raw material. The raw materials and auxiliary agents are selected based on the specifications that satisfy the high quality requirements of our products. The materials are FDA approved and comply with the (USA) USP XXII tests, including class VI (Medical approved), and the European Pharmacopoeia-monograph 3.2.2 unless communicated otherwise. Material components used to produce Micronic labware can be traced via the lot number indicated on the packaging.
The materials used for Micronic tubes are the result of extensive research. One selection criteria is that no measurable amount of extractables should leach into samples.
By maintaining the highest possible hygiene level during our production processes, Micronic manufactured labware is free of any detectable RNase or DNase contamination and the endotoxin level of produced and packaged labware is limited to an acceptable minimum (< 0.01 EU/ml). Our products are periodically tested on RNase, DNase and their endotoxin levels by independent expert organizations.
The Micronic 2D Data-Matrix codes and 1D barcodes are produced conform industry standards. The 2D Data-Matrix code (which adheres to the ECC200 standard) and 1D barcode (type 128B) are laser-etched into the code area and are guaranteed unique.
Products produced by Micronic are tested according to AQL inspection level G2 and AQL value 0.4.
Micronic labware products are developed and manufactured in compliance with the European Directive 98/79/EC for In Vitro Diagnostic Medical Devices, Annex III.
Upon request, Micronic products can be supplied gamma irradiated or ethylene oxide treated.
Our products comply with the IATA requirements for the transport of diagnostic specimens (UN packing instruction 602 and 650), assuming that our products are properly used (closed).
If you have any additional questions on the quality and safety of our products, please feel free to contact Micronic at sales@micronic.com.
Micronic Non-Coded tubes provide an affordable way to improve sample storage, handling, screening and logistics. Many laboratories use the Non-Coded tubes for short-term storage or intermediate processes. The tubes can also be used for transportation of small or larger volume samples. The tubes are available in bulk or rack. The TPE or EVA Caps are an excellent solution to store samples with quality and cost efficiency. The full TPE cap range is available in Natural and 12 different colors. Cap colors can offer a quick visual sample identification for Non-Coded and any other type of tubes (Tech Note ‘Cap Color Coding’ can be requested).
Parameter | 2.50ml Tubes Internal Thread |
---|---|
Inner tube shape | U-bottom |
Material | Highest purity Polypropylene |
Working volume (+21ºC) | 2.50ml |

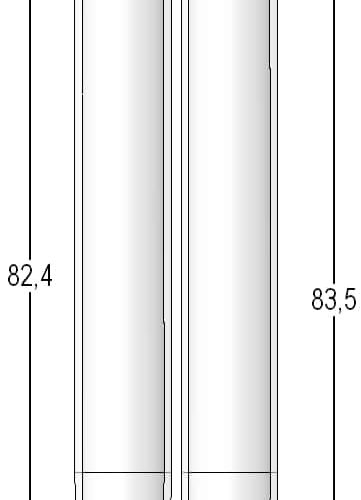

Tube height in rack | 84.7mm (without cover) |
Resistance | Chemical solvents |
Temperature Range | -20°C to +100°C |
Article Number | Description | Unit size | Case Size |
---|---|---|---|
MP32032 | 2.50ml Non coded push cap tubes U-bottom Bulk | 576 tubes | 4 |
The Micronic TPE Capcluster is compatible with 96-well format tubes. The TPE Capcluster is available in Natural + 12 different colors, providing for visual color identification.
Micronic offers a manual tube picking tool: the Tube Selector. The tool is very user friendly since it offers the convenience of single-handed operation.
All manual decappers are compatible with the Micronic TPE Push Caps, TPE LyoCaps and EVA Push Caps in 96-well format of 0.50ml, 0.75ml, 1.10ml, 1.40ml, 2.00ml, and 2.50ml tubes.
The Push Cap Capper CP600 & CP610 can cap Micronic Push Caps (i.e. Capclusters or Capmats) on 96-format tubes with internal thread in rack.
