Micronic Rack Filler LT500

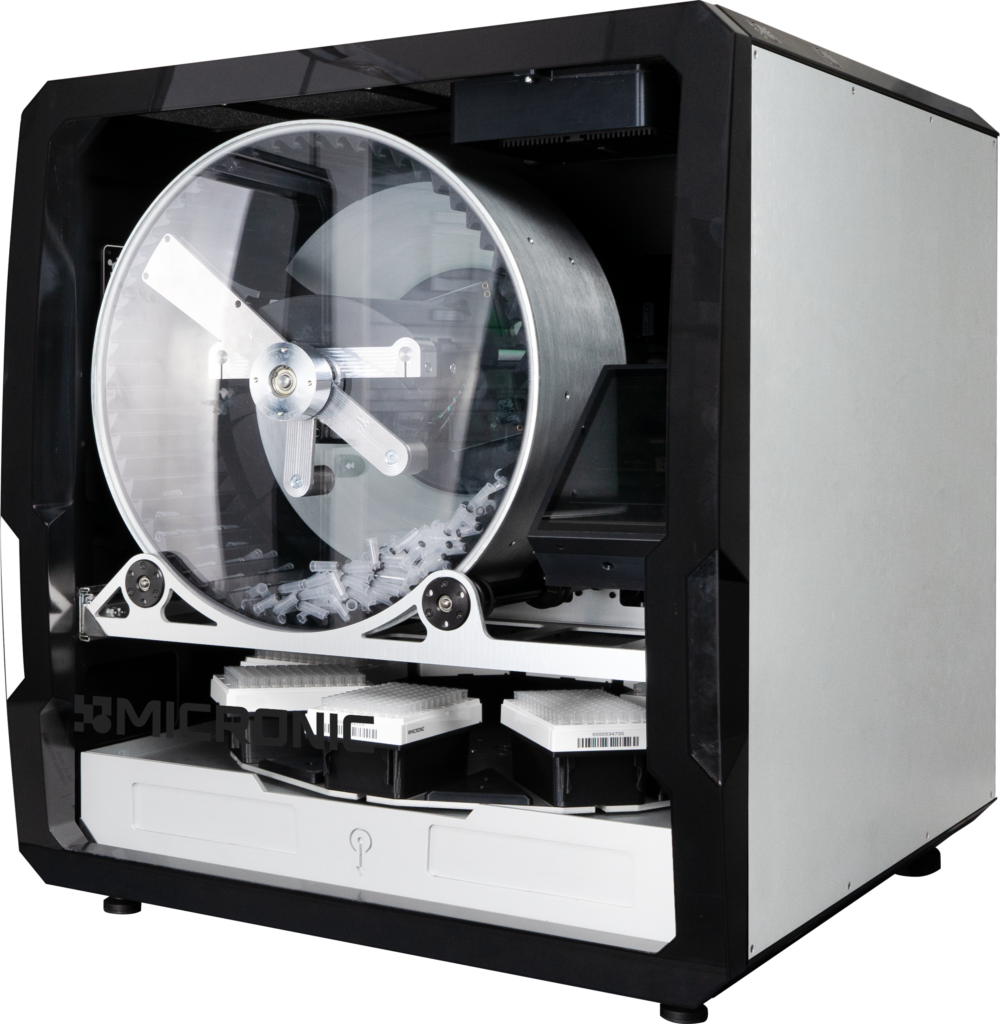

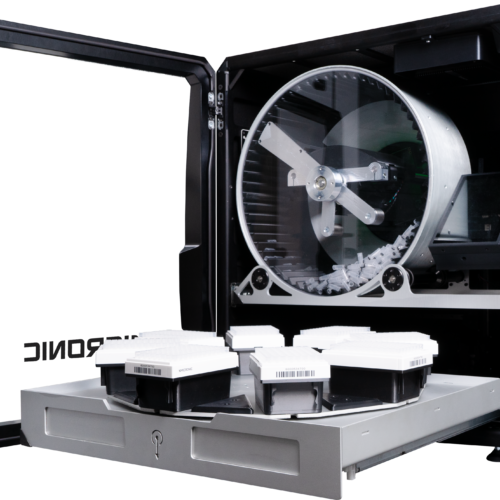

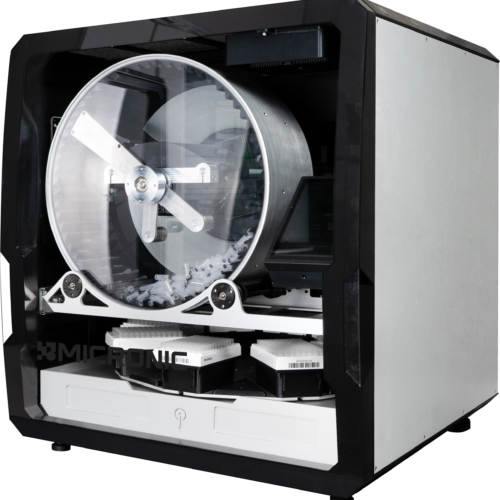

The Micronic Rack Filler LT500 is a compact, high-efficiency instrument designed to quickly fill 96-well format racks in ANSI/SLAS format with sample storage tubes using its innovative patented technology. This solution enables laboratories to reduce plastic waste by purchasing sample storage tubes in bulk and reusing their racks. It is compatible with Micronic tubes ranging from 0.75ml to 1.40ml, as well as tubes from other brands, offering versatile and sustainable sample tube handling.

Our solutions

Fully automated rack filling instrument

The Micronic Rack Filler LT500 automates the process of filling sample storage racks using advanced patented technology. This reliable system offers a fast, efficient, and eco-friendly solution for refilling 96-well ANSI/SLAS format racks with Micronic sample storage tubes.

With a drum capacity of over 2,000 tubes, it streamlines the process, eliminating constant supervision. Laboratories can automate a time-consuming task, freeing up time for critical activities. Setup takes under two minutes, ensuring minimal downtime and maximizing throughput. Compatible with most Micronic tubes, the Rack Filler LT500 is an ideal addition to labs already using Micronic products. The Rack Filler LT500 enables labs to reuse racks and purchase tubes in bulk, reducing plastic waste while maintaining high performance.

The system features a user-friendly interface, accessible to all lab technicians, and intuitive controls that promote quick learning. Its durable design ensures reliable operation in demanding lab environments.

features & benefits

Micronic Rack Filler LT500

Fast operation
Fills 8 racks in 20 minutes or 24 racks per hour
Drum capacity
A total of more than 2.000 tubes
Compatibility
Compatible with Micronic tubes from 0.75ml to 1.40ml and with tubes from other manufacturers
Save money
Sustainable solution to reuse storage racks and purchase tubes in bulk, making it cost-effective and reducing plastic waste
Easy-to-use
Easy-to-use graphical touch screen interface for labware selection
Safety
If a problem is detected, feedback will be provided through lighting and a display message for easy error handling
Specifications

Product information

Parameter Rack Filler LT500
Rack compatibility 96-well format Micronic racks (ANSI/SLAS standard)
Tube compatibility Micronic tubes 0.75ml, 0.80ml, 1.10ml and 1.40ml
Source rack capacity 8 racks
Cycle time 20 minutes
Parameter Rack Filler LT500

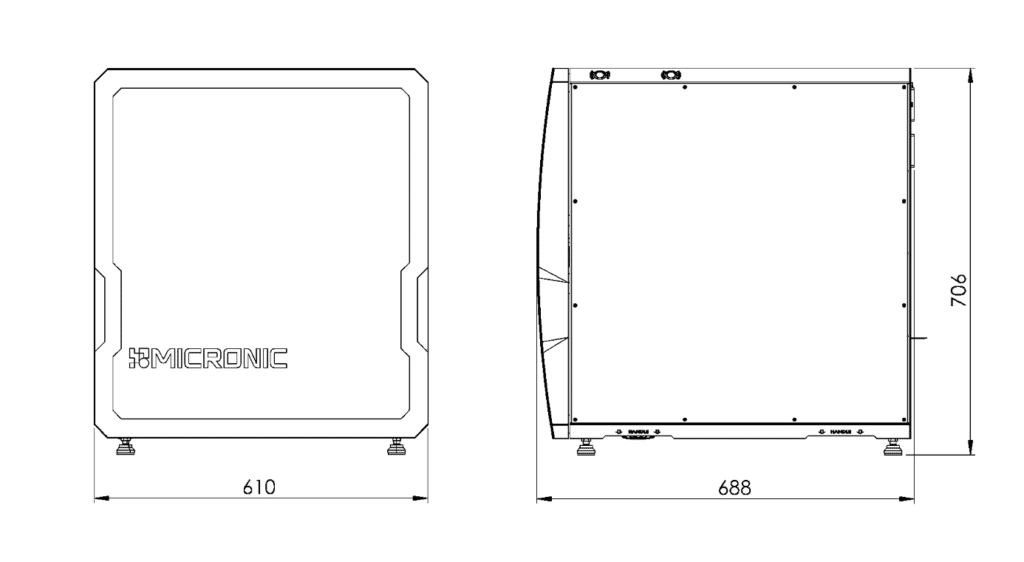

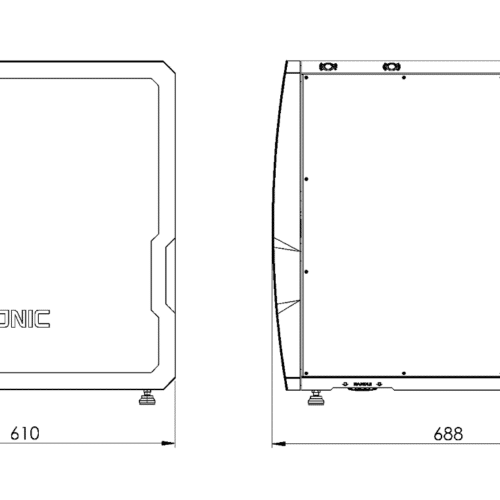

Dimensions 610 x 688 x 706 mm / 24.02 x 27.09 x 27.80 inch
Weight 60 kg / 132 lbs
Voltage 230 V
Testimonials

What our customers say

Using a unique tube coding system from Micronic, the Animal Sciences Group has been able to significantly improve the absolute traceability, throughput and long term storage integrity of labelled samples going through their laboratory.

Read full testimonial

“I chose Micronic because of the space saving 96-well rack format; more sample material could fit in the freezer compared to products from other companies. The screw cap also stays securely in place during long-term storage in -80°C."

Read full testimonial

“After a comprehensive evaluation of commercially available consumables we selected Micronic 0.75ml and 1.4ml tubes together with screw caps and Roborack storage racks to provide high integrity, long-term storage of our human blood, serum and plasma samples at –80°C."

Read full testimonial

Sampled is an American based company that gives laboratories the ability to outsource various services, like sample management, sample storage, multiomics, cellular services and kitting and logistics.

Read full testimonial

Rutgers University Cell & DNA Repository selected Micronic 0.75ml and 1.40ml tubes together with colored TPE caps to provide high integrity, long-term storage of samples at -80°C.

Read full testimonial
PhD candidate at LUMC Nienke van Rein chose Micronic because of the space saving 96-well rack format
Animal Sciences Group (NL)
Article numbers

Ordering information

MICRONIC RACK FILLER LT500

Article Number Description Unit Size
MP35520 Micronic Rack Filler LT500 1 unit
