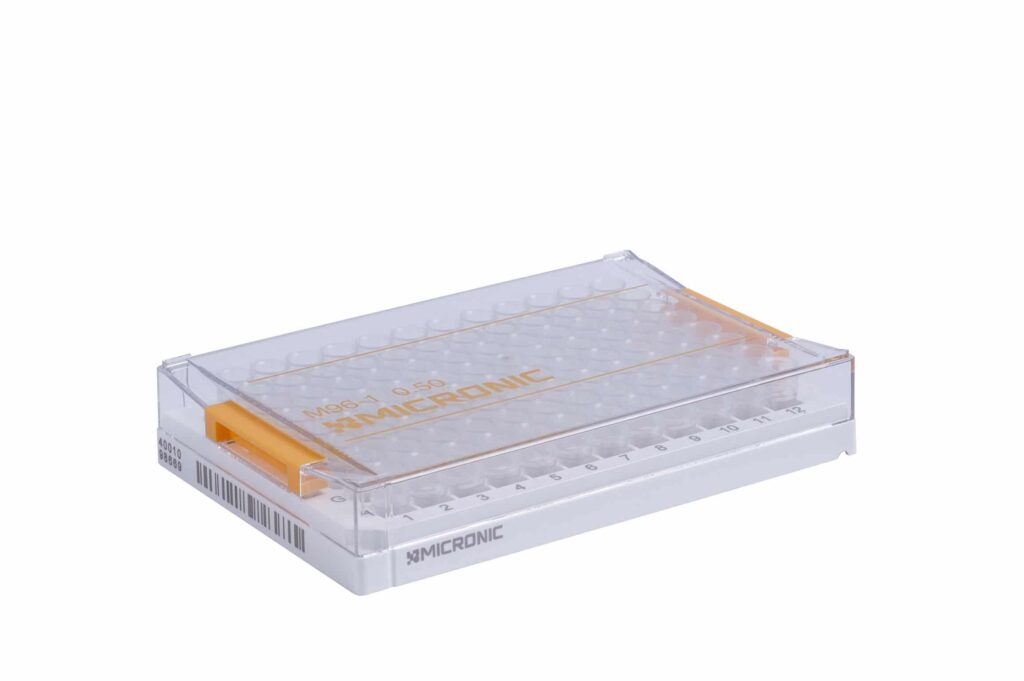

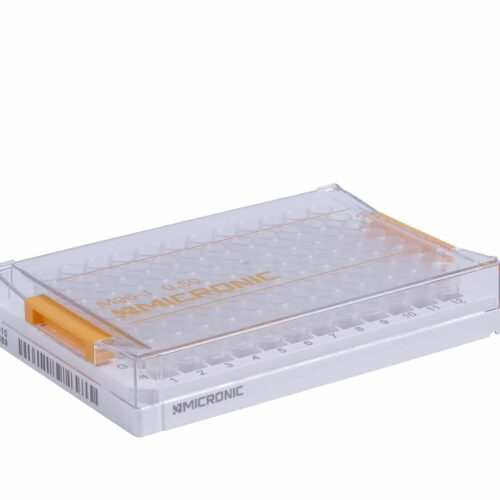

マイクロニック 96-1 ULTラック

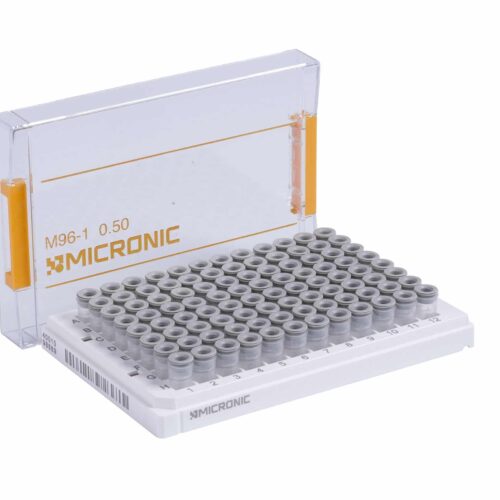

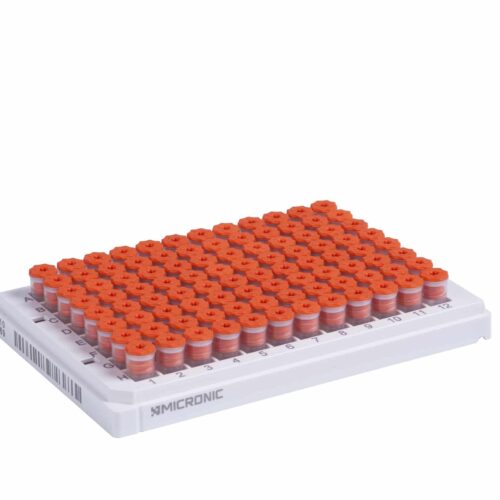

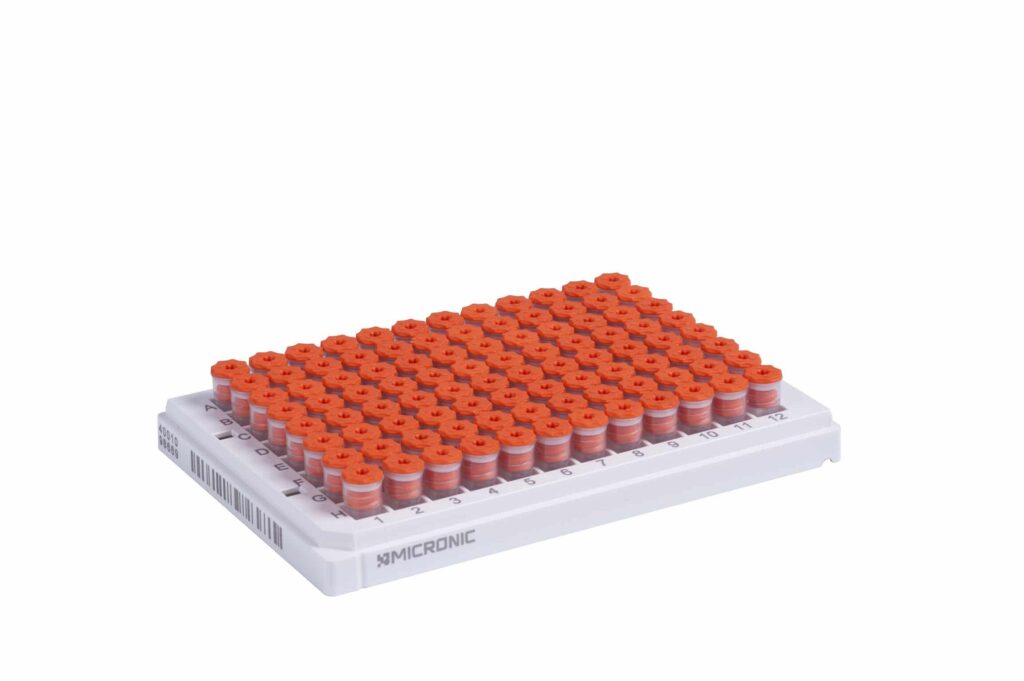

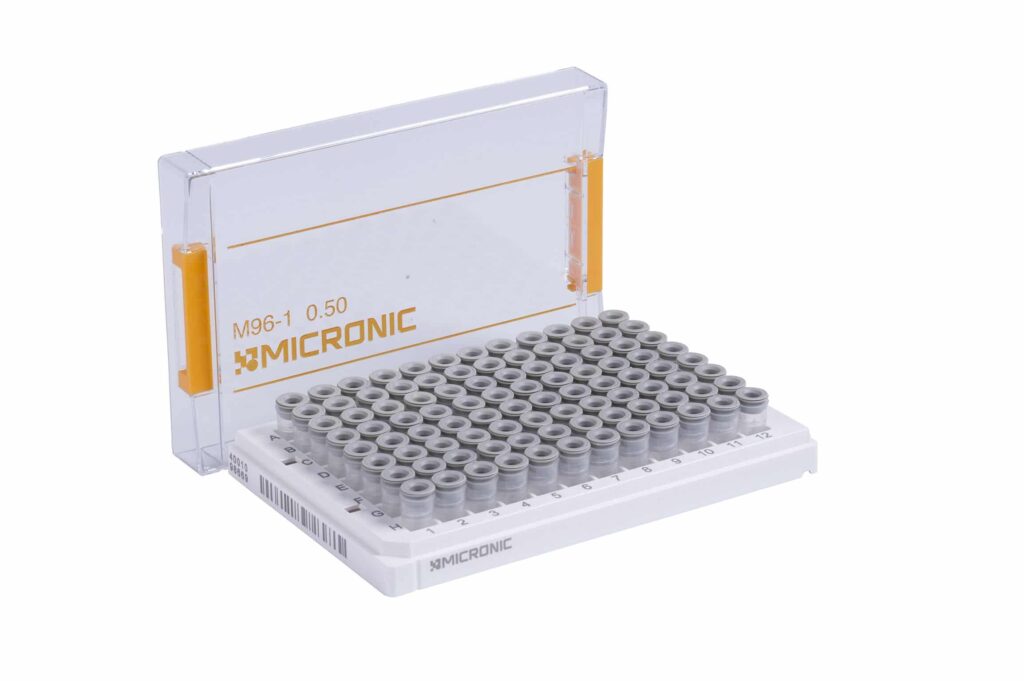

マイクロニック 96‑1ラックは、0.50 ml内ねじチューブ、0.30 ml外ねじチューブ、または0.40 ml外ねじチューブを各96本収納できます。ANSI/SLAS規格に基づいており、ラック側面にレーザー刻印された1Dバーコード、オプションでラック底部に2Dコードを備えています。さらに、チューブのキャッピング・デキャッピング時に回転を防止する『ツイストロック』機能を搭載しています。

当社のソリューション

オートメーション機器業界との共同開発

バイオレポジトリやその他の研究所施設では、サンプルの完全性を高め維持するためにラボ自動化が進む傾向があります。これは、チューブストレージラックが自動保管・ハンドリングシステムと互換性を持つよう設計される必要があることを意味します。マイクロニック ULT ラックは、ANSI/SLAS規格に準拠したサイズ設計で、オートメーション機器との互換性を確保しています。

他にもULT ラックにはオートメーションに最適な機能が多数搭載されています。これらの機能には、チューブのねじ締め・緩め時に回転を防止する優れたツイストロック設計、チューブの出し入れが容易な構造、最小限のノッチと閉じたサイドウォールによる完璧なラックの位置決め、カバー両端のロッカーを下方向に動かすだけで閉鎖できる独自の自動化対応カバーロックシステムが含まれます。側面の1Dラックバーコードと底部の2Dデータマトリックスコードはラックと一体化しており、サンプルの追跡・トレーシングを徹底できます。マイクロニック ULT ラックシリーズは、低温自動保管システムでのテストおよび運用実績があります。

特徴と利点

マイクロニック 96-1 ULTラック

ラック識別用ID

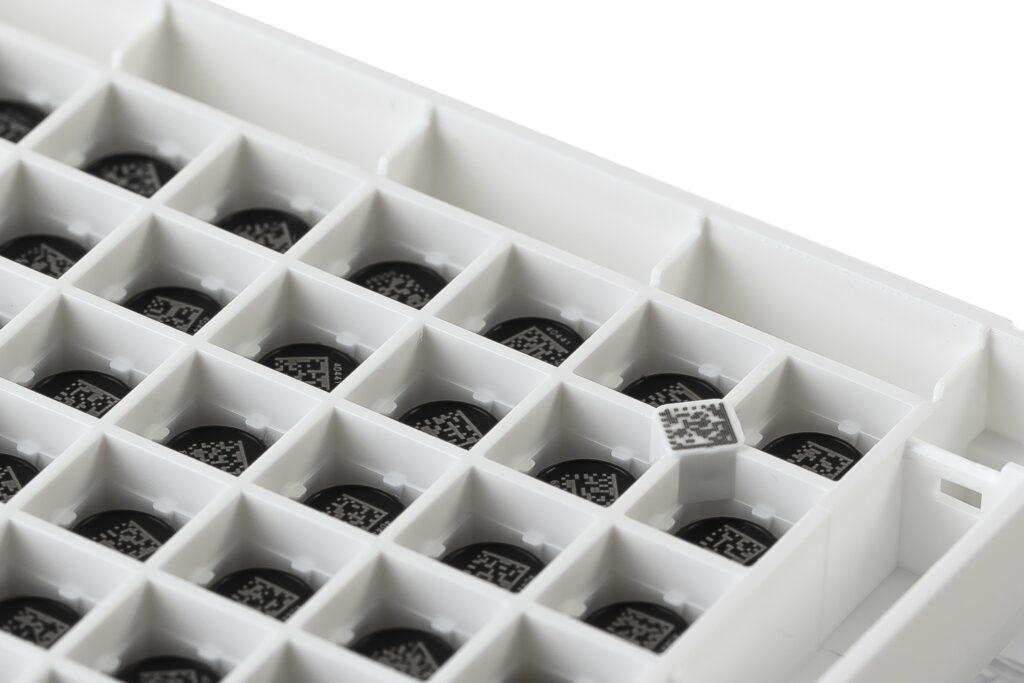

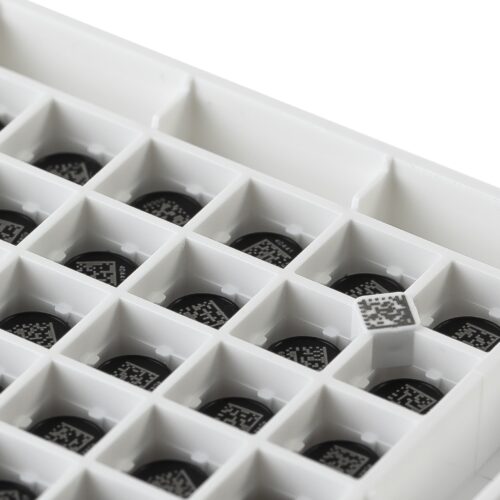

ラック上部にレーザー刻印による英数字コード、ラック側面に人が読み取れるコード付き1Dバーコード、ラック底部に2Dデータマトリックスコード
超低温
ポリカーボネート製で、低温環境下でも優れた特性を発揮します。
『アイスブレーカー』機構
超低温保存用の新ロック機構: 『アイスブレーカー』
互換性
主要なサンプル保管オートメーションシステム(–20°C、–80°C、さらにはそれ以下の温度帯)と互換性があります。
RNASE/DNASE/エンドトキシン
検出可能なRNaseおよびDNaseの汚染はなく、製造・包装されたラボウェアのエンドトキシンレベルは許容最小限(< 0.01 EU/ml)に抑えられています。
クラス7クリーンルーム
マイクロニックのラボウェアは、NEN-EN-ISO 14644-1 クラス7認証を取得したクリーンルーム環境で自社製造・組み立てされています。

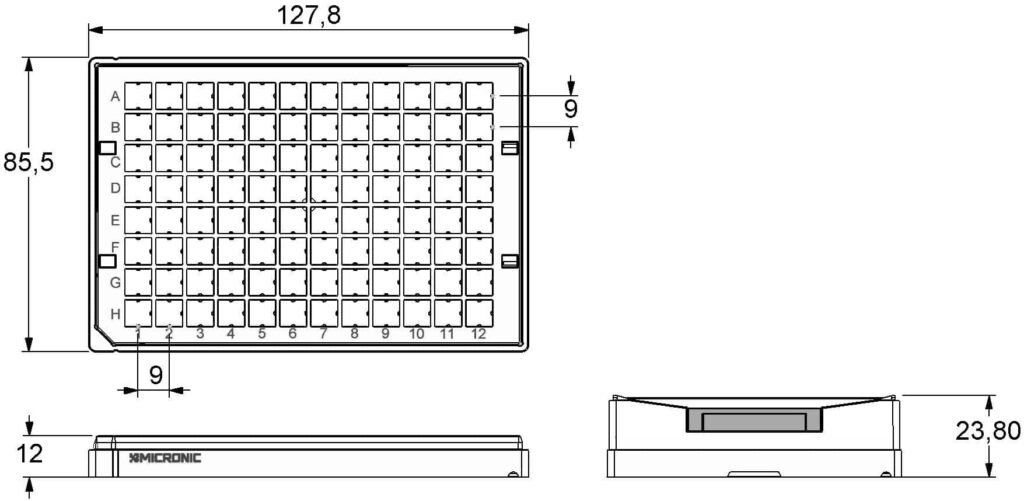

仕様

製品情報

項目 マイクロニック 96-1 ULTラック
素材 高純度PC

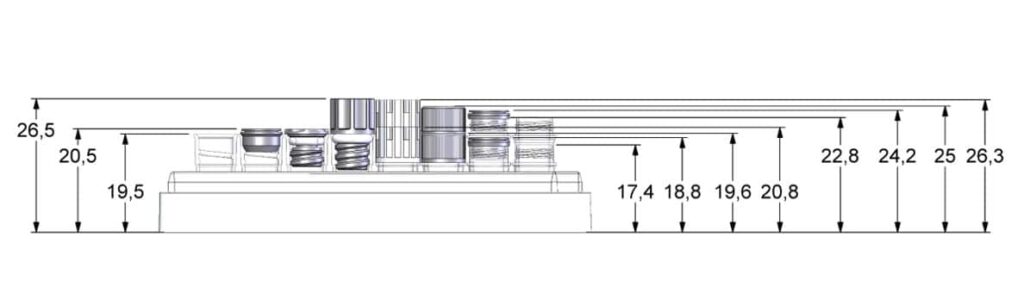

ラック高さ 12.0mm
ラック高さ(含カバー) 23.8mm
ラック長さ 127,8
ラック幅 85,5
化学耐性 ++/+
使用温度帯 液体窒素の気相から140°C
製品レビュー

お客様の声

"We are very happy with the tubes of Micronic, it is truly more efficient and space saving than we had in the past. Next to that, the fact that the tube positions are laser-etched in the rack itself is very helpful. We always know where the A1 tube is located."

Read full testimonial

“At the AMC location, years of positive experience with Micronic have shown that their products consistently meet high standards, ensuring smooth laboratory operations and dependable sample storage”

Read full testimonial

"We are very happy with the tubes of Micronic, it is truly more efficient and space saving than we had in the past. Next to that, the fact that the tube positions are laser-etched in the rack itself is very helpful. We always know where the A1 tube is located."

Read full testimonial

“The integration of Micronic’s systems within our LIMS has proven invaluable in supporting our diagnostic efforts. The robust track and trace capabilities ensure that each sample is accurately logged, reducing the risk of errors and facilitating quick retrieval of information"

Read full testimonial

"The flexibility of Micronic’s SBS-format tubes ensures smooth integration into LACDR’s automated workflows. Additionally, the high quality and purity of the Micronic tubes guarantee robust sample preparation, free from leachables or contamination, which is crucial for obtaining reliable and reproducible research results"

Read full testimonial
University Biobank Limburg (BE)
品番

発注用情報

Article Number Description Unit Size Case Size
MP51201 Micronic 96-1 Rack with low cover for 0.50ml tubes capped with Push Caps or Low Profile Screw Caps (empty) (barcoded A1-H1 side) 10 racks 4
MP51200 Micronic 96-1 Rack with low cover for 0.30ml tubes capped with Screw Caps (empty) (Barcoded A1-H1 side) 10 racks 4
MP51202 Micronic 96-1 Rack with high cover for 0.40ml tubes capped with Screw Caps (empty) (Barcoded A1-H1 side) 10 racks 4
Article Number Description Unit size Case Size
MP51220 Micronic 96-1-DM Rack with low cover for 0.30ml tubes capped with Screw Caps (empty) (Barcoded A1-H1 side) 10 racks 4
MP51221 Micronic 96-1-DM Rack with high cover for 0.40ml tubes capped with Screw Caps (empty) (Barcoded A1-H1 side) 10 racks 4
MP51222 Micronic 96-1-DM Rack with low cover for 0.50ml tubes capped with Push Caps or Low Profile Screw Caps (empty) (Barcoded A1-H1 side) 10 racks 4
Article Number Description Unit Size Case Size
MP32147 0.30ml Non coded Screw Cap tubes with External Thread V-bottom in Micronic 96-1 Rack with low cover (Barcoded A1-H1 side) 10 racks 4
MP32148 0.30ml Non coded Screw Cap tubes with External Thread V-bottom in Micronic 96-1-DM Rack with low cover (Barcoded A1-H1 side) 10 racks 4
MP52702 0.30ml 2D Data-Matrix coded Screw Cap tubes with External Thread V-bottom in Micronic 96-1 Rack with low cover (Barcoded A1-H1 side) 10 racks 4
MP52736 0.30ml 2D Data-Matrix coded Screw Cap tubes with External Thread V-bottom in Micronic 96-1-DM Rack with low cover (Barcoded A1-H1 side) 10 racks 4
MP52702-G71 0.30ml 2D Data-Matrix coded Screw Cap tubes with External Thread V-bottom precapped with Grey Screw Caps IG in Micronic 96-1 Rack with low cover (Barcoded A1-H1 side) 10 racks 4
Article Number Description Unit Size Case Size
MP52718 0.40ml 2D Data-Matrix coded Screw Cap tubes with External Thread V-bottom in Micronic 96-1 Rack with high cover (Barcoded A1-H1 side) 10 racks 4
MP52737 0.40ml 2D Data-Matrix coded Screw Cap tubes with External Thread V-bottom in Micronic 96-1-DM Rack with high cover (Barcoded A1-H1 side) 10 racks 4
MP52718-G71 0.40ml 2D Data-Matrix coded Screw Cap tubes with External Thread V-bottom precapped with Grey Screw Cap IG in Micronic 96-1 Rack with high cover (Barcoded A1-H1 side) 10 racks 4
Article Number Description Unit Size Case Size
MP32100 0.50ml Non coded Screw Cap tubes V-bottom in Micronic 96-1 Rack with low cover (Barcoded A1-H1 side) 10 racks 4
MP32102 0.50ml Non coded Screw Cap tubes with Internal Thread V-bottom in Micronic 96-1-DM Rack with low cover (Barcoded A1-H1 side) 10 racks 4
MP42100 0.50ml Alphanumeric coded Screw Cap tubes V-bottom in Micronic 96-1 Rack with low cover (Barcoded A1-H1 side) 10 racks 4
MP42102 0.50ml Alphanumeric coded Screw Cap tubes with Internal Thread V-bottom in Micronic 96-1-DM Rack with low cover (Barcoded A1-H1 side) 10 racks 4
MP52500 0.50ml 2D Data-Matrix coded Screw Cap tubes V-bottom in Micronic 96-1 Rack with low cover (Barcoded A1-H1 side) 10 racks 4
Article Number Description Unit Size Case Size
MP32100-X01 0.50ml Non coded Screw Cap tubes V-bottom precapped with TPE Cap Natural in Micronic 96-1 Rack with low cover (Barcoded A1-H1 side) 10 racks 4
MP42100-X01 0.50ml Alphanumeric coded Screw Cap tubes V-bottom precapped with TPE Cap Natural in Micronic 96-1 Rack with low cover (Barcoded A1-H1 side) 10 racks 4
MP52500-X01 0.50ml 2D Data-Matrix coded Screw Cap tubes V-bottom precapped with TPE Cap Natural in Micronic 96-1 Rack with low cover (Barcoded A1-H1 side) 10 racks 4
