サンプル保管チューブ

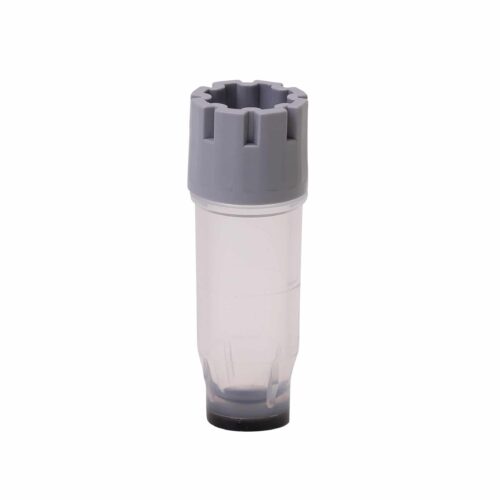

0.40ml 外ねじチューブ

0.40mLチューブは、少量液体サンプルの効率的な保存を可能にします。厚みのあるチューブ壁により、堅牢なデザインと超低温保存に適した優れた特性を備えています。2Dデータマトリックスコードはチューブ底面にレーザーエッチングされており、消えたり剥がれたりすることがないため、確実なトレーサビリティを保証します。

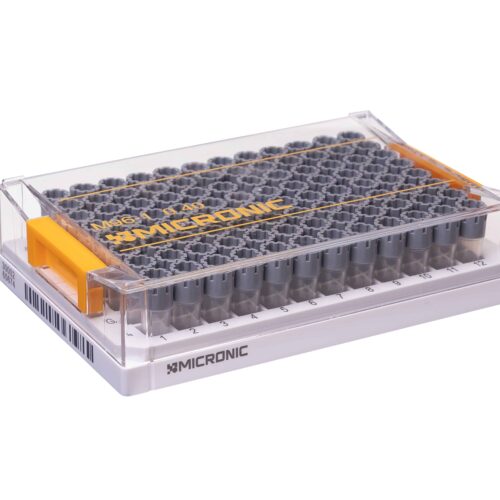

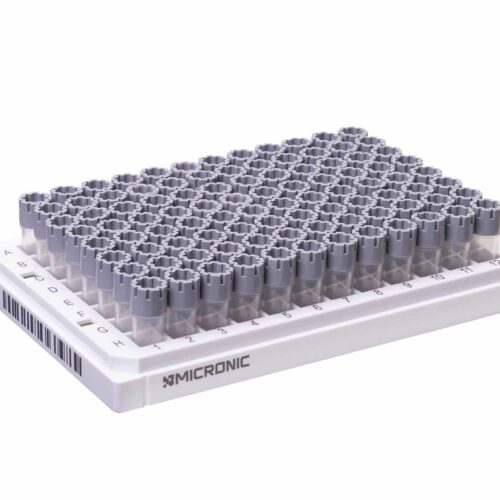

0.40mLチューブは、オートメーション対応のANSI/SLASラックフォーマットに基づく1Dバーコード付きMicronic 96-1ラックに対応しています。また、このチューブは自動分注機やオートメーションストレージシステムとの互換性もあります。

当社のソリューション

ラボウェアの追加オプション

ガンマ線照射処理:マイクロニック製品はガンマ線照射済みで提供可能です。ただし、ガンマ線照射のみではRNase、DNase、パイロジェン(エンドトキシン)が検出限界未満であることは保証されません。そのため、クラス7クリーンルームでの製造が不可欠な要件となります。

EOG処理:マイクロニック製品は酸化エチレンガス処理済みで提供可能です。EOG処理により、消耗品製品は外部の認証機関によってDNAフリーと認定されており、法医学サンプルの長期かつ高完全性な保存に最適です。DNAフリー製品は専用のTyvekパッケージで提供されます。

プレキャップ:すべてのマイクロニックチューブはキャップ装着済み(プレキャップ)でご提供可能です。キャップは12色からお選びいただけます:グレー、ホワイト、イエロー、オレンジ、レッド、ピンク、パープル、ブルー、ライトブルー、ライトグリーン、グリーン、ブラック。

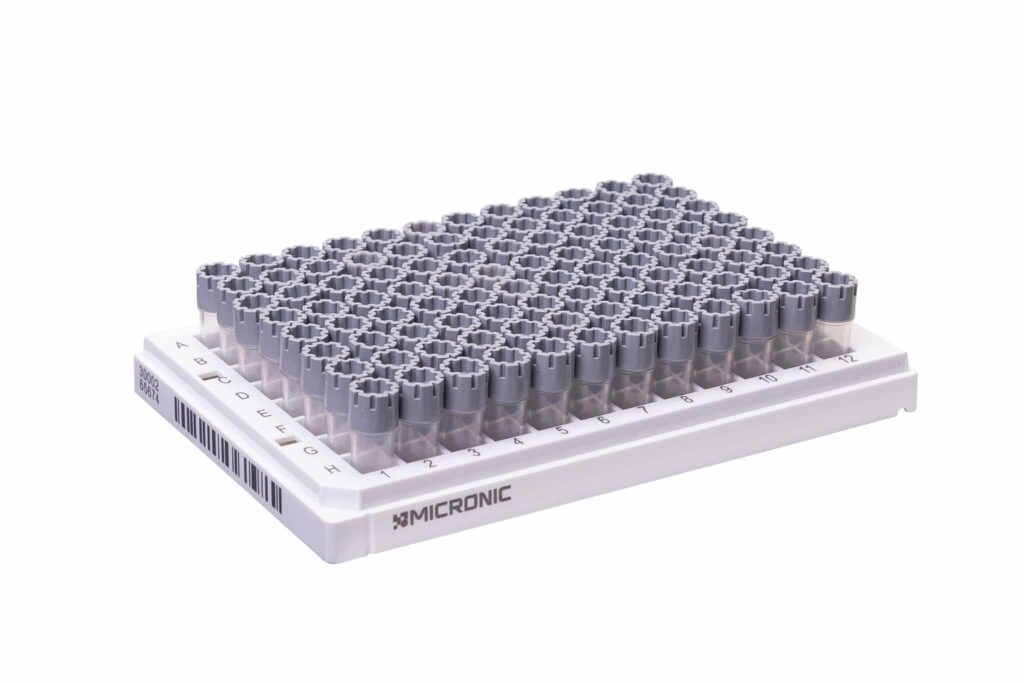

プレラック:すべてのマイクロニックチューブはラック入り(プレラック)でご提供可能です。ラックは国際的に認知されたANSI / SLAS規格に準拠しており、レーザーエッチング1Dラックバーコード付きです。

特長と利点

0.30ml 外ねじチューブ

最適なシール性
3条ねじ構造が、最適なシール性を担保します。
超低温
厚みのあるチューブ壁により、耐久性が高く、超低温保存に適しています。
全数検査
2Dコードは、その固有性と可読性を全数検査しています。
RNASE/DNASE/エンドトキシン
検出可能なRNaseおよびDNaseの汚染はなく、製造・包装されたラボウェアのエンドトキシンレベルは許容最小限(< 0.01 EU/ml)に抑えられています。
クラス7クリーンルーム
マイクロニックのラボウェアは、NEN-EN-ISO 14644-1 クラス7認証を取得したクリーンルーム環境で自社製造・組み立てされています。
オプション対応
・ガンマ線照射またはEOG処理
・スクリューキャップ装着
・カスタム2Dチューブコード
・カスタム1Dラックバーコード

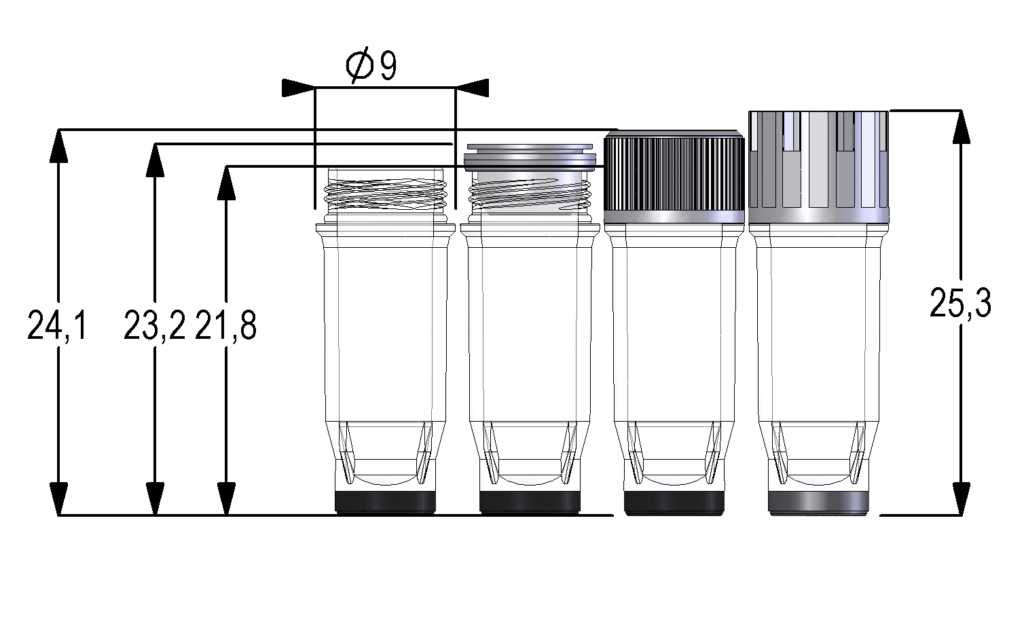

仕様

製品情報

項目 0.40ml 外ねじチューブ
底形状 Vr底
素材 医療用PP
適正容量 (+21ºC) 0.40ml (スクリューキャップ) / 0.38ml (プッシュキャップ)

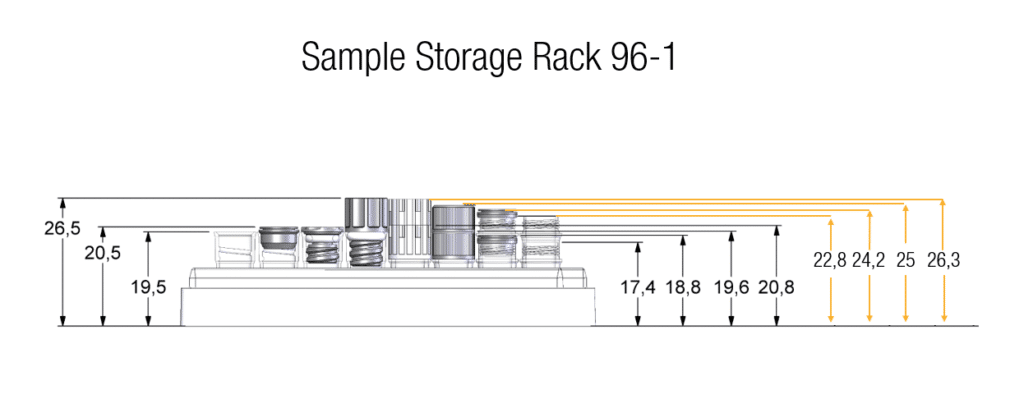

チューブ高さ(含ラック) 22.5mm (カバーは除く)
使用温度帯 液体窒素の気相から100°C(キャップにより異なる)
製品レビュー

お客様の声

Sampled is an American based company that gives laboratories the ability to outsource various services, like sample management, sample storage, multiomics, cellular services and kitting and logistics.

Read full testimonial

“The integration of Micronic’s systems within our LIMS has proven invaluable in supporting our diagnostic efforts. The robust track and trace capabilities ensure that each sample is accurately logged, reducing the risk of errors and facilitating quick retrieval of information"

Read full testimonial

"We are very happy with the tubes of Micronic, it is truly more efficient and space saving than we had in the past. Next to that, the fact that the tube positions are laser-etched in the rack itself is very helpful. We always know where the A1 tube is located."

Read full testimonial

"We are very happy with the tubes of Micronic, it is truly more efficient and space saving than we had in the past. Next to that, the fact that the tube positions are laser-etched in the rack itself is very helpful. We always know where the A1 tube is located."

Read full testimonial

“At the AMC location, years of positive experience with Micronic have shown that their products consistently meet high standards, ensuring smooth laboratory operations and dependable sample storage”

Read full testimonial
Sampled (USA)
品番

発注用の情報

Article Number Description Unit Size Case Size
MP52716 0.40ml 2D Data-Matrix coded Screw Cap tubes with External Thread V-bottom Bulk 960 tubes 5
MP52718 0.40ml 2D Data-Matrix coded Screw Cap tubes with External Thread V-bottom in Micronic 96-1 Rack with high cover (Barcoded A1-H1 side) 10 racks 4
MP52716-G71 0.40ml 2D Data-Matrix coded Screw Cap tubes with External Thread V-bottom precapped with Grey Screw Cap IG Bulk 960 tubes 5
MP52718-G71 0.40ml 2D Data-Matrix coded Screw Cap tubes with External Thread V-bottom precapped with Grey Screw Cap IG in Micronic 96-1 Rack with high cover (Barcoded A1-H1 side) 10 racks 4
Article Number Description Unit Size Case Size
MP53870 Screw Caps IG for externally threaded tubes in 96-well format - Transparent 960 caps 1
MP53871 Screw Caps IG for externally threaded tubes in 96-well format - Grey 960 caps 1
MP53872 Screw Caps IG for externally threaded tubes in 96-well format - White 960 caps 1
MP53873 Screw Caps IG for externally threaded tubes in 96-well format - Yellow 960 caps 1
MP53874 Screw Caps IG for externally threaded tubes in 96-well format - Orange 960 caps 1
MP53875 Screw Caps IG for externally threaded tubes in 96-well format - Red 960 caps 1
MP53876 Screw Caps IG for externally threaded tubes in 96-well format - Pink 960 caps 1
MP53877 Screw Caps IG for externally threaded tubes in 96-well format - Purple 960 caps 1
MP53878 Screw Caps IG for externally threaded tubes in 96-well format - Blue 960 caps 1
MP53879 Screw Caps IG for externally threaded tubes in 96-well format - Light Blue 960 caps 1
MP53880 Screw Caps IG for externally threaded tubes in 96-well format - Light Green 960 caps 1
MP53881 Screw Caps IG for externally threaded tubes in 96-well format - Green 960 caps 1
MP53882 Screw Caps IG for externally threaded tubes in 96-well format - Black 960 caps 1
MP53820 Screw Caps for externally threaded tubes in 96-well format - Grey 960 caps 1
MP53804 Screw Caps for externally threaded tubes in 96-well format - Yellow 960 caps 1
MP53800 Screw Caps for externally threaded tubes in 96-well format - Orange 960 caps 1
MP53802 Screw Caps for externally threaded tubes in 96-well format - Red 960 caps 1
MP53823 Screw Caps for externally threaded tubes in 96-well format - Light Green 960 caps 1
MP53803 Screw Caps for externally threaded tubes in 96-well format - Blue 960 caps 1
MP53801 Screw Caps for externally threaded tubes in 96-well format - White 960 caps 1
MP53821 Screw Caps for externally threaded tubes in 96-well format - Pink 960 caps 1
MP53809 Screw Caps for externally threaded tubes in 96-well format - Purple 960 caps 1
MP53806 Screw Caps for externally threaded tubes in 96-well format - Light Blue 960 caps 1
MP53805 Screw Caps for externally threaded tubes in 96-well format - Green 960 caps 1
MP53822 Screw Caps for externally threaded tubes in 96-well format - Black 960 caps 1
