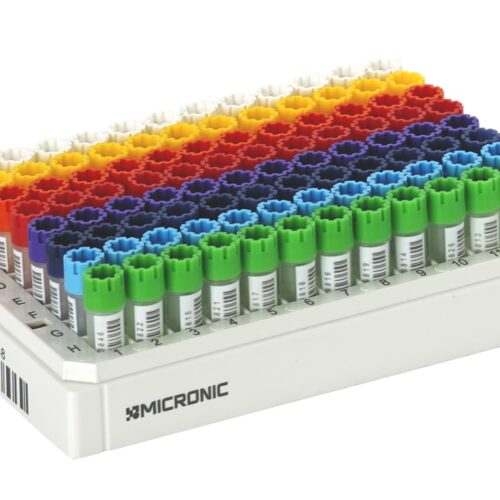

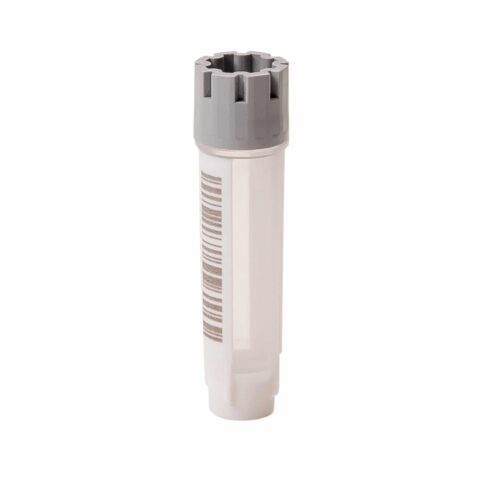

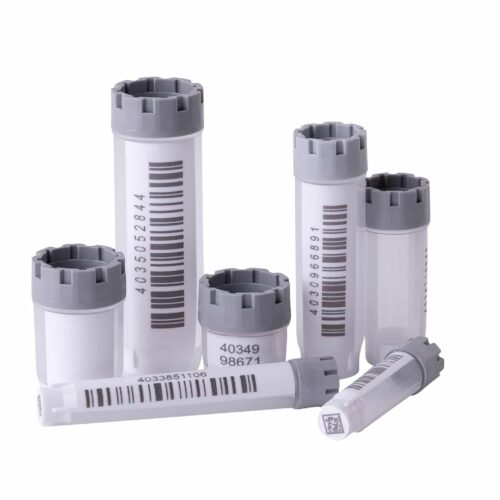

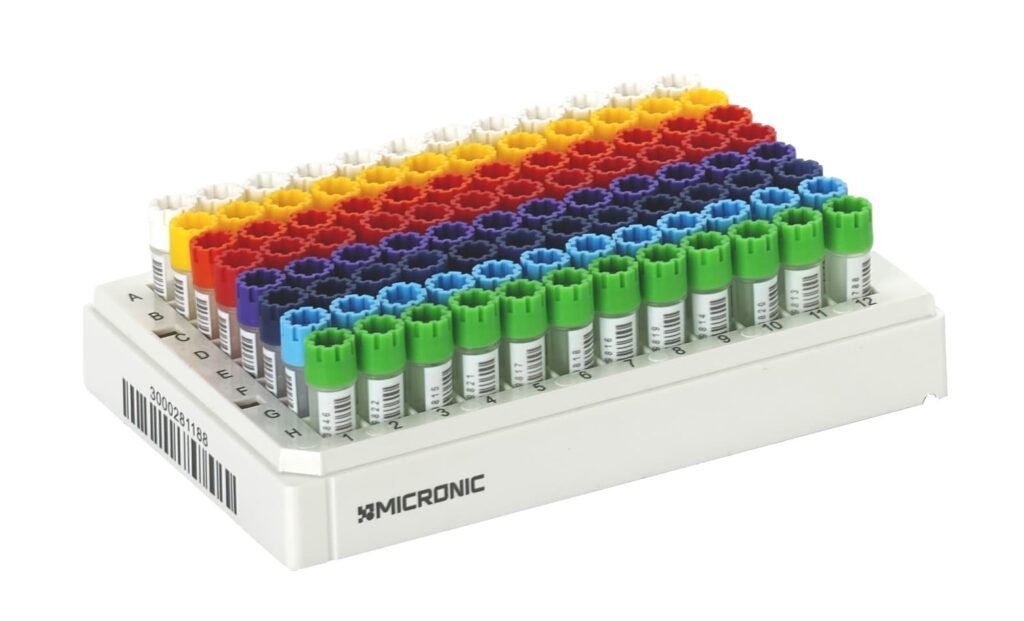

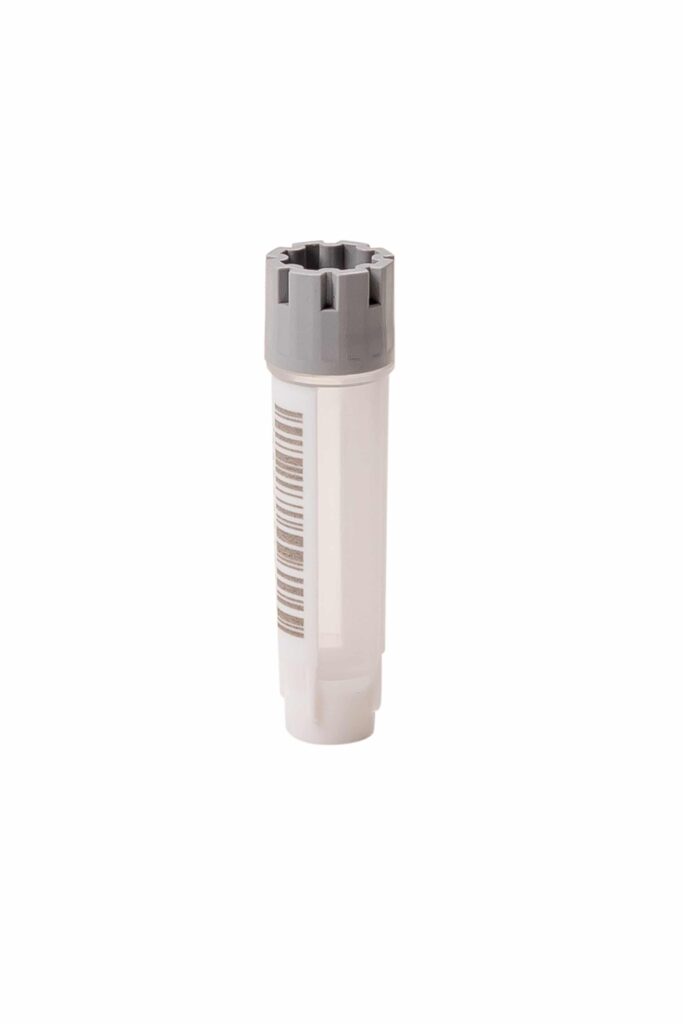

マイクロニックの外ねじハイブリッドチューブは、オートメーションと目視によるサンプル識別を独自に組み合わせた設計です。 視認可能なコードにより、研究者は保管・取り出し作業やフィールドリサーチの際に、サンプルを素早く識別し、コードを確認できます。チューブ壁の透明部分は、サンプルの状態を目視で簡単に確認するのに役立ちます。1Dおよび2Dバーコードはオートメーションシステムでの読み取りが可能です。さらに、チューブ底面のコード周囲を高くすることで、2Dデータマトリックスコードを偶発的な傷から保護します。
独自の射出成形技術により、白色の底面および側面は透明なチューブ本体から分離することがありません。また、高コントラストの1Dコード、2Dコード、および人が読み取れるコードは、白色のコードエリアに永久的にレーザー刻印されており、消えたり剥がれたりすることはありません。三条ねじを採用したハイブリッドチューブは、長期保存や超低温でのサンプル保管に適した優れた密閉性を提供します。また、スクリューキャップの過剰な締め付けを防ぐため、手動・機械いずれの場合でもシール時にロックがかかる設計となっています。キャップは9色のカラーバリエーションから選択可能です。
項目 | 0.75ml 外ねじハイブリッドチューブ |
---|---|
内底形状 | V底 |
素材 | 医療用PP |
適正容量 (+21ºC) | 0.62ml (スクリューキャップ) / 0.57ml (プッシュキャップ) |

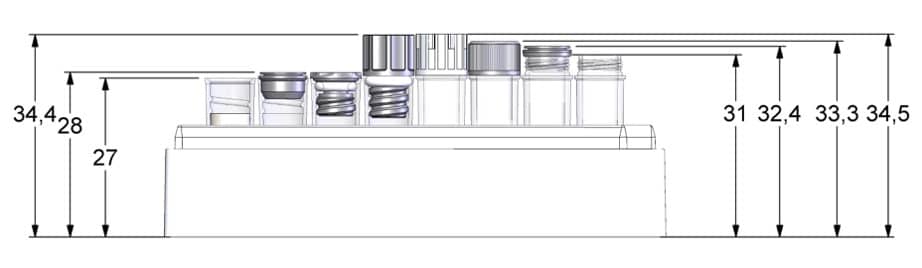

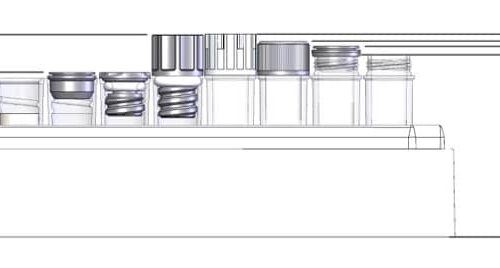

チューブ高さ(含ラック) | 31.0mm (カバーは除く) |
使用温度帯 | 液体窒素の気相から100°C |
Article Number | Description | Unit Size | Case Size |
---|---|---|---|
W00 = White side walls without coding | |||
W1D = White side walls with a 1D barcode & human readable code on one side wall | |||
MP52755 | 0.75ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W1D V-bottom Bulk | 960 tubes | 4 |
MP52757 | 0.75ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W1D V-bottom in Micronic 96-2 Rack with high cover (Barcoded A1-H1 side) | 10 racks | 4 |
MP52762 | 0.75ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W00 V-bottom Bulk | 960 tubes | 4 |
MP52763 | 0.75ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W00 V-bottom in Micronic 96-2 Rack with high cover (Barcoded A1-H1 side) | 10 racks | 4 |
MP52755-Y20 | 0.75ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W1D V-bottom precapped with Grey Screw Caps Bulk | 960 tubes | 4 |
MP52757-Y20 | 0.75ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W1D V-bottom precapped with Grey Screw Caps in Micronic 96-2 Rack with high cover (Barcoded A1-H1 side) | 10 racks | 4 |
MP52762-Y20 | 0.75ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W00 V-bottom precapped with Grey Screw Caps Bulk | 960 tubes | 4 |
MP52763-Y20 | 0.75ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W00 V-bottom precapped with Grey Screw Caps in Micronic 96-2 Rack with high cover (Barcoded A1-H1 side) | 10 racks | 4 |
Article Number | Description | Unit Size | Case Size |
---|---|---|---|
MP53825 | Screw Caps for externally threaded tubes in 96-well format - Transparent | ||
MP53820 | Screw Caps for externally threaded tubes in 96-well format - Grey | 960 caps | 1 |
MP53801 | Screw Caps for externally threaded tubes in 96-well format - White | 960 caps | 1 |
MP53804 | Screw Caps for externally threaded tubes in 96-well format - Yellow | 960 caps | 1 |
MP53800 | Screw Caps for externally threaded tubes in 96-well format - Orange | 960 caps | 1 |
MP53802 | Screw Caps for externally threaded tubes in 96-well format - Red | 960 caps | 1 |
MP53821 | Screw Caps for externally threaded tubes in 96-well format - Pink | 960 caps | 1 |
MP53809 | Screw Caps for externally threaded tubes in 96-well format - Purple | 960 caps | 1 |
MP53803 | Screw Caps for externally threaded tubes in 96-well format - Blue | 960 caps | 1 |
MP53806 | Screw Caps for externally threaded tubes in 96-well format - Light Blue | 960 caps | 1 |
MP53823 | Screw Caps for externally threaded tubes in 96-well format - Light Green | 960 caps | 1 |
MP53805 | Screw Caps for externally threaded tubes in 96-well format - Green | 960 caps | 1 |
MP53822 | Screw Caps for externally threaded tubes in 96-well format - Black | 960 caps | 1 |
