サンプル保管チューブ

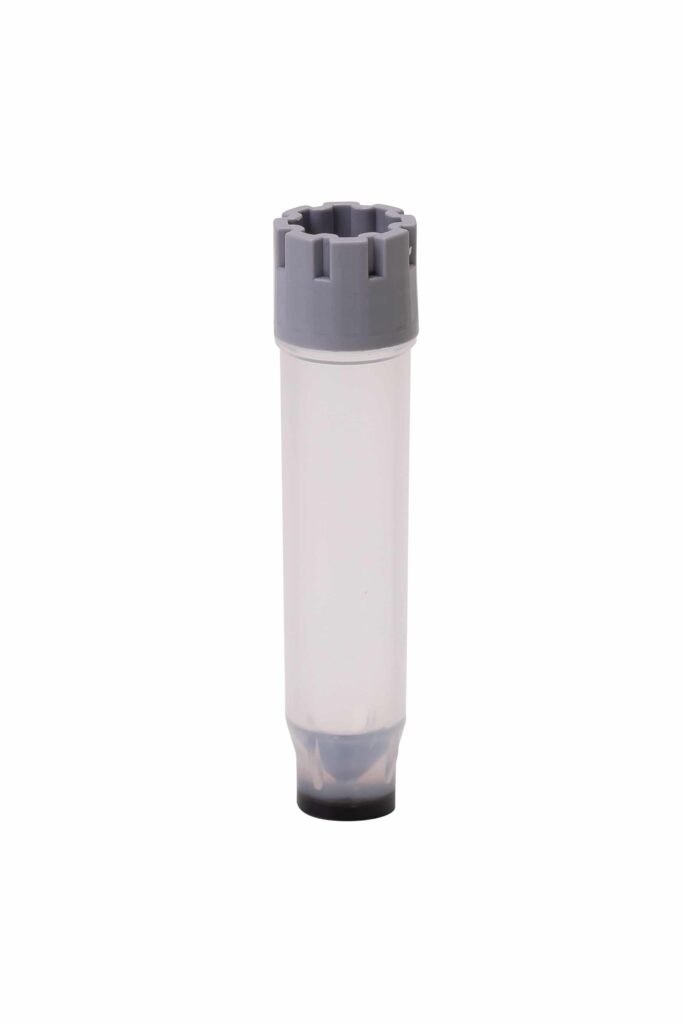

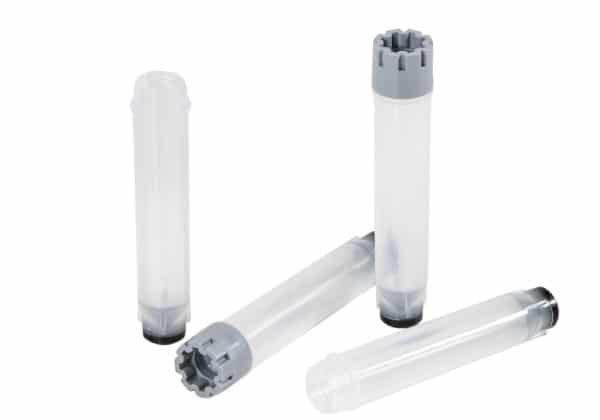

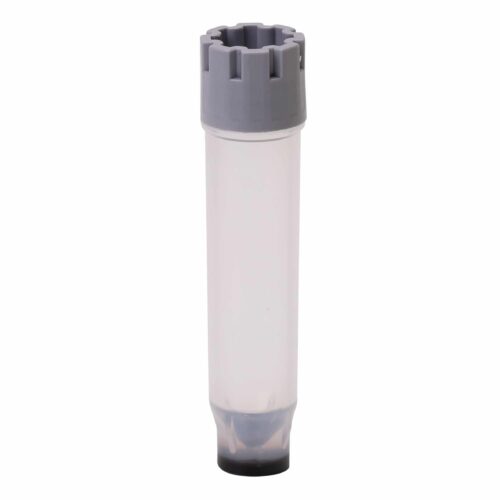

0.80ml 外ねじチューブ

0.80mLチューブは、96ウェルフォーマットにおいて市場の同等製品と比較し、最適な容積対高さ比を実現します。外ねじチューブを使用することで、サンプルがねじ部分に接触する可能性を排除し、交差汚染のリスクを最小限に抑えながら、サンプルの完全性を向上させます。 また、同じ保管スペース内でより多くのサンプルを保持できるため、保管効率を最大化できます。0.80mLチューブは三条ねじを採用し、優れた密閉性を確保することで、長期サンプル保存に適しています。 また、厚みのあるチューブ壁により、堅牢なデザインと超低温保存に適した優れた特性を備えています。チューブ底面のコード周囲を高くすることで、2Dコードを偶発的な傷から保護し、確実なトレーサビリティを維持します。

当社のソリューション

2Dデータマトリックスチューブ

マイクロニックの2Dデータマトリックスコード付きチューブおよびコードリーダーは、世界中の研究者により使用され、サンプル保管プロセスにおける貴重なサンプルのトレーサビリティを保証しています。各チューブに刻印されたユニークな2Dコードをスキャンすることで、サンプルの識別、ラック内の位置、フリーザー内でのラックの位置およびフリーザー本体を正確に追跡できます。長期にわたる確実なサンプル識別を提供するだけでなく、マイクロニックの高品質なラボウェアは、超低温環境においてもサンプルの完全性を維持し続けます。

マイクロニックは、幅広い種類の2Dデータマトリックスコード付きチューブを提供しています。これらのチューブは、クラス7認証クリーンルームで製造され、超高純度グレードのポリプロピレンを使用しています。そのため、DMSO、メタノール、ジクロロメタンなどの多くの有機溶媒に耐性があり、オートクレーブ処理やガンマ線照射を行っても性能を損なうことはありません。さらに、業界最高水準の厳格な製造公差に基づいて生産されており、チューブ間の一貫性が保たれることで、オートメーションシステムとの組み合わせによる運用効率の最大化を実現します。

2Dコード付きチューブの導入を検討していますか?
個別に購入するよりもお得なスターターパックをぜひご覧ください!

特長と利点

0.80ml 外ねじチューブ

最適なシール性
3条ねじ構造が、最適なシール性を担保します。
超低温
厚みのあるチューブ壁により、耐久性が高く、超低温保存に適しています。
全数検査
2Dコードは、その固有性と可読性を全数検査しています。
RNASE/DNASE/エンドトキシン
検出可能なRNaseおよびDNaseの汚染はなく、製造・包装されたラボウェアのエンドトキシンレベルは許容最小限(< 0.01 EU/ml)に抑えられています。
クラス7クリーンルーム
マイクロニックのラボウェアは、NEN-EN-ISO 14644-1 クラス7認証を取得したクリーンルーム環境で自社製造・組み立てされています。
オプション対応
・ガンマ線照射またはEOG処理
・スクリューキャップ装着
・カスタム2Dチューブコード
・カスタム1Dラックバーコード
仕様

製品情報

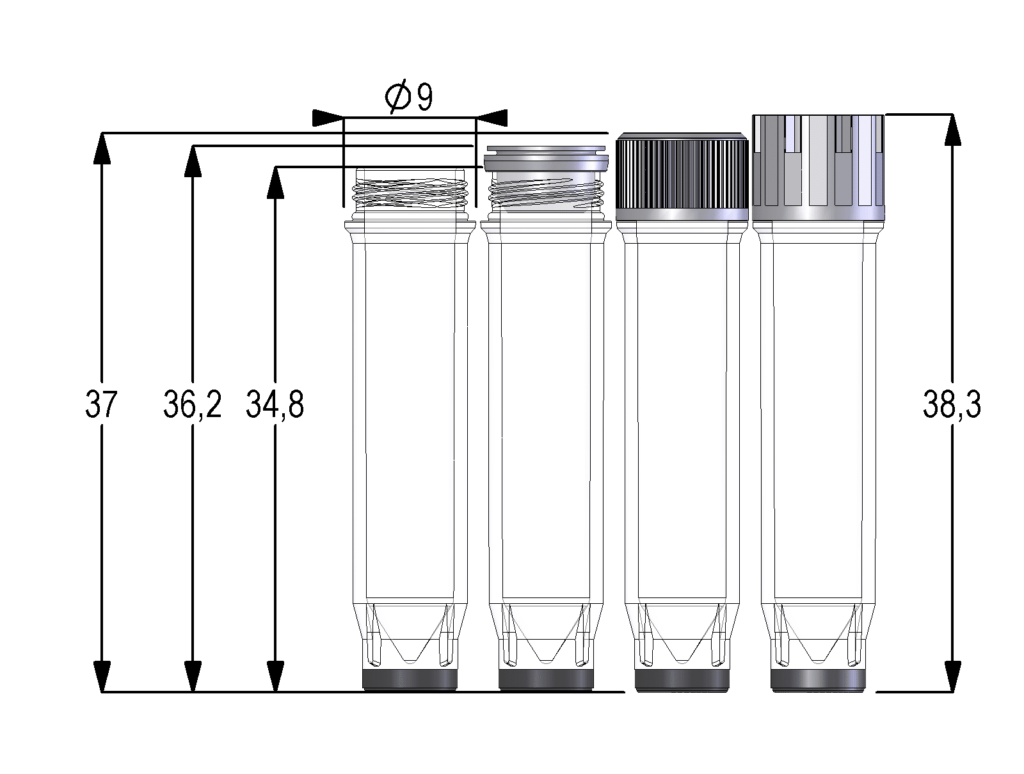

項目 0.80ml 外ねじチューブ
底形状 V底
素材 医療用PP
適正容量 (+21ºC) 0.75ml (スクリューキャップ) / 0.68ml (プッシュキャップ)

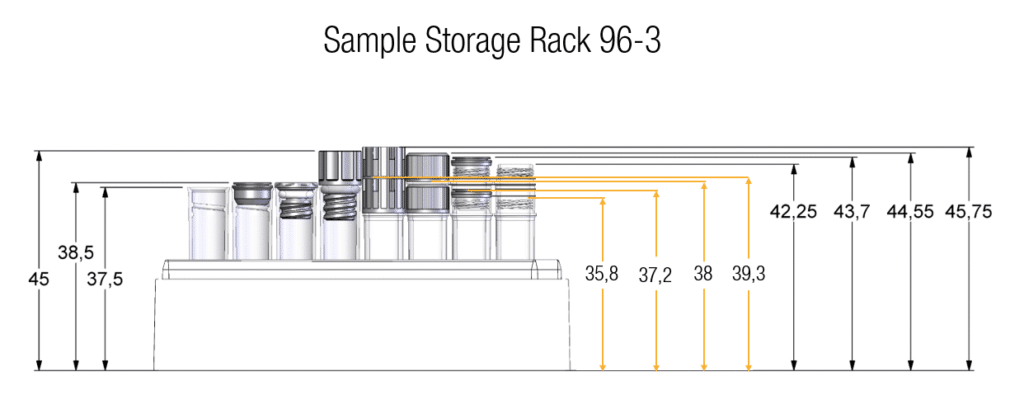

チューブ高さ(含ラック) 35.5mm (カバーは除く)
使用温度帯 液体窒素の気相から100°C
製品レビュー

お客様の声

"We are very happy with the tubes of Micronic, it is truly more efficient and space saving than we had in the past. Next to that, the fact that the tube positions are laser-etched in the rack itself is very helpful. We always know where the A1 tube is located."

Read full testimonial

Sampled is an American based company that gives laboratories the ability to outsource various services, like sample management, sample storage, multiomics, cellular services and kitting and logistics.

Read full testimonial

"We are very happy with the tubes of Micronic, it is truly more efficient and space saving than we had in the past. Next to that, the fact that the tube positions are laser-etched in the rack itself is very helpful. We always know where the A1 tube is located."

Read full testimonial

“The integration of Micronic’s systems within our LIMS has proven invaluable in supporting our diagnostic efforts. The robust track and trace capabilities ensure that each sample is accurately logged, reducing the risk of errors and facilitating quick retrieval of information"

Read full testimonial

"The flexibility of Micronic’s SBS-format tubes ensures smooth integration into LACDR’s automated workflows. Additionally, the high quality and purity of the Micronic tubes guarantee robust sample preparation, free from leachables or contamination, which is crucial for obtaining reliable and reproducible research results"

Read full testimonial
University Biobank Limburg (BE)
品番

発注用の情報

Article Number Description Unit Size Case Size
MP52720 0.80ml 2D Data-Matrix coded Screw Cap tubes with External Thread V-bottom Bulk 960 tubes 4

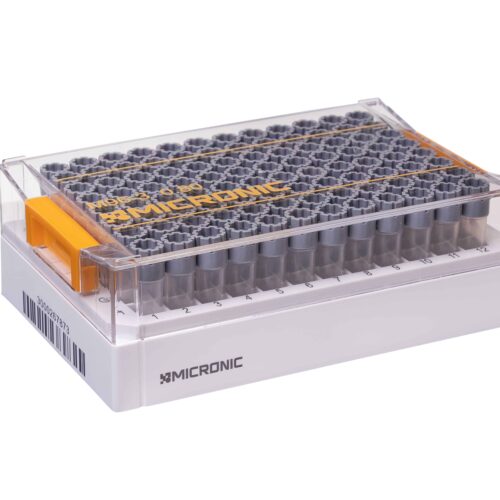

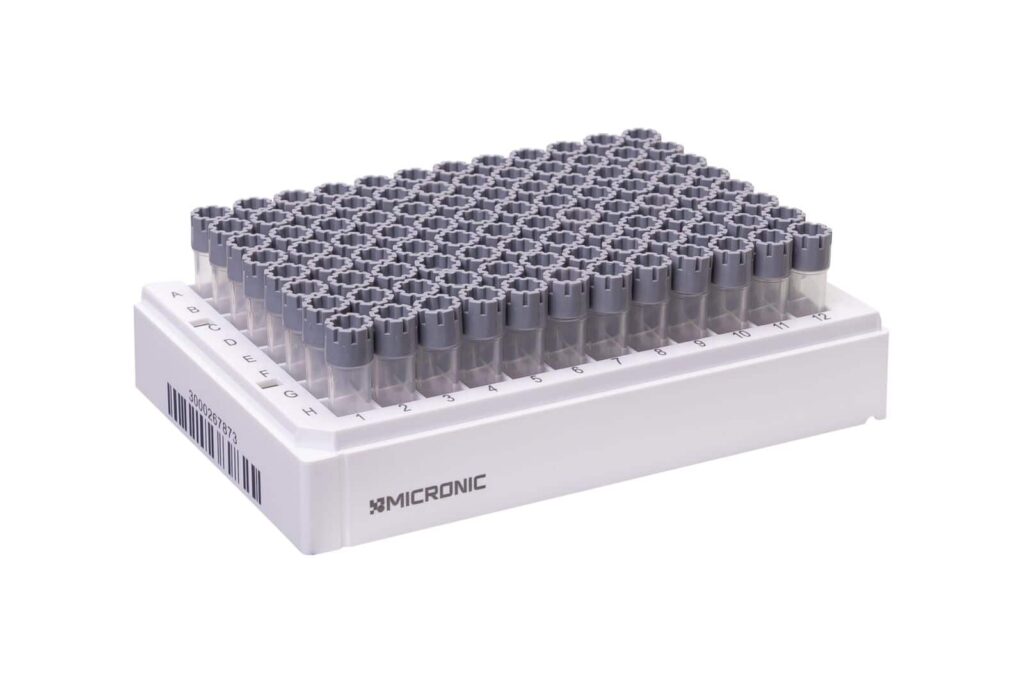

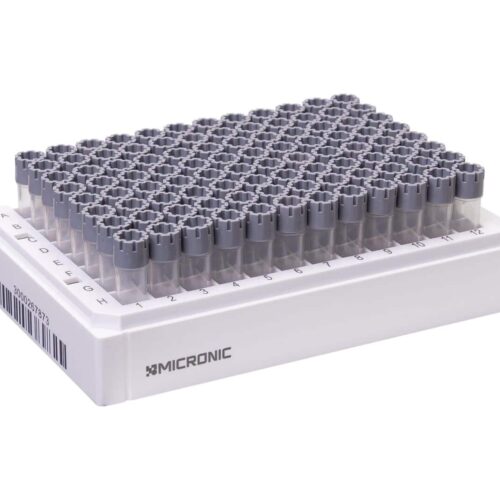

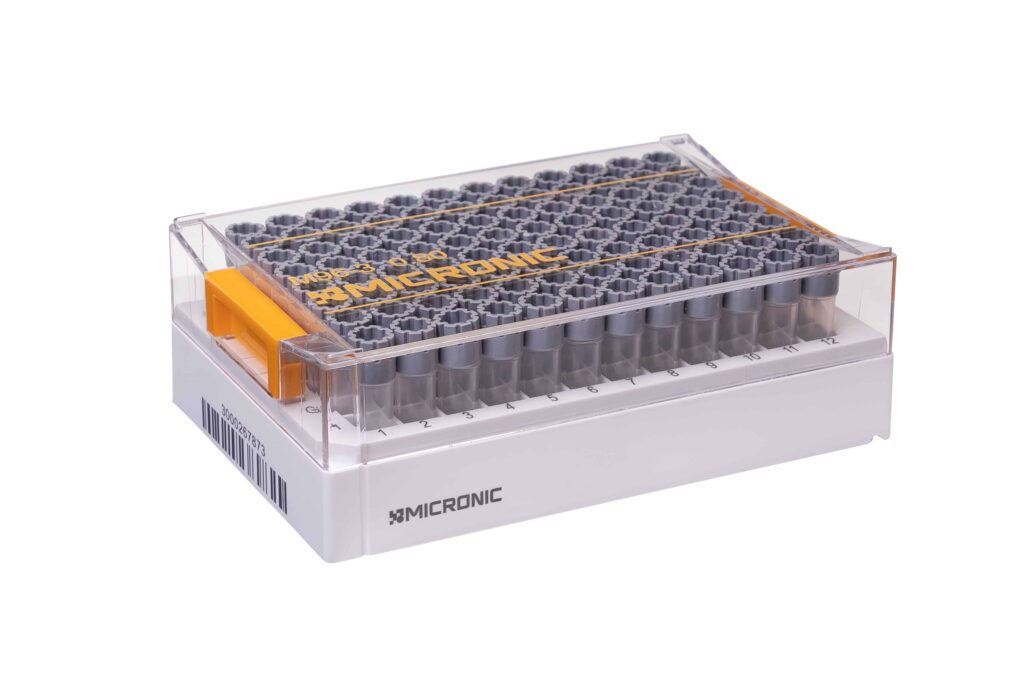

MP52722 0.80ml 2D Data-Matrix coded Screw Cap tubes with External Thread V-bottom in Micronic 96-3 Rack with low cover (Barcoded A1-H1 side) 10 racks 4
Article Number Description Unit Size Case Size
MP53870 Screw Caps IG for externally threaded tubes in 96-well format - Transparent 960 caps 1
MP53871 Screw Caps IG for externally threaded tubes in 96-well format - Grey 960 caps 1
MP53872 Screw Caps IG for externally threaded tubes in 96-well format - White 960 caps 1
MP53873 Screw Caps IG for externally threaded tubes in 96-well format - Yellow 960 caps 1
MP53874 Screw Caps IG for externally threaded tubes in 96-well format - Orange 960 caps 1
MP53875 Screw Caps IG for externally threaded tubes in 96-well format - Red 960 caps 1
MP53876 Screw Caps IG for externally threaded tubes in 96-well format - Pink 960 caps 1
MP53877 Screw Caps IG for externally threaded tubes in 96-well format - Purple 960 caps 1
MP53878 Screw Caps IG for externally threaded tubes in 96-well format - Blue 960 caps 1
MP53879 Screw Caps IG for externally threaded tubes in 96-well format - Light Blue 960 caps 1
MP53880 Screw Caps IG for externally threaded tubes in 96-well format - Light Green 960 caps 1
MP53881 Screw Caps IG for externally threaded tubes in 96-well format - Green 960 caps 1
MP53882 Screw Caps IG for externally threaded tubes in 96-well format - Black 960 caps 1
MP53820 Screw Caps for externally threaded tubes in 96-well format - Grey 960 caps 1
MP53801 Screw Caps for externally threaded tubes in 96-well format - White 960 caps 1
MP53804 Screw Caps for externally threaded tubes in 96-well format - Yellow 960 caps 1
MP53800 Screw Caps for externally threaded tubes in 96-well format - Orange 960 caps 1
MP53802 Screw Caps for externally threaded tubes in 96-well format - Red 960 caps 1
MP53821 Screw Caps for externally threaded tubes in 96-well format - Pink 960 caps 1
MP53809 Screw Caps for externally threaded tubes in 96-well format - Purple 960 caps 1
MP53803 Screw Caps for externally threaded tubes in 96-well format - Blue 960 caps 1
MP53806 Screw Caps for externally threaded tubes in 96-well format - Light Blue 960 caps 1
MP53823 Screw Caps for externally threaded tubes in 96-well format - Light Green 960 caps 1
MP53805 Screw Caps for externally threaded tubes in 96-well format - Green 960 caps 1
MP53822 Screw Caps for externally threaded tubes in 96-well format - Black 960 caps 1
