サンプル保管チューブ

1.10ml 内ねじチューブ

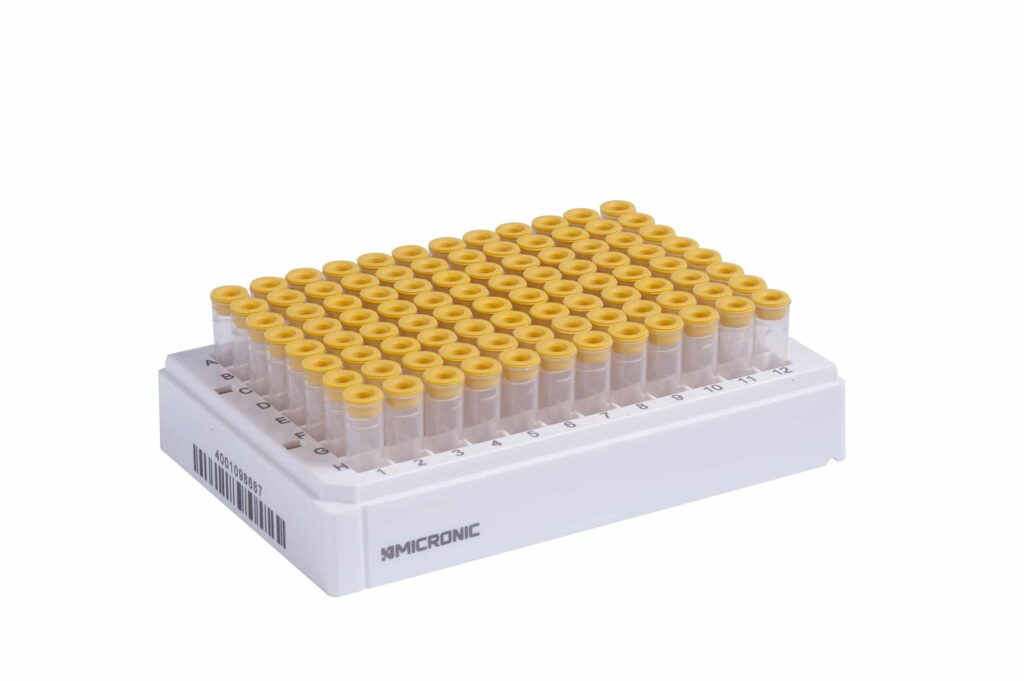

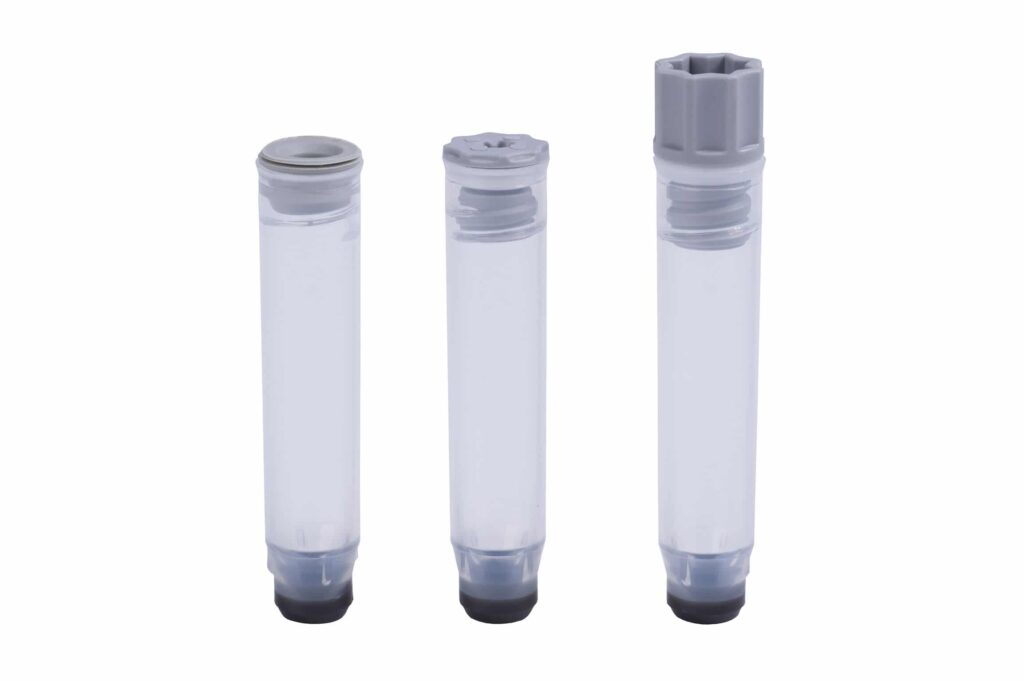

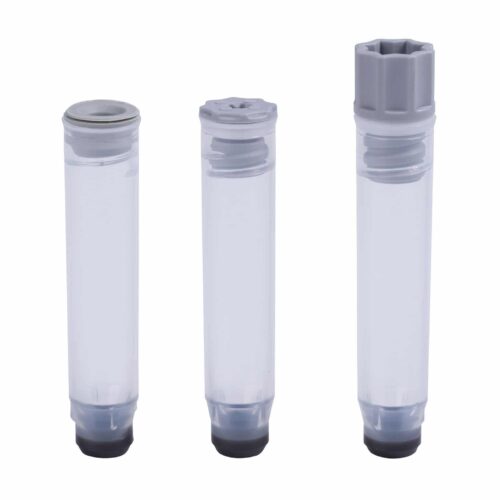

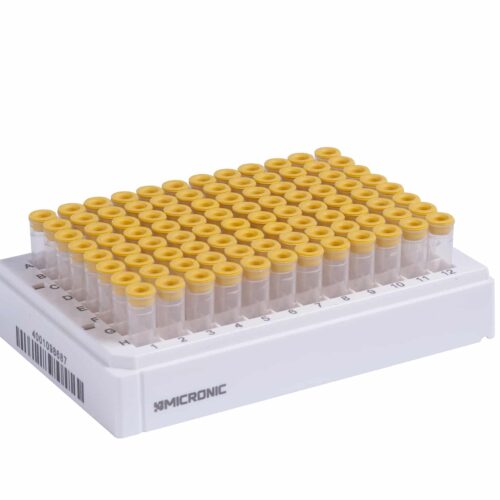

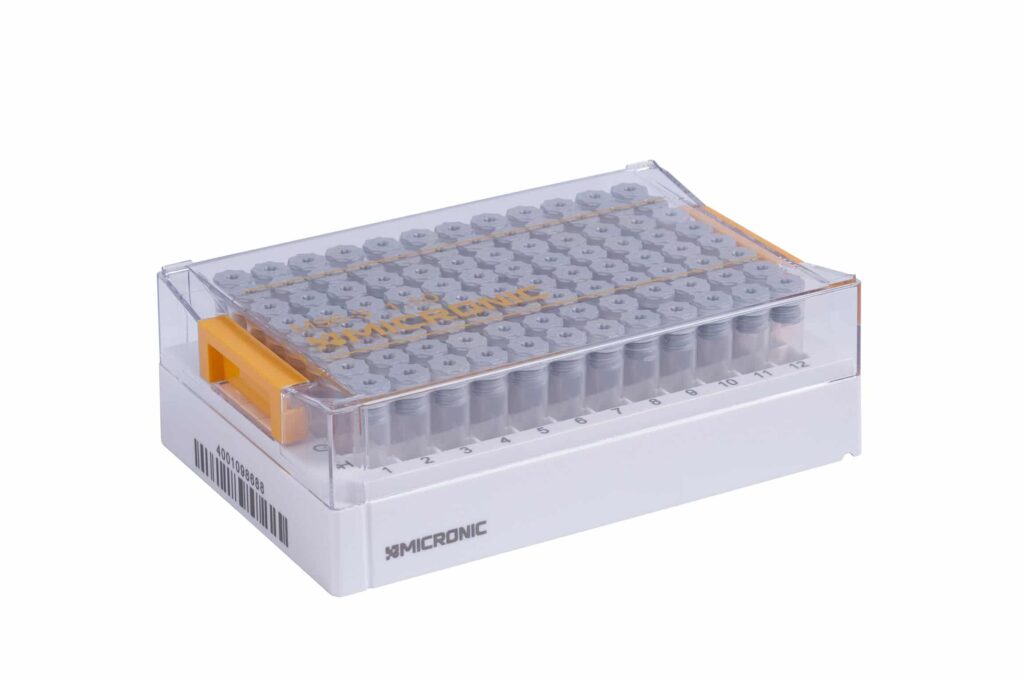

マイクロニックのトレーサブルな1.10mL保管バイアルは、スクリューキャップにもプッシュキャップにも対応しており、どちらの密封方式でも優れた性能を発揮します。チューブの実使用容量(+21°C時)は、スクリューキャップ使用時で0.80mL、プッシュキャップ使用時で0.90mLです。1.10mLチューブは、標準でマイクロニックULTもしくはEFC96-3ラックに収納されています。この1Dバーコード付きラックは、ANSI/SLAS規格に準拠しており、クラス7認証クリーンルームで製造されています。

当社のソリューション

コスト効率の良いサンプル保存

プッシュキャップ: TPEキャップは複数の形式で提供されています。Capcluster-96は、各チューブを個別にキャップする形式、Capmat-96は96個のキャップが固定されたフィルム状でチューブをまとめて密封する形式、Capband-8または-12はミシン目付きのマット状で、キャップストリップとして切り離して使用します。

手動デキャッパー: すべての手動デキャッパーは、MicronicのTPEプッシュキャップ、TPE LyoCaps、EVAプッシュキャップ(96ウェルフォーマットの0.50ml、0.75ml、1.10ml、1.40ml、2.00mlチューブ)に対応しています。Micronicの手動デキャッパーは、迅速なデキャッピングを可能にするコスト効率の高いソリューションです。

プッシュキャップキャッパー CP400: 96本のチューブラック全体に一括で均一な圧力をかけてプッシュキャップを装着できる、コスト効率の高い手動キャッパーです。この手動キャッパーは、すべてのANSI / SLASフォーマットラック(最大高さ48mm)において、最大1.40mlまでのチューブを確実かつ繰り返し密封することができます。

プッシュキャップキャッパー CP600/610: 電動キャッパーCP600は、96フォーマットチューブ(0.50ml、0.75ml、1.10ml、1.40ml)に対応したMicronicプッシュキャップをラック上で装着可能です。電動キャッパーCP610は、最大2.00mlの96フォーマットチューブに対応したMicronicプッシュキャップを装着可能です。どちらもアダプターは不要です。

特長と利点

1.10ml 内ねじチューブ

レーザー刻印コード

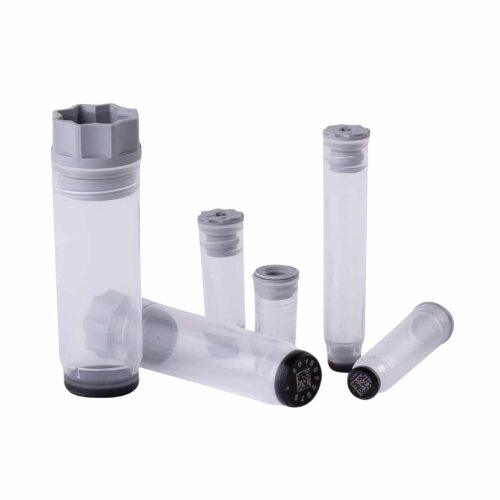

2Dコードとラックの1Dコードは恒久的にレーザー刻印されています。
特許技術
特許取得済みの2Kインジェクション成形技術により、コード面は透明なチューブ本体から分離することができません。
全数検査
2Dコードは、その固有性と可読性を全数検査しています。
RNASE/DNASE/エンドトキシン
検出可能なRNaseおよびDNaseの汚染はなく、製造・包装されたラボウェアのエンドトキシンレベルは許容最小限(< 0.01 EU/ml)に抑えられています。
クラス7クリーンルーム
マイクロニックのラボウェアは、NEN-EN-ISO 14644-1 クラス7認証を取得したクリーンルーム環境で自社製造・組み立てされています。
オプション対応
・ガンマ線照射またはEOG処理
・スクリューキャップ装着
・カスタム2Dチューブコード
・カスタム1Dラックバーコード
仕様

製品情報

項目 1.10ml 内ねじチューブ
底形状 V底
素材 医療用PP
適正容量 (+21ºC) 0.80ml (スクリューキャップ) / 0.90ml (プッシュキャップ)

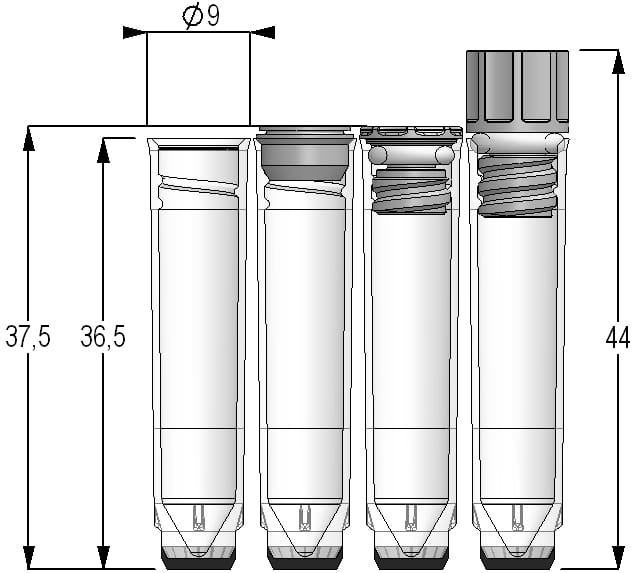

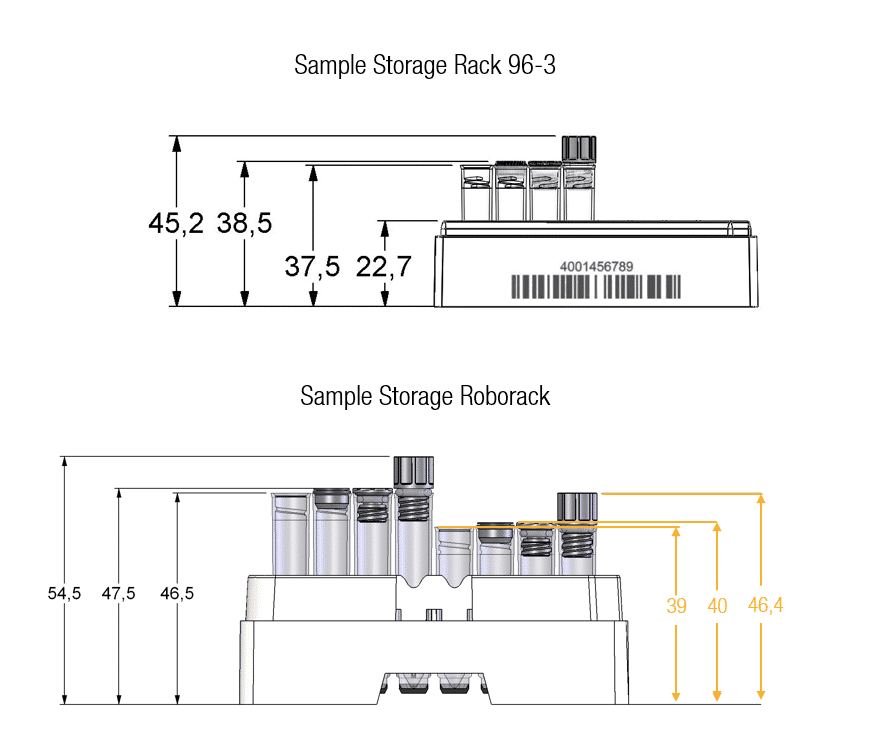

チューブ高さ(含ラック) 39.0mm (カバーは除く)
耐薬品性 化学溶媒
使用温度帯 液体窒素の気相から100°C
製品レビュー

お客様の声

“At the AMC location, years of positive experience with Micronic have shown that their products consistently meet high standards, ensuring smooth laboratory operations and dependable sample storage”

Read full testimonial

"We are very happy with the tubes of Micronic, it is truly more efficient and space saving than we had in the past. Next to that, the fact that the tube positions are laser-etched in the rack itself is very helpful. We always know where the A1 tube is located."

Read full testimonial

"The flexibility of Micronic’s SBS-format tubes ensures smooth integration into LACDR’s automated workflows. Additionally, the high quality and purity of the Micronic tubes guarantee robust sample preparation, free from leachables or contamination, which is crucial for obtaining reliable and reproducible research results"

Read full testimonial

“The integration of Micronic’s systems within our LIMS has proven invaluable in supporting our diagnostic efforts. The robust track and trace capabilities ensure that each sample is accurately logged, reducing the risk of errors and facilitating quick retrieval of information"

Read full testimonial

Sampled is an American based company that gives laboratories the ability to outsource various services, like sample management, sample storage, multiomics, cellular services and kitting and logistics.

Read full testimonial
Amsterdam UMC (NL)
品番

発注用情報

Article Number Description Unit Size Case Size
MP32033 1.10ml Non coded Screw Cap tubes with Internal Thread V-bottom Bulk 960 tubes 4
MP32033L 1.10ml Non coded Screw Cap tubes with Internal Thread V-bottom Snap Bulk 960 tubes 4
MP32120 1.10ml Non coded Screw Cap tubes with Internal Thread V-bottom in Micronic 96-3 Rack with low cover (Barcoded A1-H1 side) 10 racks 4
MP32121 1.10ml Non coded Screw Cap tubes with Internal Thread V-bottom in Micronic 96-3 Rack with high cover (Barcoded A1-H1 side) 10 racks 4

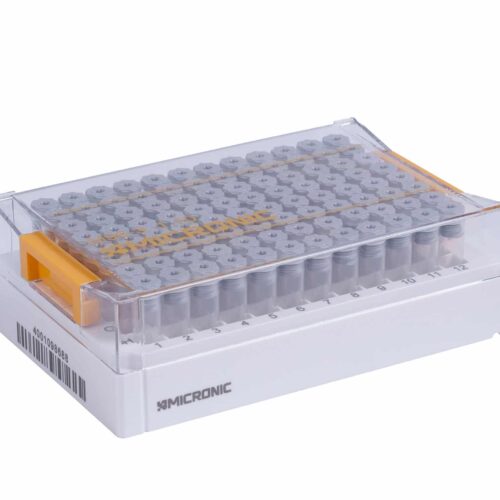

MP32175 1.10ml Non coded Screw Cap tubes with Internal Thread V-bottom in Micronic EFC 96-3 Rack RM with cover (Barcoded A1-H1 side) 10 racks 4
MP52318 1.10ml 2D Data-Matrix coded Screw Cap tubes with Internal Thread V-bottom Bulk 960 tubes 4
MP52318L 1.10ml 2D Data-Matrix coded Screw Cap tubes with Internal Thread V-bottom Snap Bulk 960 tubes 4
MP52540 1.10ml 2D Data-Matrix coded Screw Cap tubes with Internal Thread V-bottom in Micronic 96-3 Rack with low cover (Barcoded A1-H1 side) 10 racks 4
MP52541 1.10ml 2D Data-Matrix coded Screw Cap tubes with Internal Thread V-bottom in Micronic 96-3 Rack with high cover (Barcoded A1-H1 side) 10 racks 4
MP52602 1.10ml 2D Data-Matrix coded Screw Cap tubes with Internal Thread V-bottom in Micronic EFC 96-3 Rack RM with cover (Barcoded A1-H1 side) 10 racks 4
MP52602-Z20 1.10ml 2D Data-Matrix coded Screw Cap tubes with Internal Thread V-bottom precapped with Grey Screw Cap in Micronic EFC 96-3 Rack RM with cover (Barcoded A1-H1 side 10 racks 4
