最適なサンプルチューブを見つける:チューブウィザード
サンプル保管チューブ

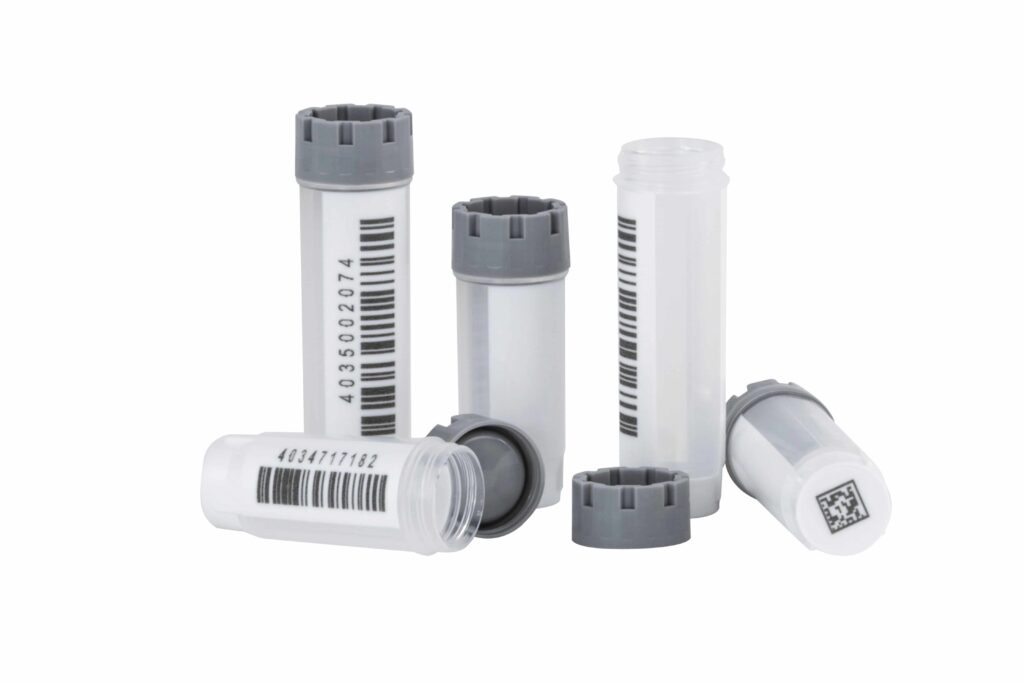

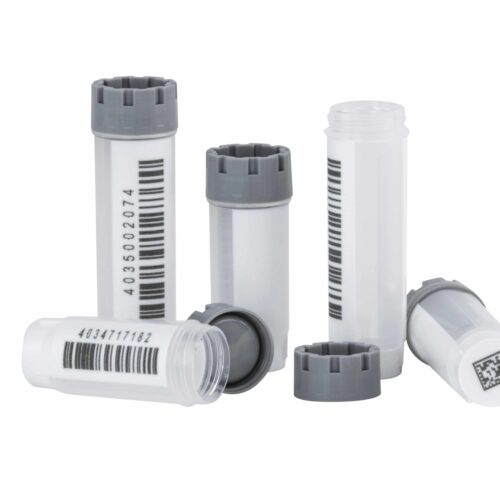

2.00ml 外ねじハイブリットチューブ

2.00mL外ねじハイブリッドチューブは、サンプルのトレーサビリティを保証し、作業容量を最適化します。外ねじチューブを使用することで、サンプルがねじ部分に接触するリスクを排除し、交差汚染の可能性を最小限に抑えながら、サンプルの完全性を向上させます。2.00mLチューブは、比較的低いチューブ高さでありながら、高い作業容量を提供できます。

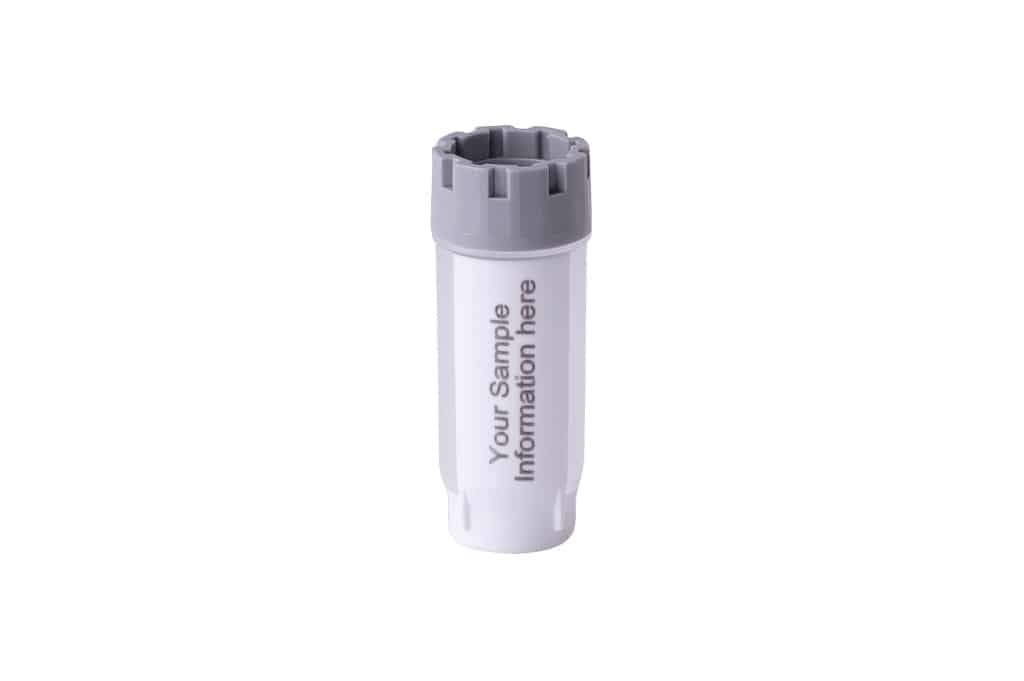

チューブ壁の透明部分により、サンプルを目視で簡単に確認でき、4つの異なるコード形式がサンプルのトレーサビリティを保証します。サンプルは、2Dデータマトリックスコード、1Dバーコード、数字の人が読み取れるコード、またはチューブの白色面に刻まれたコードで識別できます。これらのコードは白色のコードエリアに永久的にレーザー刻印されており、消えたり剥がれたりすることはありません

当社のソリューション

オートメーションと目視によるサンプル識別

マイクロニックのハイブリッドチューブは、オートメーションと目視によるサンプル識別を独自に組み合わせています。視認可能なコードにより、研究者は保管や取り出し作業、またはフィールドリサーチ中にサンプルを迅速に特定したり、コードを確認したりできます。チューブ壁の透明部分により、サンプルを目視で簡単に確認できます。1Dおよび2Dバーコードは、オートメーションシステムでの読み取りが可能です。さらに、チューブ底面のコード周囲を高くすることで、2Dデータマトリックスコードを偶発的な傷から保護します。

これらのチューブは独自の射出成形技術を使用して製造されており、白色の底面および側面は透明なチューブ本体から分離しない構造になっています。高コントラストの1Dコード、2Dコード、および可読コードは、白色の表面に永久的にレーザー刻印されており、消えたり剥がれたりすることはありません。ハイブリッドチューブの三条ねじは、長期保存や超低温でのサンプル保管において優れた密閉性を実現します。スクリューキャップが過剰に締め付けられないように、シール時に独自のロックがかかる設計になっています。キャップは9色から選択可能です。

特長と利点

2.00ml 外ねじハイブリットチューブ

サンプルの完全性を向上
外ねじ構造により交差汚染が最小限に抑えられます、サンプルの完全性が向上します。
超低温
厚みのあるチューブ壁により、耐久性が高く、超低温保存に適しています。
全数検査
2Dコードは、その固有性と可読性を全数検査しています。

RNASE/DNASE/エンドトキシン
検出可能なRNaseおよびDNaseの汚染はなく、製造・包装されたラボウェアのエンドトキシンレベルは許容最小限(< 0.01 EU/ml)に抑えられています。
クラス7クリーンルーム
マイクロニックのラボウェアは、NEN-EN-ISO 14644-1 クラス7認証を取得したクリーンルーム環境で自社製造・組み立てされています。
オプション対応
・ガンマ線照射またはEOG処理
・スクリューキャップ装着
・カスタム2Dチューブコード
・カスタム1Dラックバーコード
仕様

製品情報

項目 2.00ml 外ねじハイブリットチューブ
内底形状 平底
素材 医療用PP
適正容量 (+21ºC) 1.95ml
チューブ高さ 30.0 mm

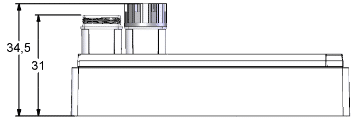

チューブ高さ(含ラック) 30.8 mm
使用温度帯 液体窒素の気相から100°C
製品レビュー

お客様の声

"We are very happy with the tubes of Micronic, it is truly more efficient and space saving than we had in the past. Next to that, the fact that the tube positions are laser-etched in the rack itself is very helpful. We always know where the A1 tube is located."

Read full testimonial

"The flexibility of Micronic’s SBS-format tubes ensures smooth integration into LACDR’s automated workflows. Additionally, the high quality and purity of the Micronic tubes guarantee robust sample preparation, free from leachables or contamination, which is crucial for obtaining reliable and reproducible research results"

Read full testimonial

"We are very happy with the tubes of Micronic, it is truly more efficient and space saving than we had in the past. Next to that, the fact that the tube positions are laser-etched in the rack itself is very helpful. We always know where the A1 tube is located."

Read full testimonial

“The integration of Micronic’s systems within our LIMS has proven invaluable in supporting our diagnostic efforts. The robust track and trace capabilities ensure that each sample is accurately logged, reducing the risk of errors and facilitating quick retrieval of information"

Read full testimonial

“At the AMC location, years of positive experience with Micronic have shown that their products consistently meet high standards, ensuring smooth laboratory operations and dependable sample storage”

Read full testimonial
University Biobank Limburg (BE)
品番

発注用情報

Article Number Description Unit Size Case Size
W00 = White side walls without coding
W1D = White side walls with a 1D barcode & human readable code on one side wall
MP52855 2.00ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W1D Flat bottom Bulk 480 tubes 4
MP52856 2.00ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W00 Flat bottom Bulk 480 tubes 4

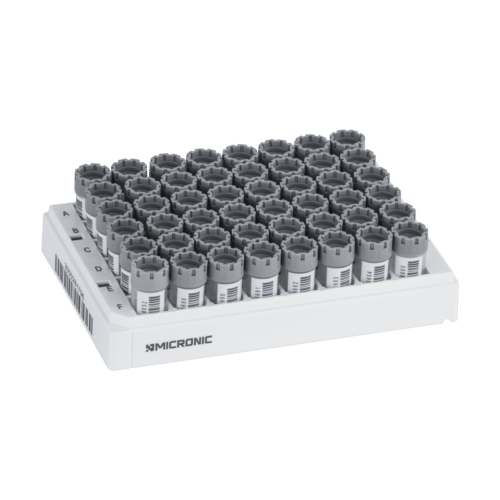

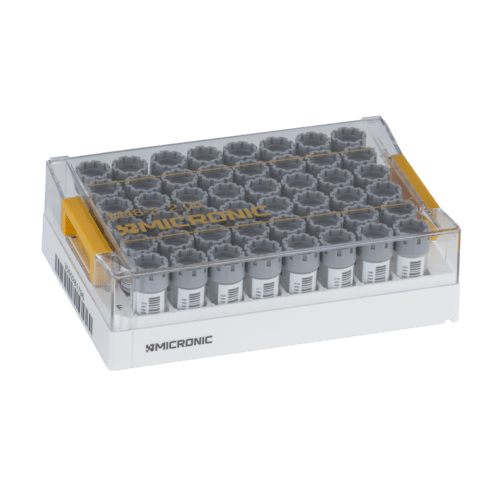

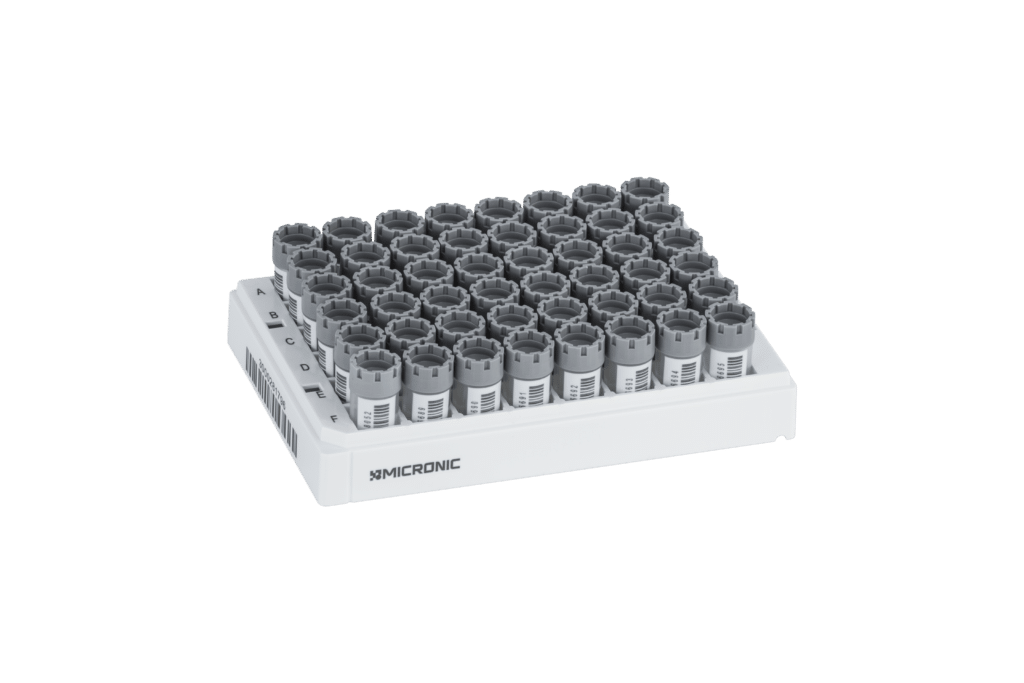

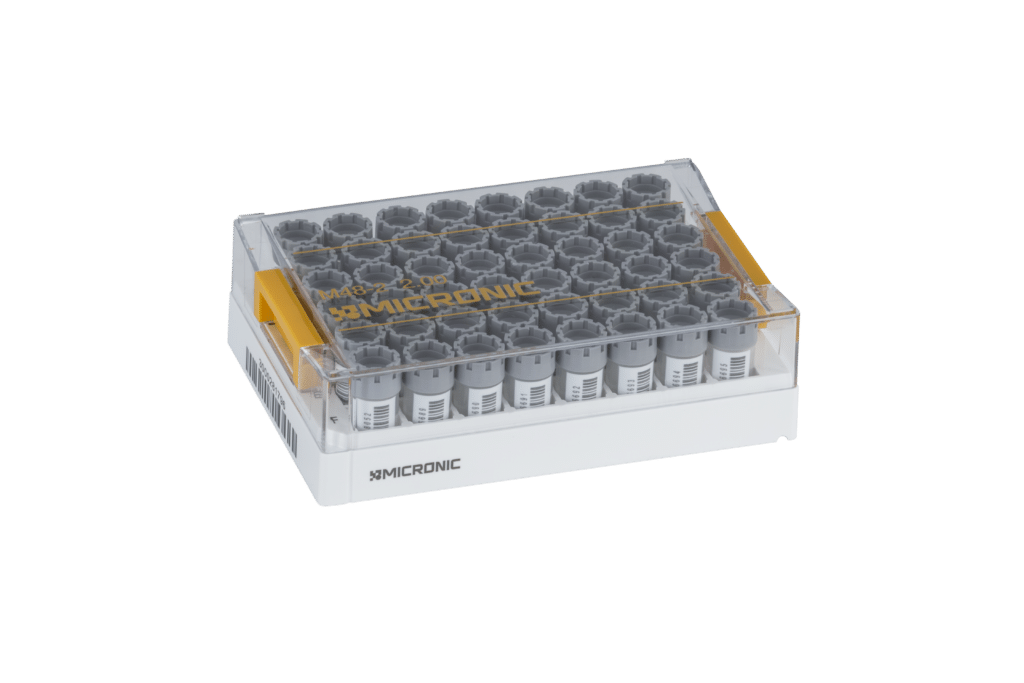

MP52858 2.00ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W1D Flat bottom in Micronic 48-2 Rack with high cover (Barcoded A1-F1 side) 10 racks 4
MP52859 2.00ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W00 Flat bottom in Micronic 48-2 Rack with high cover (Barcoded A1-F1 side) 10 racks 4
MP52855-Y20 2.00ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W1D Flat bottom precapped with Grey Screw Caps Bulk 480 tubes 4
MP52856-Y20 2.00ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W00 Flat bottom precapped with Grey Screw Caps Bulk 480 tubes 4
MP52858-Y20 2.00ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W1D Flat bottom precapped with Grey Screw Caps in Micronic 48-2 Rack with high cover (Barcoded A1-F1 side) 10 racks 4
MP52859-Y20 2.00ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W00 Flat bottom precapped with Greay Screw Caps in Micronic 48-2 Rack with high cover (Barcoded A1-F1 side) 10 racks 4
Article Number Description Unit Size Case Size
MP53425 Screw Caps for externally threaded tubes in 48-well format - Transparent 480 caps 1
MP53420 Screw Caps for externally threaded tubes in 48-well format - Grey 480 caps 1
MP53401 Screw Caps for externally threaded tubes in 48-well format - White 480 caps 1
MP53404 Screw Caps for externally threaded tubes in 48-well format - Yellow 480 caps 1
MP53400 Screw Caps for externally threaded tubes in 48-well format - Orange 480 caps 1
MP53402 Screw Caps for externally threaded tubes in 48-well format - Red 480 caps 1
MP53409 Screw Caps for externally threaded tubes in 48-well format - Purple 480 caps 1
MP53403 Screw Caps for externally threaded tubes in 48-well format - Blue 480 caps 1
MP53406 Screw Caps for externally threaded tubes in 48-well format - Light Blue 480 caps 1
MP53423 Screw Caps for externally threaded tubes in 48-well format - Light Green 480 caps 1
