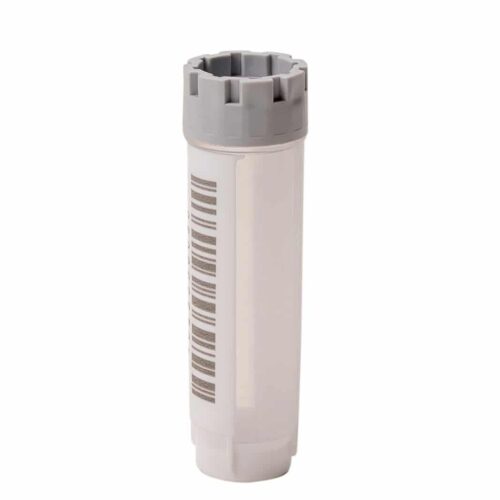

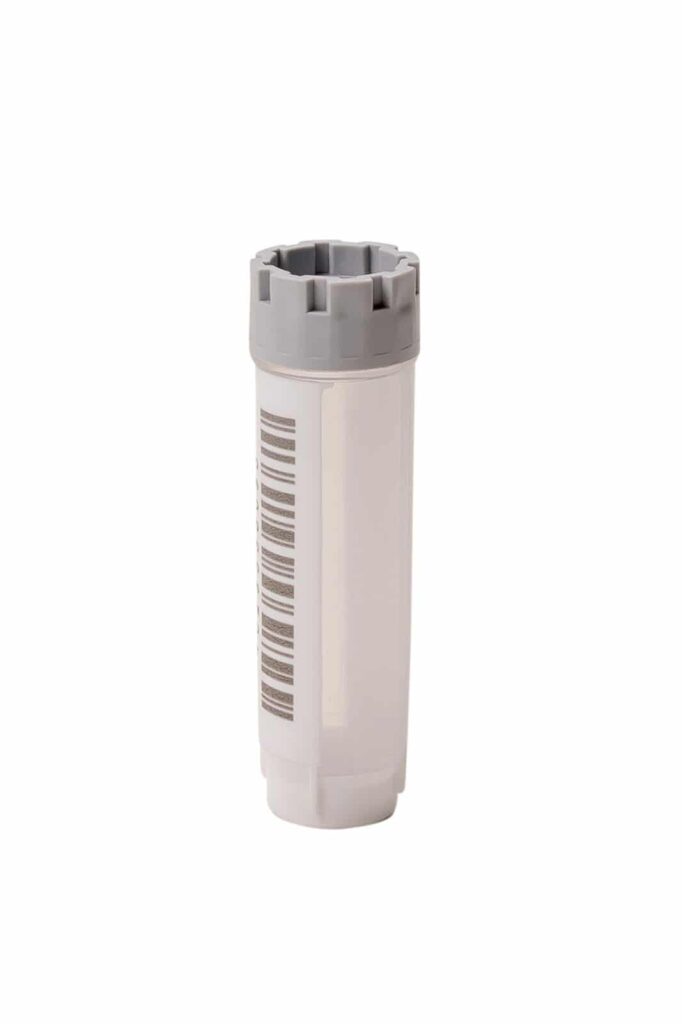

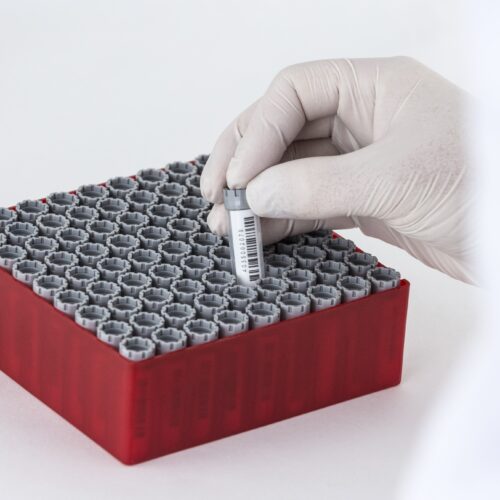

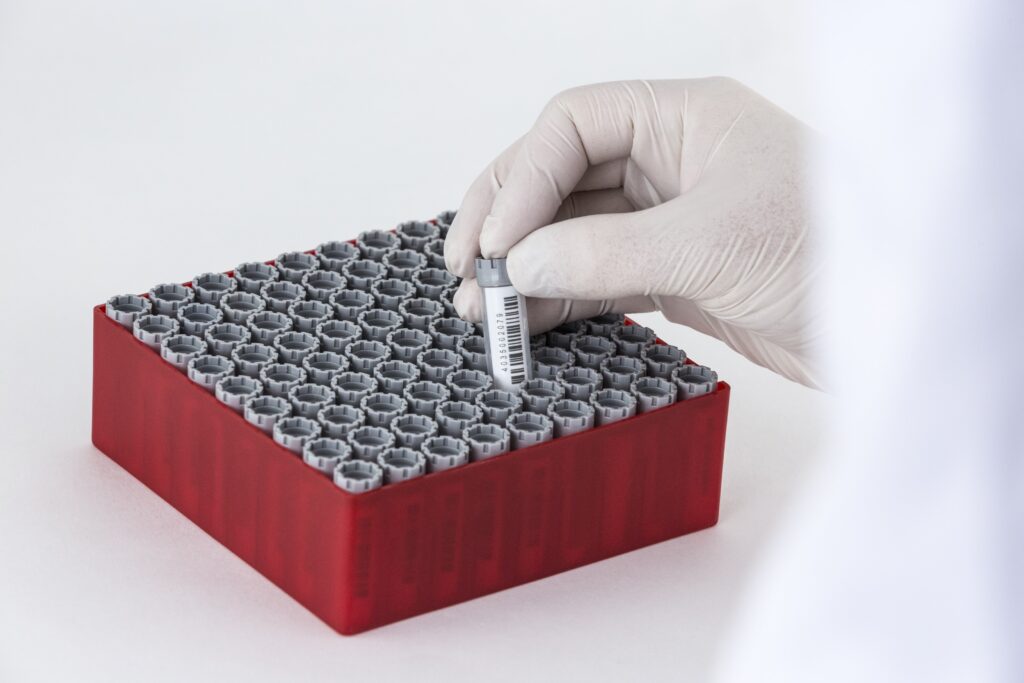

3.00mL外ねじハイブリッドチューブは、サンプルのトレーサビリティを保証し、作業容量を最適化します。チューブ壁の透明部分により、サンプルを目視で簡単に確認でき、4つの異なるコード形式がサンプルのトレーサビリティを保証します。 チューブは、ANSI / SLASフォーマットのラック、標準クライオボックス、自動保管システム、および自動分注機と互換性があります。
外ねじチューブは、内部により多くの材料を保管できるため、同じ保管スペースを占有しながらも、より多くの容量を保持できます。チューブの最適化された作業容量により、フリーザーや自動保管システムの収納能力が向上します。

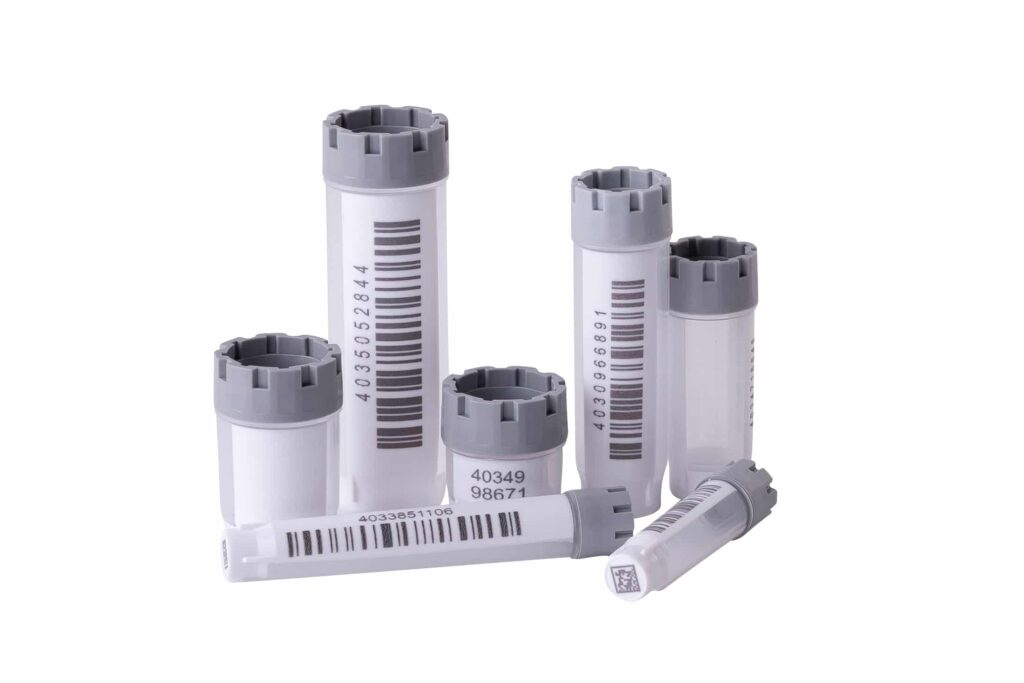

マイクロニックのハイブリッドチューブは、オートメーションと目視によるサンプル識別を独自に組み合わせています。視認可能なコードにより、研究者は保管や取り出し作業、またはフィールドリサーチ中にサンプルを迅速に特定したり、コードを確認したりできます。チューブ壁の透明部分により、サンプルを目視で簡単に確認できます。1Dおよび2Dバーコードは、オートメーションシステムでの読み取りが可能です。さらに、チューブ底面のコード周囲を高くすることで、2Dデータマトリックスコードを偶発的な傷から保護します。
これらのチューブは独自の射出成形技術を使用して製造されており、白色の底面および側面は透明なチューブ本体から分離しない構造になっています。高コントラストの1Dコード、2Dコード、および可読コードは、白色の表面に永久的にレーザー刻印されており、消えたり剥がれたりすることはありません。ハイブリッドチューブの三条ねじは、長期保存や超低温でのサンプル保管において優れた密閉性を実現します。スクリューキャップが過剰に締め付けられないように、シール時に独自のロックがかかる設計になっています。キャップは9色から選択可能です。
項目 | 3.00ml 外ねじハイブリットチューブ(48ウェル) |
---|---|
内底形状 | 平底 |
素材 | 医療用グレードPP |
適正容量 (+21ºC) | 2.90ml |
チューブ高さ | 41.0mm |

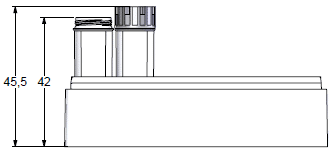

チューブ高さ(含ラック) | 42.0mm |
使用温度帯 | 液体窒素の気相から100°C |
Article Number | Description | Unit Size | Case Size |
---|---|---|---|
W00 = White side walls without coding | |||
W1D = White side walls with a 1D barcode & human readable code on one side wall | |||
MP52861 | 3.00ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W1D Flat bottom Bulk | 480 tubes | 4 |
MP52862 | 3.00ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W00 Flat bottom Bulk | 480 tubes | 4 |

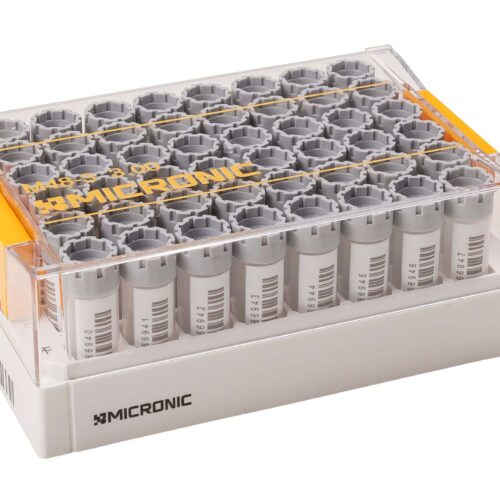

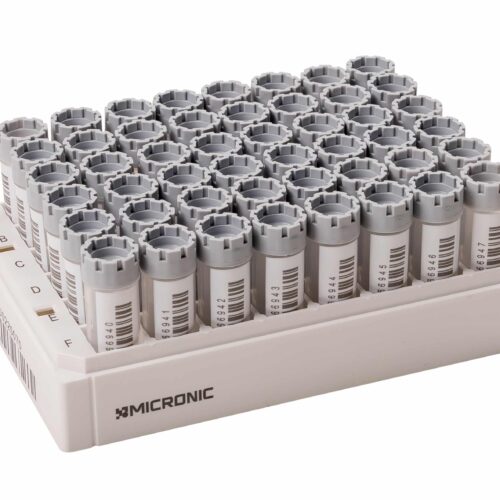

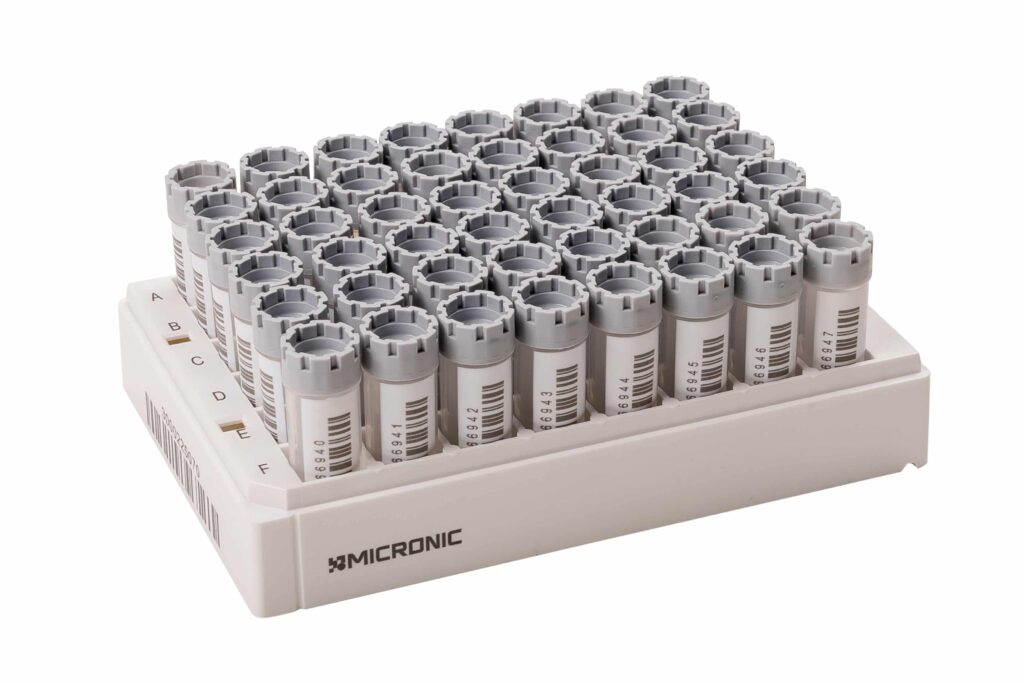

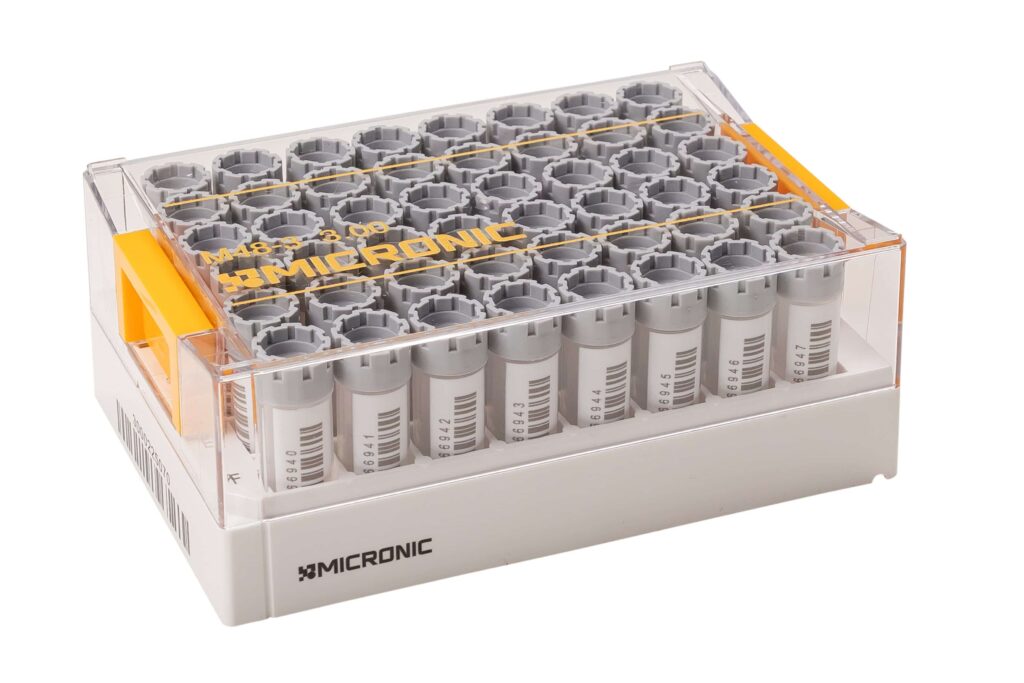

MP52864 | 3.00ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W1D Flat bottom in Micronic 48-3 Rack with high cover (Barcoded A1-F1 side) | 10 racks | 4 |
MP52865 | 3.00ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W00 Flat bottom in Micronic 48-3 Rack with high cover (Barcoded A1-F1 side) | 10 racks | 4 |
MP52861-Y20 | 3.00ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W1D Flat bottom precapped with Grey Screw Caps Bulk | 480 tubes | 4 |
MP52862-Y20 | 3.00ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W00 Flat bottom precapped with Grey Screw Caps Bulk | 480 tubes | 4 |
MP52864-Y20 | 3.00ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W1D Flat bottom precapped with Grey Screw Caps in Micronic 48-3 Rack with high cover (Barcoded A1-F1 side) | 10 racks | 4 |
MP52865-Y20 | 3.00ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W00 Flat bottom precapped with Greay Screw Caps in Micronic 48-3 Rack with high cover (Barcoded A1-F1 side) | 10 racks | 4 |
Article Number | Description | Unit Size | Case Size |
---|---|---|---|
MP53425 | Screw Caps for externally threaded tubes in 48-well format - Transparent | 480 caps | 1 |
MP53420 | Screw Caps for externally threaded tubes in 48-well format - Grey | 480 caps | 1 |
MP53401 | Screw Caps for externally threaded tubes in 48-well format - White | 480 caps | 1 |
MP53404 | Screw Caps for externally threaded tubes in 48-well format - Yellow | 480 caps | 1 |
MP53400 | Screw Caps for externally threaded tubes in 48-well format - Orange | 480 caps | 1 |
MP53402 | Screw Caps for externally threaded tubes in 48-well format - Red | 480 caps | 1 |
MP53409 | Screw Caps for externally threaded tubes in 48-well format - Purple | 480 caps | 1 |
MP53403 | Screw Caps for externally threaded tubes in 48-well format - Blue | 480 caps | 1 |
MP53406 | Screw Caps for externally threaded tubes in 48-well format - Light Blue | 480 caps | 1 |
MP53423 | Screw Caps for externally threaded tubes in 48-well format - Light Green | 480 caps | 1 |
