マイクロニック 48-4 ULTラック

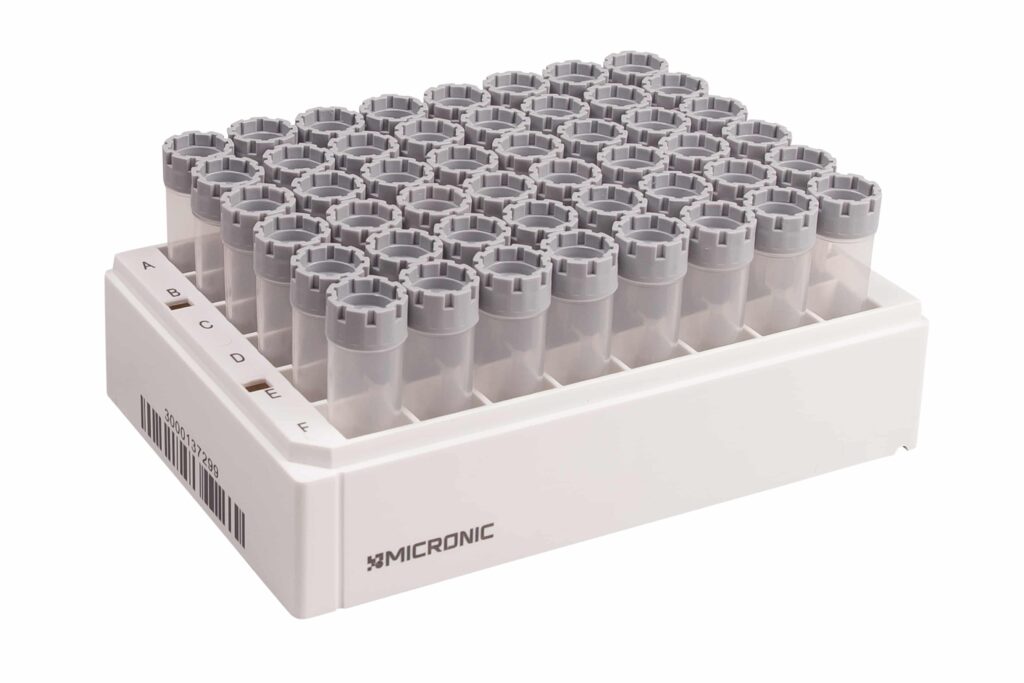

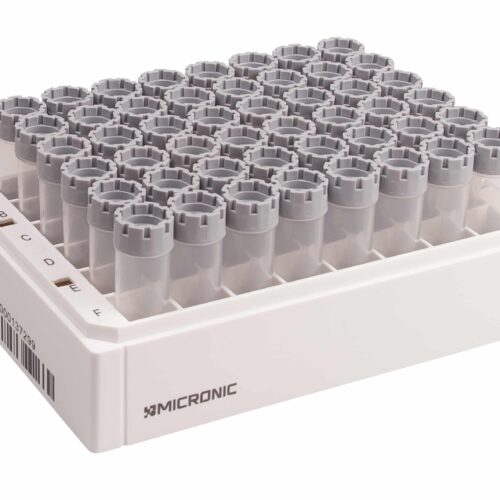

マイクロニック 48‑4ラックは、4.00 mL内ねじまたは外ねじチューブを48本収納するように開発されています。ANSI/SLAS準拠の標準フットプリントに加え、ULTラックには自動化に最適な機能をさらに搭載しています。これらの機能には、チューブのねじ締め・緩め時に回転を防止する優れたツイストロック設計、チューブとカバーの挿入をスムーズに誘導するリードインガイド、切り欠きを最小限に抑えた閉じたサイドウォールによる完璧なラック方向決め、カバー両端のロッカーを下向きに動かすだけで確実に閉鎖できる独自の自動化対応カバーロックシステム、サンプルの完全な追跡・トレーシングを実現する一体型1Dラックバーコードが含まれています。

当社のソリューション

最先端素材を採用

チューブストレージラックに求められる最も重要な特性の一つは、極限環境への耐性です。マイクロニックでは、超低温環境での使用に最適な構成を見出すために、さまざまな素材とラック設計の研究を行ってきました。その結果、数多くの試験を経て選ばれたのが、バージンポリカーボネートです。この素材を採用したマイクロニックULTラックは、低温下でも優れた性能を発揮し、自動化された超低温保存施設における長期運用に最適です。使用される素材は、品質と高純度を基準に厳選されており、温度変化による変形を最小限に抑える堅牢な設計が施されています。

さらに、マイクロニックのULTラック、チューブ、キャップは、米国連邦規格209Eクラス7に準拠したクリーンルーム環境下で製造・組み立てが行われています。これらの製品は、最高水準の射出成形技術によって製造されており、RNase/DNaseフリーで、エンドトキシン(パイロジェン)レベルも<0.01 EU/mlの検出限界未満に管理されています。

特徴と利点

マイクロニック 48-4 ULTラック

ラック識別用ID
ラック上部にレーザー刻印による英数字コード、ラック側面に人が読み取れるコード付き1Dバーコード、ラック底部に2Dデータマトリックスコード
超低温
ポリカーボネート製で、低温環境下でも優れた特性を発揮
『アイスブレーカー』機構
超低温保存用の新ロック機構: 『アイスブレーカー』を搭載
互換性
主要なサンプル保管オートメーションシステム(–20°C、–80°C、さらにはそれ以下の温度帯)へ対応
RNASE/DNASE/エンドトキシン
検出可能なRNaseおよびDNaseの汚染はなく、製造・包装されたラボウェアのエンドトキシンレベルは許容最小限(< 0.01 EU/ml)未満
クラス7クリーンルーム
マイクロニックのラボウェアは、NEN-EN-ISO 14644-1 クラス7認証を取得したクリーンルーム環境で自社製造
仕様

製品情報

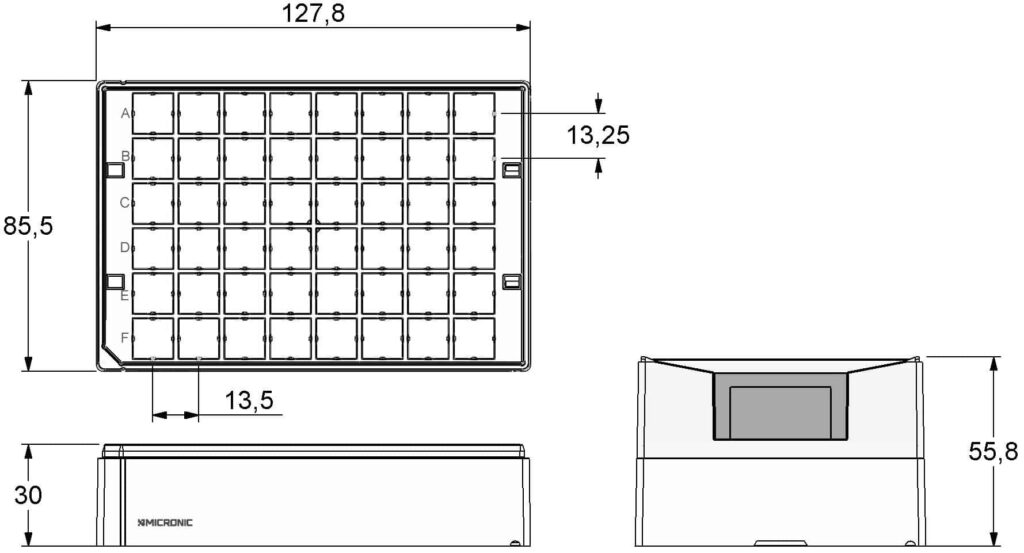

項目 マイクロニック 48-4 ULTラック
素材 高純度PC
ラック高さ 30.0mm

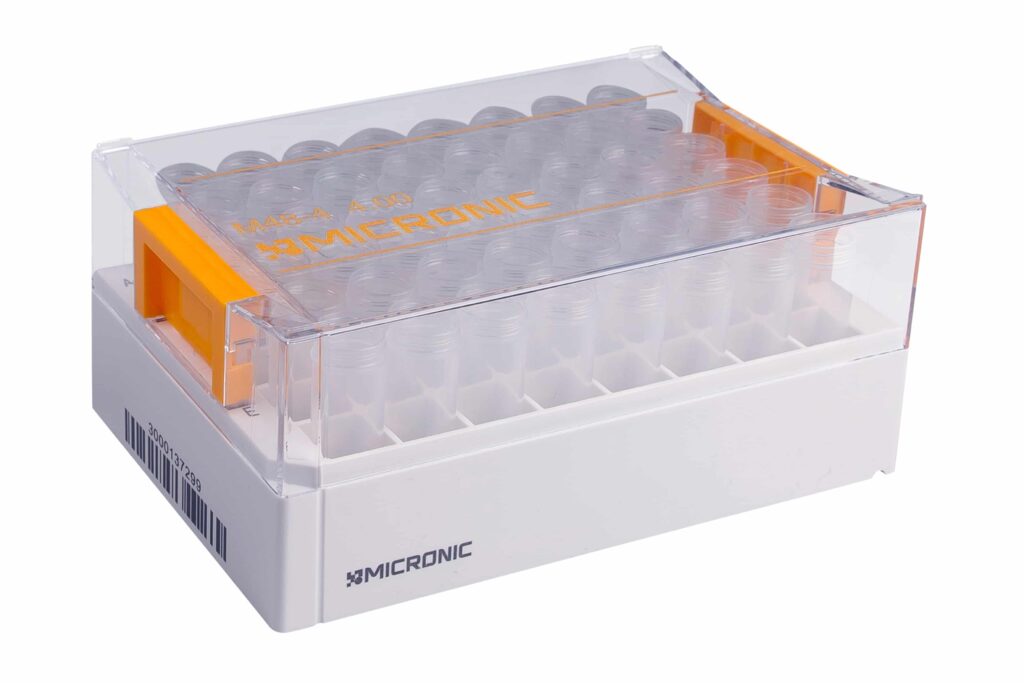

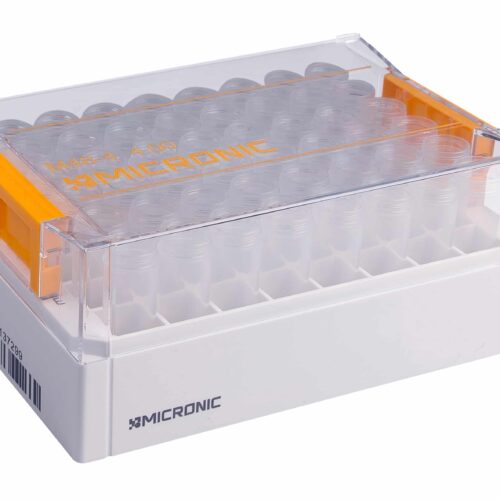

ラック高さ(含カバー) 55.8mm
ラック長さ 127.8mm
ラック幅 85.5mm
化学耐性 ++/+
使用温度帯 液体窒素の気相から140°C
製品レビュー

お客様の声

"We are very happy with the tubes of Micronic, it is truly more efficient and space saving than we had in the past. Next to that, the fact that the tube positions are laser-etched in the rack itself is very helpful. We always know where the A1 tube is located."

Read full testimonial

Sampled is an American based company that gives laboratories the ability to outsource various services, like sample management, sample storage, multiomics, cellular services and kitting and logistics.

Read full testimonial

“The integration of Micronic’s systems within our LIMS has proven invaluable in supporting our diagnostic efforts. The robust track and trace capabilities ensure that each sample is accurately logged, reducing the risk of errors and facilitating quick retrieval of information"

Read full testimonial

"The flexibility of Micronic’s SBS-format tubes ensures smooth integration into LACDR’s automated workflows. Additionally, the high quality and purity of the Micronic tubes guarantee robust sample preparation, free from leachables or contamination, which is crucial for obtaining reliable and reproducible research results"

Read full testimonial

“At the AMC location, years of positive experience with Micronic have shown that their products consistently meet high standards, ensuring smooth laboratory operations and dependable sample storage”

Read full testimonial
EU-OPENSCREEN (DE)
品番

発注用情報

48-4 ULTラック

Article Number Description Unit Size Case Size
MP51301 Micronic 48-4 Rack with high cover for 4.00ml tubes capped with Screw Caps (empty) (barcoded A1-F1 side) 10 racks 2

4.00ml 内ねじ/外ねじチューブ

Article Number Description Unit Size Case Size
MP52441 4.00ml 2D Data-Matrix coded Screw Cap tubes in Micronic 48-4 Rack with high cover (Barcoded A1-F1 side) 10 racks 2
MP52810-Y20 4.00ml 2D Data-Matrix coded Screw Cap tubes with External Thread Flat bottom in Micronic 48-4 Rack with high cover (Barcoded A1-F1 side) 10 racks 2
