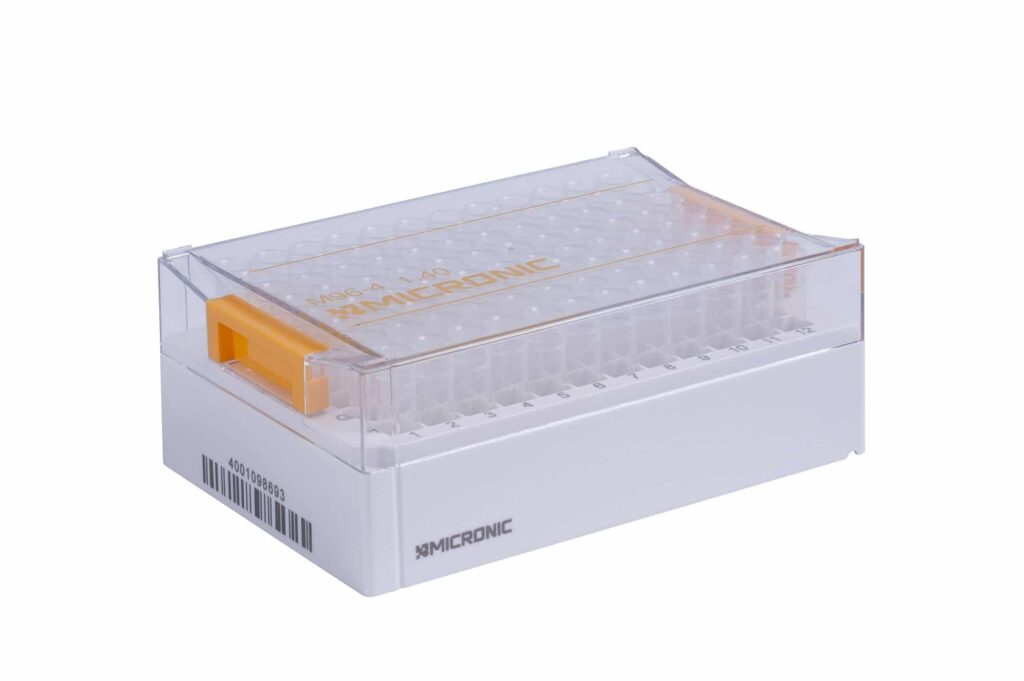

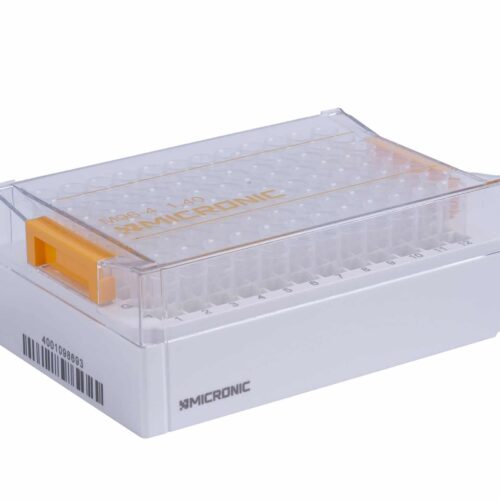

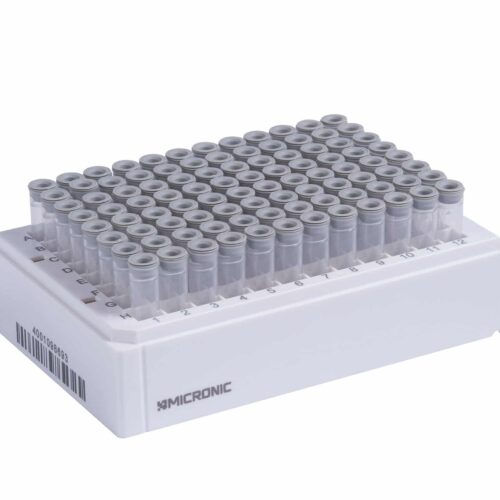

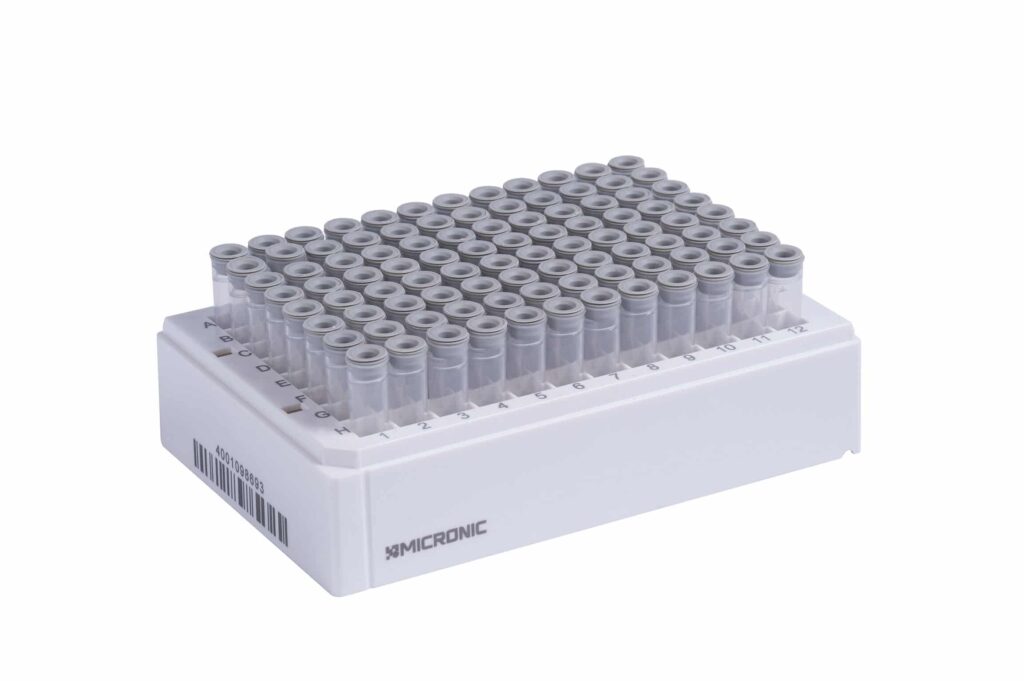

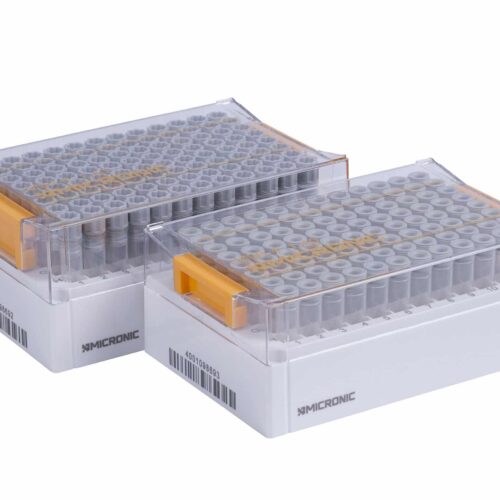

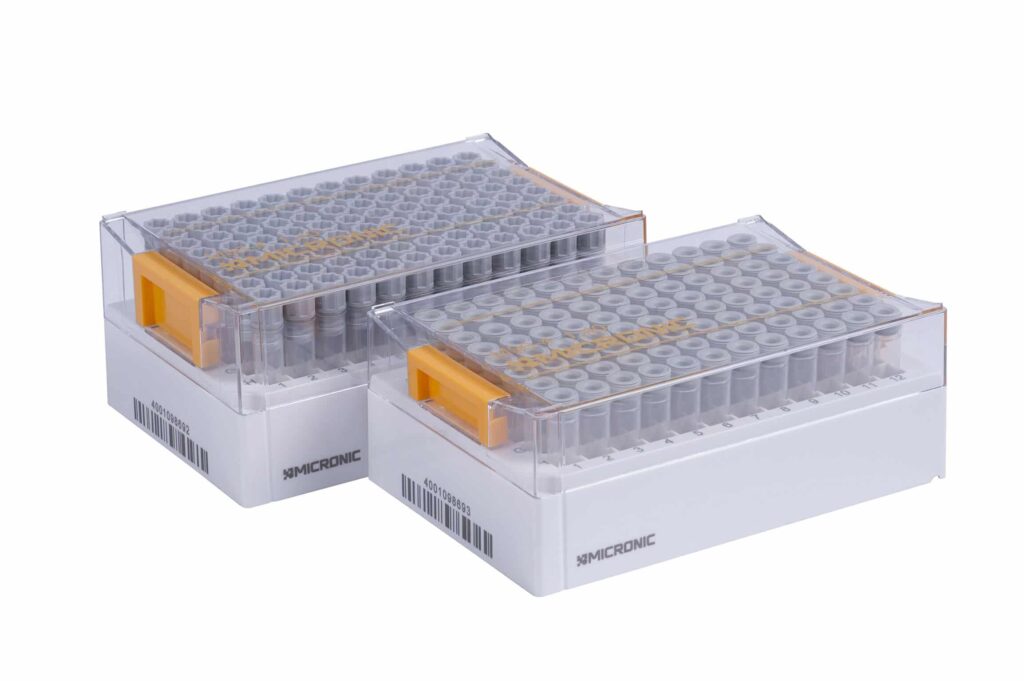

マイクロニック 96-4 ULTラック

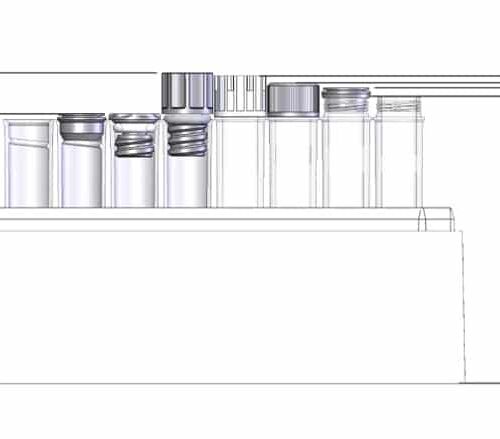

マイクロニック 96‑4ラックは、1.40 ml内ねじチューまたは1.40 ml外ねじチューブ96本を収納できます。認証取得済みクラス7クリーンルームで製造され、ANSI/SLAS規格に基づいており、ラック側面にレーザー刻印された1Dバーコード、オプションでラック底部に2Dコードを備えています
当社のソリューション
卓越した機能性を誇るラックシリーズ
マイクロニックは、30年以上にわたり、研究所や実験施設向けにトレーサビリティ対応のサンプル保管ソリューションを製造・提供してきました。その豊富な経験をもとに、次世代型の超低温チューブストレージラックシリーズ「ULTラック」を開発しました。このULTラックは、洗練された外観に加え、機能面においても卓越しています。極めて頑丈な構造は超低温環境での使用に最適化されており、蓋の霜付着を軽減する独自の「アイスブレーカー」機構を搭載。さらに、ラックやチューブの種類を識別しやすいカバープリント、ラックの方向を示すガイドマーク、サンプルの目視確認を容易にする高透明カバーなど、多彩な機能を備えています。
マイクロニックULTラックは、認証取得済みのクラス7クリーンルームにて精密に製造され、ANSI/SLAS準拠のストレージラック規格に適合。96本、48本、または24本のチューブ収納に対応し、上部には英数字による位置ガイド、側面には1Dバーコードと人が読み取れるコード、底部には2Dデータマトリックスコードをレーザー刻印。これにより、サンプルの完全なトレーサビリティと再現性を実現します。さらに、オープンボトムデザインにより、サンプルの迅速な解凍を可能に。複数回のオートクレーブ滅菌にも対応しており、ディスポーザブル製品と比較して大幅なコスト削減に貢献します。
特徴と利点
マイクロニック 96-4 ULTラック
ラック識別用ID

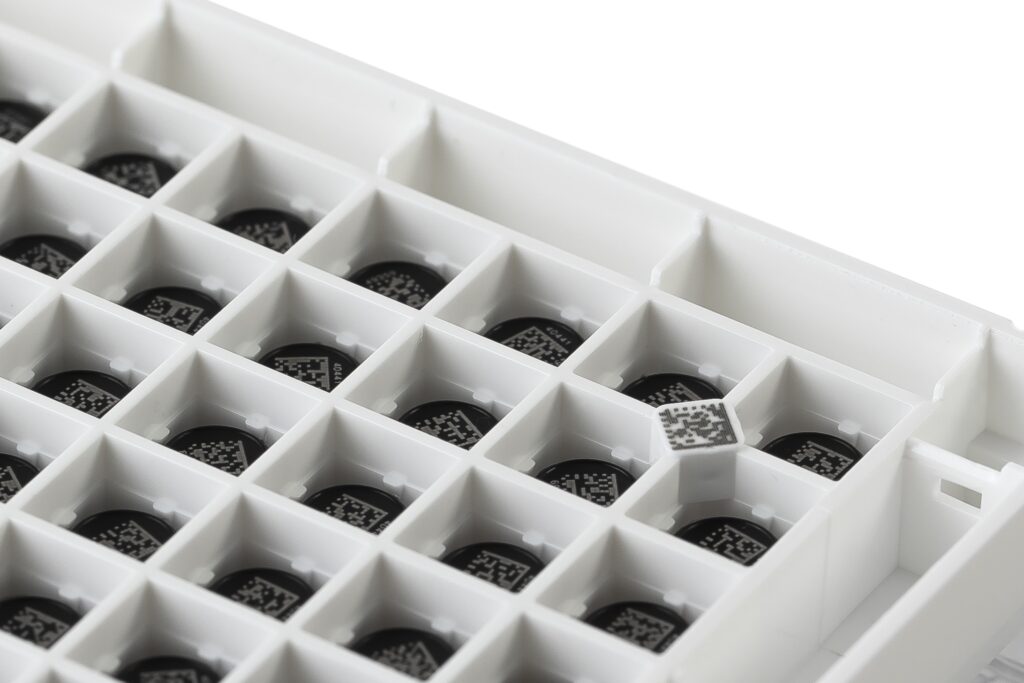

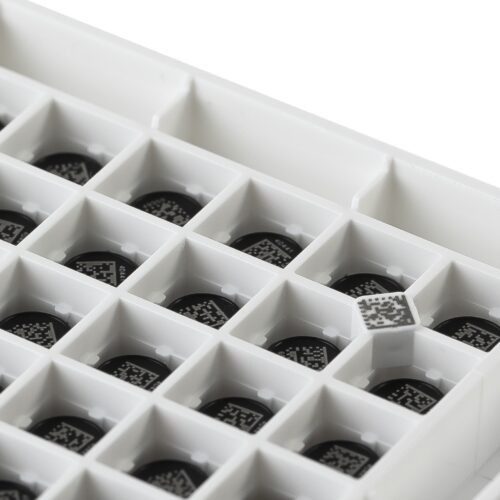

ラック上部にレーザー刻印による英数字コード、ラック側面に人が読み取れるコード付き1Dバーコード、オプションでラック底部に2Dデータマトリックスコード
超低温
ポリカーボネート製で、低温環境下でも優れた特性を発揮
『アイスブレーカー』機構
超低温保存用の新ロック機構: 『アイスブレーカー』を搭載
互換性
主要なサンプル保管オートメーションシステム（–20°C、–80°C、さらにはそれ以下の温度帯）へ対応
RNASE/DNASE/エンドトキシン
検出可能なRNaseおよびDNaseの汚染はなく、製造・包装されたラボウェアのエンドトキシンレベルは許容最小限（< 0.01 EU/ml）未満
クラス7クリーンルーム
マイクロニックのラボウェアは、NEN-EN-ISO 14644-1 クラス7認証を取得したクリーンルーム環境で自社製造

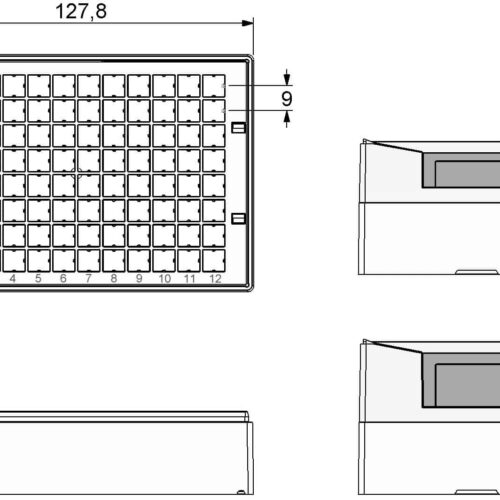

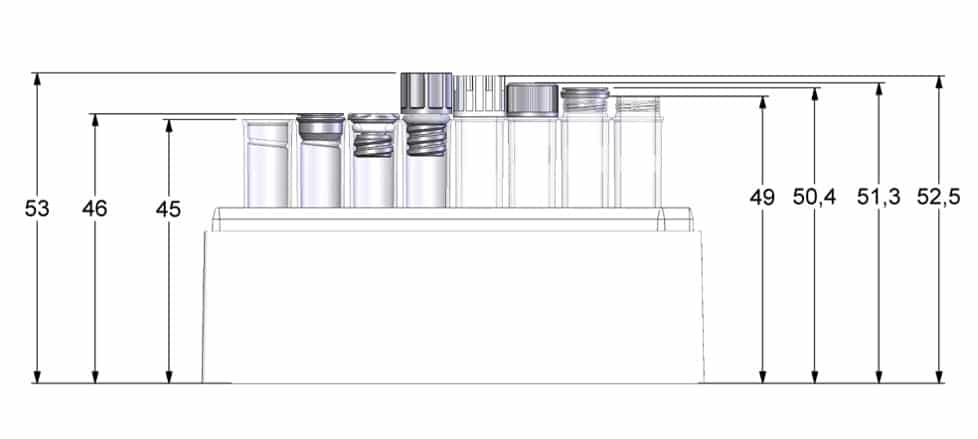

仕様
製品情報

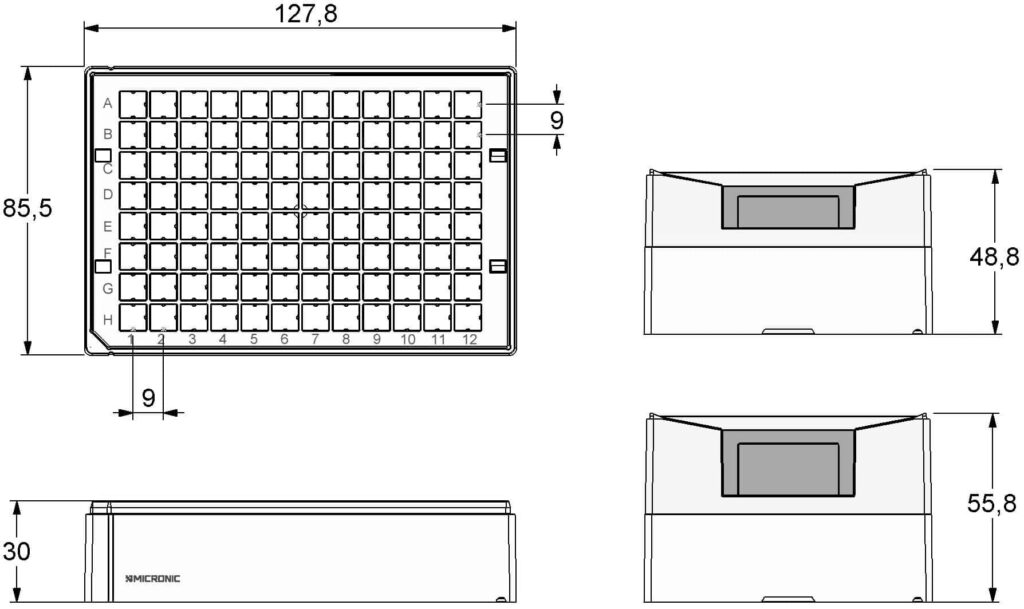

| 項目 | マイクロニック 96-4 ULTラック |
|---|---|
| 素材 | 高純度PC |
| ラック高さ | 30.0mm |
| ラック高さ(ローカバー) | 48.8mm |
| ラック高さ(ハイカバー) | 55.8mm |
| ラック長さ | 127.8mm |
| ラック幅 | 85.5mm |
| 化学耐性 | ++/+ |
| 使用温度帯 | 液体窒素の気相から140°C |
品番
発注用情報
| Article Number | Description | Unit Size | Case Size |
|---|---|---|---|
| MP51210 | Micronic 96-4 Rack with low cover for 1.40ml tubes capped with Push Caps or Low Profile Screw Caps (empty) (barcoded A1-H1 side) | 10 racks | 4 |
| MP51211 | Micronic 96-4 Rack with high cover for 1.40ml tubes capped with Screw Caps (empty) (barcoded A1-H1 side) | 10 racks | 2 |
| Article Number | Description | Unit Size | Case Size |
|---|---|---|---|
| MP51230 | Micronic 96-4-DM Rack with low cover for 1.40ml tubes capped with Push Caps or Low Profile Screw Caps (empty) (Barcoded A1-H1 side) | 10 racks | 4 |
| MP51231 | Micronic 96-4-DM Rack with high cover for 1.40ml tubes capped with Screw Caps (empty) (Barcoded A1-H1 side) | 10 racks | 2 |
| Article Number | Description | Unit Size | Case Size |
|---|---|---|---|
| MP32130 | 1.40ml Non coded Screw Cap tubes V-bottom in Micronic 96-4 Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| MP32131 | 1.40ml Non coded Screw Cap tubes V-bottom in Micronic 96-4 Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
| MP32137 | 1.40ml Non coded Screw Cap tubes with Internal Thread V-bottom in Micronic 96-4-DM Rack with low cover (Barcoded A1-H1 side) | 10 racks | 2 |
| MP32138 | 1.40ml Non coded Screw Cap tubes with Internal Thread V-bottom in Micronic 96-4-DM Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
| MP42130 | 1.40ml Alphanumeric coded Screw Cap tubes V-bottom in Micronic 96-4 Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| MP42131 | 1.40ml Alphanumeric coded Screw Cap tubes V-bottom in Micronic 96-4 Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
| MP42137 | 1.40ml Alphanumeric coded Screw Cap tubes with Internal Thread V-bottom in Micronic 96-4-DM Rack with low cover (Barcoded A1-H1 side) | 10 racks | 2 |
| MP42138 | 1.40ml Alphanumeric coded Screw Cap tubes with Internal Thread V-bottom in Micronic 96-4-DM Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
| MP52550 | 1.40ml 2D Data-Matrix coded Screw Cap tubes V-bottom in Micronic 96-4 Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| MP52551 | 1.40ml 2D Data-Matrix coded Screw Cap tubes V-bottom in Micronic 96-4 Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
| MP52556 | 1.40ml 2D Data-Matrix coded Screw Cap tubes with Internal Thread V-bottom in Micronic 96-4-DM Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| MP52557 | 1.40ml 2D Data-Matrix coded Screw Cap tubes with Internal Thread V-bottom in Micronic 96-4-DM Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
| Article Number | Description | Unit Size | Case Size |
|---|---|---|---|
| MP32131-Z20 | 1.40ml Non coded Screw Cap tubes V-bottom precapped with Grey Screw Cap in Micronic 96-4 Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
| MP42131-Z20 | 1.40ml Alphanumeric coded Screw Cap tubes V-bottom precapped with Grey Screw Cap in Micronic 96-4 Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
| MP52551-Z20 | 1.40ml 2D Data-Matrix coded Screw Cap tubes V-bottom precapped with Grey Screw Cap in Micronic 96-4 Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
| MP52550-V20 | 1.40ml 2D Data-Matrix coded Screw Cap tubes V-bottom precapped with Grey Low Profile Screw Cap in Micronic 96-4 Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| Article Number | Description | Unit Size | Case Size |
|---|---|---|---|
| MP32132 | 1.40ml Non coded Screw Cap tubes U-bottom in Micronic 96-4 Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| MP32133 | 1.40ml Non coded Screw Cap tubes U-bottom in Micronic 96-4 Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
| MP32139 | 1.40ml Non coded Screw Cap tubes with Internal Thread U-bottom in Micronic 96-4-DM Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| MP32140 | 1.40ml Non coded Screw Cap tubes with Internal Thread U-bottom in Micronic 96-4-DM Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
| MP42132 | 1.40ml Alphanumeric coded Screw Cap tubes U-bottom in Micronic 96-4 Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| MP42133 | 1.40ml Alphanumeric coded Screw Cap tubes U-bottom in Micronic 96-4 Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
| MP42139 | 1.40ml Alphanumeric coded Screw Cap tubes with Internal Thread U-bottom in Micronic 96-4-DM Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| MP42140 | 1.40ml Alphanumeric coded Screw Cap tubes with Internal Thread U-bottom in Micronic 96-4-DM Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
| MP52552 | 1.40ml 2D Data-Matrix coded Screw Cap tubes U-bottom in Micronic 96-4 Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| MP52553 | 1.40ml 2D Data-Matrix coded Screw Cap tubes U-bottom in Micronic 96-4 Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
| MP52558 | 1.40ml 2D Data-Matrix coded Screw Cap tubes with Internal Thread U-bottom in Micronic 96-4-DM Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| MP52559 | 1.40ml 2D Data-Matrix coded Screw Cap tubes with Internal Thread U-bottom in Micronic 96-4-DM Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
| Article Number | Description | Unit Size | Case Size |
|---|---|---|---|
| MP32133-Z20 | 1.40ml Non coded Screw Cap tubes U-bottom precapped with Grey Screw Cap in Micronic 96-4 Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
| MP42133-Z20 | 1.40ml Alphanumeric coded Screw Cap tubes U-bottom precapped with Grey Screw Cap in Micronic 96-4 Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
| MP52553-Z20 | 1.40ml 2D Data-Matrix coded Screw Cap tubes U-bottom precapped with Grey Screw Cap in Micronic 96-4 Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
| MP52552-V20 | 1.40ml 2D Data-Matrix coded Screw Cap tubes U-bottom precapped with Grey Low Profile Screw Cap in Micronic 96-4 Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| Article Number | Description | Unit Size | Case Size |
|---|---|---|---|
| MP32134 | 1.40ml Non coded Push Cap tubes (standard) round bottom in Micronic 96-4 Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| MP32141 | 1.40ml Non coded Push Cap tubes (standard) round bottom in Micronic 96-4-DM Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| MP42134 | 1.40ml Alphanumeric coded Push Cap tubes (standard) round bottom in Micronic 96-4 Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| MP42141 | 1.40ml Alphanumeric coded Push Cap tubes (standard) round bottom in Micronic 96-4-DM Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| Article Number | Description | Unit Size | Case Size |
|---|---|---|---|
| MP32135 | 1.40ml Non coded Push Cap tubes V-bottom in Micronic 96-4 Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| MP32142 | 1.40ml Non coded Push Cap tubes V-bottom in Micronic 96-4-DM Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| MP42135 | 1.40ml Alphanumeric coded Push Cap tubes V-bottom in Micronic 96-4 Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| MP42142 | 1.40ml Alphanumeric coded Push Cap tubes V-bottom in Micronic 96-4-DM Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| MP52554 | 1.40ml 2D Data-Matrix coded Push Cap tubes V-bottom in Micronic 96-4 Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| MP52562 | 1.40ml 2D Data-Matrix coded Push Cap tubes V-bottom in Micronic 96-4-DM Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| Article Number | Description | Unit Size | Case Size |
|---|---|---|---|
| MP32135-X01 | 1.40ml Non coded Push Cap tubes V-bottom precapped with TPE Caps Naturel in Micronic 96-4 Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| MP42135-X01 | 1.40ml Alphanumeric coded Push Cap tubes V-bottom precapped with TPE Caps Naturel in Micronic 96-4 Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| MP52554-X01 | 1.40ml 2D Data-Matrix coded Push Cap tubes V-bottom precapped with TPE Caps Naturel in Micronic 96-4 Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| Article Number | Description | Unit Size | Case Size |
|---|---|---|---|
| MP32136 | 1.40ml Non coded Push Cap tubes U-bottom in Micronic 96-4 Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| MP32143 | 1.40ml Non coded Push Cap tubes U-bottom in Micronic 96-4-DM Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| MP42136 | 1.40ml Alphanumeric coded Push Cap tubes U-bottom in Micronic 96-4 Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| MP42143 | 1.40ml Alphanumeric coded Push Cap tubes U-bottom in Micronic 96-4-DM Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| MP52555 | 1.40ml 2D Data-Matrix coded Push Cap tubes U-bottom in Micronic 96-4 Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| MP52563 | 1.40ml 2D Data-Matrix coded Push Cap tubes U-bottom in Micronic 96-4-DM Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| Article Number | Description | Unit Size | Case Size |
|---|---|---|---|
| MP32136-X01 | 1.40ml Non coded Push Cap tubes U-bottom precapped with TPE Caps Naturel in Micronic 96-4 Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| MP42136-X01 | 1.40ml Alphanumeric coded Push Cap tubes U-bottom precapped with TPE Caps Naturel in Micronic 96-4 Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| MP52555-X01 | 1.40ml 2D Data-Matrix coded Push Cap tubes U-bottom precapped with TPE Caps Naturel in Micronic 96-4 Rack with low cover (Barcoded A1-H1 side) | 10 racks | 4 |
| Article Number | Description | Unit Size | Case Size |
|---|---|---|---|
| MP32153 | 1.40ml Non coded Screw Cap tubes with External Thread V-bottom in Micronic 96-4 Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
| MP32155 | 1.40ml Non coded Screw Cap tubes with External Thread V-bottom in Micronic 96-4-DM Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
| MP52710 | 1.40ml 2D Data-Matrix coded Screw Cap tubes with External Thread V-bottom in Micronic 96-4 Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
| MP52741 | 1.40ml 2D Data-Matrix coded Screw Cap tubes with External Thread V-bottom in Micronic 96-4-DM Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
| Article Number | Description | Unit Size | Case Size |
|---|---|---|---|
| MP52710-G71 | 1.40ml 2D Data-Matrix coded Screw Cap tubes with External Thread V-bottom precapped with Grey Screw Caps IG in Micronic 96-4 Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
| Article Number | Description | Unit Size | Case Size |
|---|---|---|---|
| MP52761 | 1.40ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W1D U-bottom in Micronic 96-4 Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
| MP52765 | 1.40ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W00 U-bottom in Micronic 96-4 Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
| MP52782 | 1.40ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W1D U-bottom in Micronic 96-4-DM Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
| MP52783 | 1.40ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W00 U-bottom in Micronic 96-4-DM Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
| MP52761-G71 | 1.40ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W1D U-bottom precapped with Grey Screw Caps IG in Micronic 96-4 Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
| MP52765-G71 | 1.40ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W00 U-bottom precapped with Grey Screw Caps IG in Micronic 96-4 Rack with high cover (Barcoded A1-H1 side) | 10 racks | 2 |
