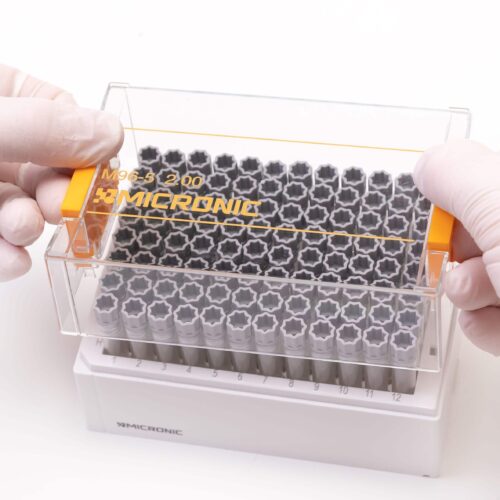

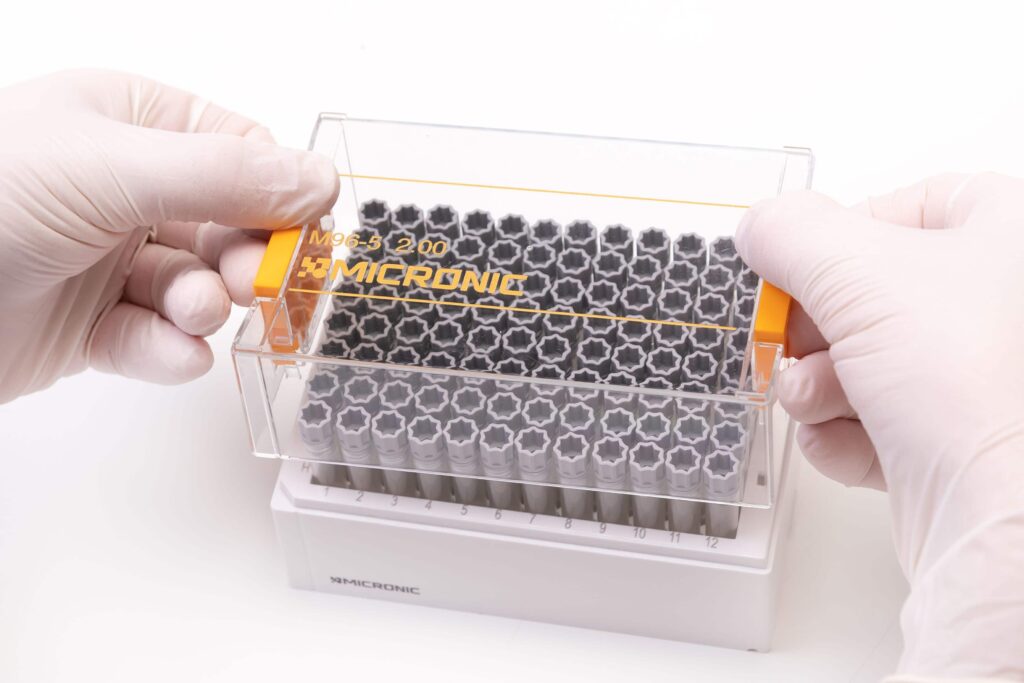

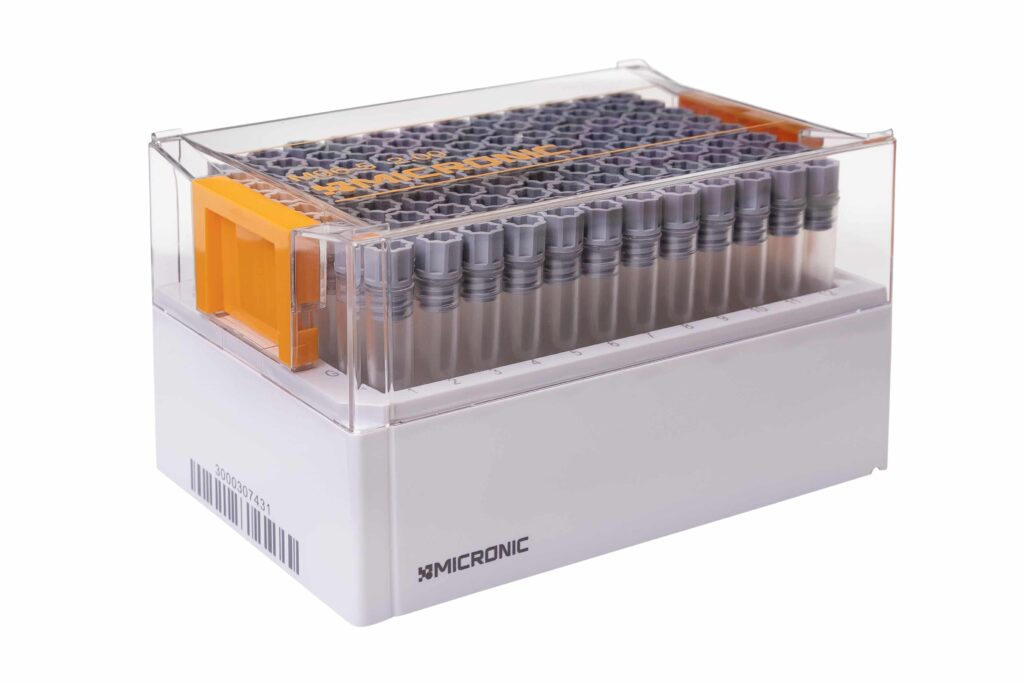

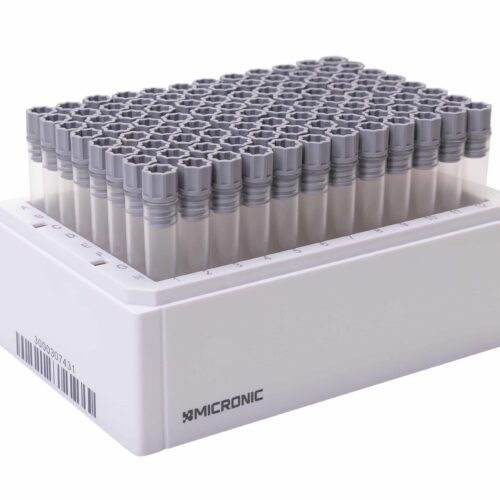

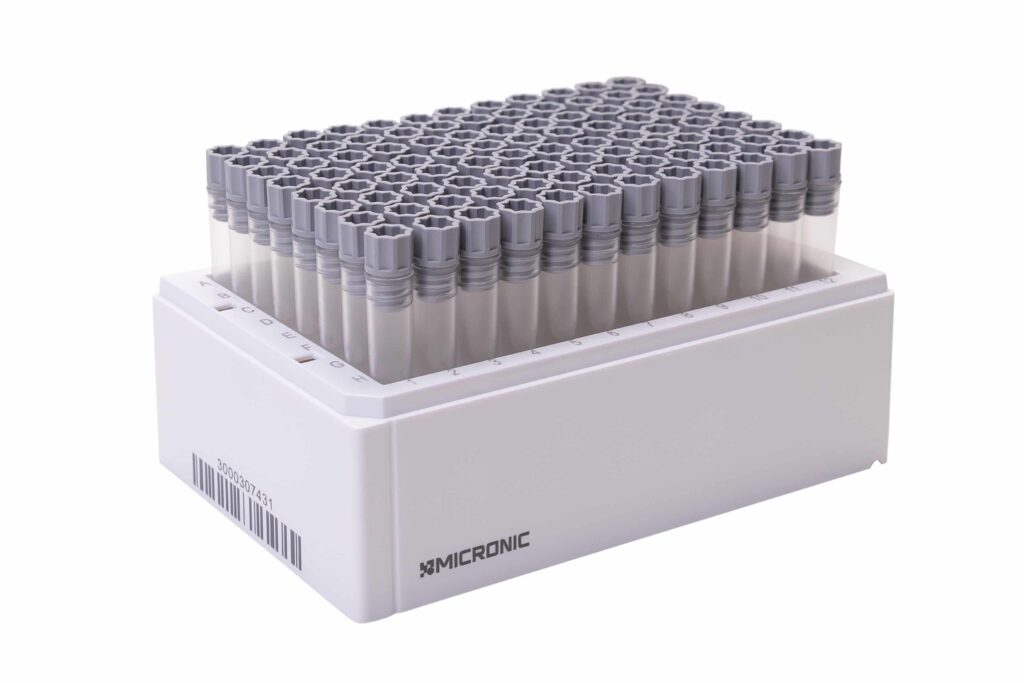

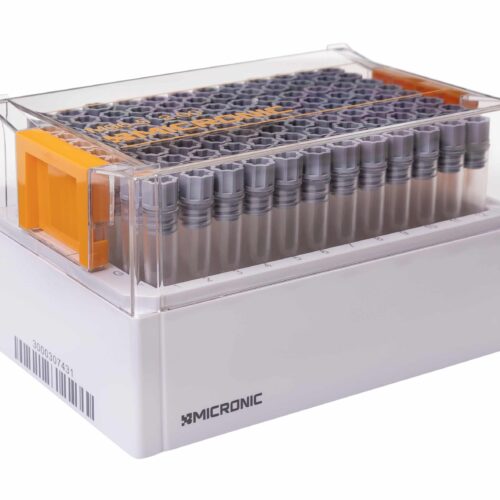

マイクロニック 96-5 ULTラック

マイクロニック独自の96-5ラックは、2.00mLの内ねじチューブまたは外ねじチューブを96本収納可能です。ANSI/SLASが定めるストレージラック規格に準拠しており、さまざまな自動化機器との互換性を備えています。認証を取得したクラス7クリーンルーム内にて、厳格な品質管理のもとで製造されています。使用されている素材は、品質と高純度を基準に厳選されており、長期的な使用や超低温環境にも適しています。

当社のソリューション

卓越した機能性を誇るラックシリーズ

マイクロニックは、30年以上にわたり、研究所や実験施設向けにトレーサビリティ対応のサンプル保管ソリューションを製造・提供してきました。その豊富な経験をもとに、次世代型の超低温チューブストレージラックシリーズ「ULTラック」を開発しました。このULTラックは、洗練された外観に加え、機能面においても卓越しています。極めて頑丈な構造は超低温環境での使用に最適化されており、蓋の霜付着を軽減する独自の「アイスブレーカー」機構を搭載。さらに、ラックやチューブの種類を識別しやすいカバープリント、ラックの方向を示すガイドマーク、サンプルの目視確認を容易にする高透明カバーなど、多彩な機能を備えています。

マイクロニックULTラックは、認証取得済みのクラス7クリーンルームにて精密に製造され、ANSI/SLAS準拠のストレージラック規格に適合。96本、48本、または24本のチューブ収納に対応し、上部には英数字による位置ガイド、側面には1Dバーコードと人が読み取れるコード、底部には2Dデータマトリックスコードをレーザー刻印。これにより、サンプルの完全なトレーサビリティと再現性を実現します。さらに、オープンボトムデザインにより、サンプルの迅速な解凍を可能に。複数回のオートクレーブ滅菌にも対応しており、ディスポーザブル製品と比較して大幅なコスト削減に貢献します。

特徴と利点

マイクロニック 96-5 ULTラック

ラック識別用ID
ラック上部にレーザー刻印による英数字コード、ラック側面に人が読み取れるコード付き1Dバーコード、ラック底部に2Dデータマトリックスコード
超低温
ポリカーボネート製で、低温環境下でも優れた特性を発揮
『アイスブレーカー』機構
超低温保存用の新ロック機構: 『アイスブレーカー』を搭載
互換性
主要なサンプル保管オートメーションシステム(–20°C、–80°C、さらにはそれ以下の温度帯)へ対応
RNASE/DNASE/エンドトキシン
検出可能なRNaseおよびDNaseの汚染はなく、製造・包装されたラボウェアのエンドトキシンレベルは許容最小限(< 0.01 EU/ml)未満
クラス7クリーンルーム
マイクロニックのラボウェアは、NEN-EN-ISO 14644-1 クラス7認証を取得したクリーンルーム環境で自社製造
仕様

製品情報

項目 マイクロニック 96-5 ULTラック
素材 高純度PC

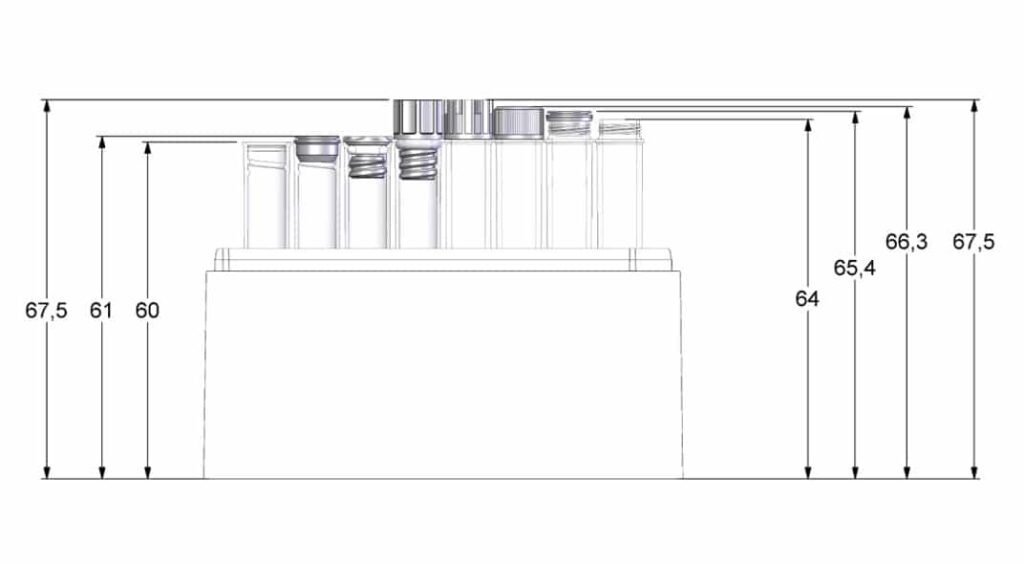

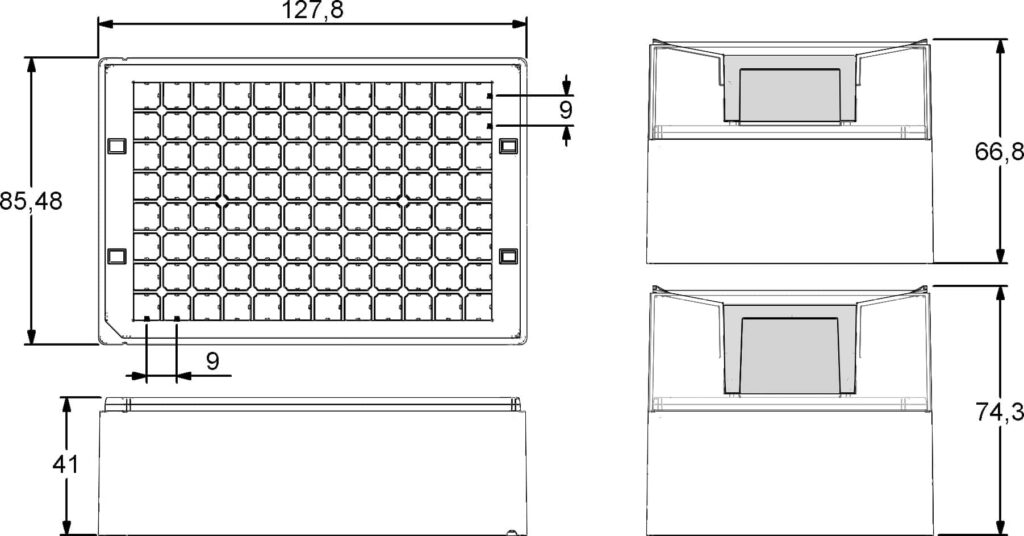

ラック高さ 41.0mm
ラック高さ(含カバー) 74.3mm
ラック長さ 127.8mm
ラック幅 85.48mm
化学耐性 ++/+
使用温度帯 液体窒素の気相から140°C
製品レビュー

お客様の声

“The integration of Micronic’s systems within our LIMS has proven invaluable in supporting our diagnostic efforts. The robust track and trace capabilities ensure that each sample is accurately logged, reducing the risk of errors and facilitating quick retrieval of information"

Read full testimonial

"The flexibility of Micronic’s SBS-format tubes ensures smooth integration into LACDR’s automated workflows. Additionally, the high quality and purity of the Micronic tubes guarantee robust sample preparation, free from leachables or contamination, which is crucial for obtaining reliable and reproducible research results"

Read full testimonial

"We are very happy with the tubes of Micronic, it is truly more efficient and space saving than we had in the past. Next to that, the fact that the tube positions are laser-etched in the rack itself is very helpful. We always know where the A1 tube is located."

Read full testimonial

Sampled is an American based company that gives laboratories the ability to outsource various services, like sample management, sample storage, multiomics, cellular services and kitting and logistics.

Read full testimonial

“At the AMC location, years of positive experience with Micronic have shown that their products consistently meet high standards, ensuring smooth laboratory operations and dependable sample storage”

Read full testimonial
Wageningen Bioveterinary Research (NL)
品番

発注用情報

96-5 ULTラック

Article Number Description Unit Size Case Size
MP51215 Micronic 96-5 Rack with low cover for 2.00ml tubes capped with Push Caps or Low Profile Screw Caps (empty) (barcoded A1-H1 side) 6 racks 4
MP51216 Micronic 96-5 Rack with high cover for 2.00ml tubes capped Screw Caps (empty) (barcoded A1-H1 side) 6 racks 4

2.00ml 内ねじチューブ U底

Article Number Description Unit Size Case Size
MP52359 2.00ml 2D Data-Matrix coded Screw Cap tubes U-bottom Bulk 576 tubes 4
MP52570 2.00ml 2D Data-Matrix coded Screw Cap tubes U-bottom in Micronic 96-5 Rack with low cover (Barcoded A1-H1 side) 6 racks 4
MP52571 2.00ml 2D Data-Matrix coded Screw Cap tubes U-bottom in Micronic 96-5 Rack with high cover (Barcoded A1-H1 side) 6 racks 4

2.00ml外ねじチューブ

Article Number Description Unit Size Case Size
MP52712 2.00ml 2D Data-Matrix coded Screw Cap tubes with External Thread V-bottom Bulk 576 tubes 4
MP52714 2.00ml 2D Data-Matrix coded Screw Cap tubes with External Thread V-bottom in Micronic 96-5 Rack with high cover (Barcoded A1-H1 side) 6 racks 4
