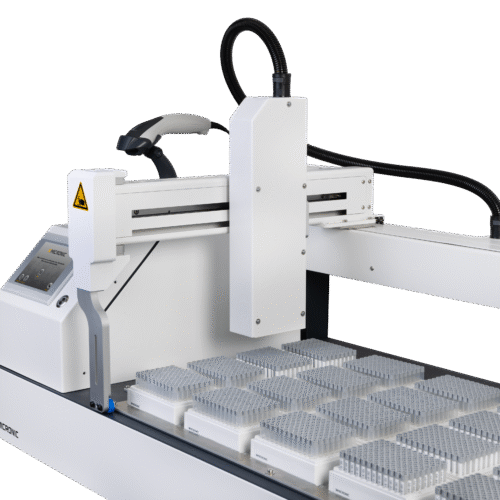

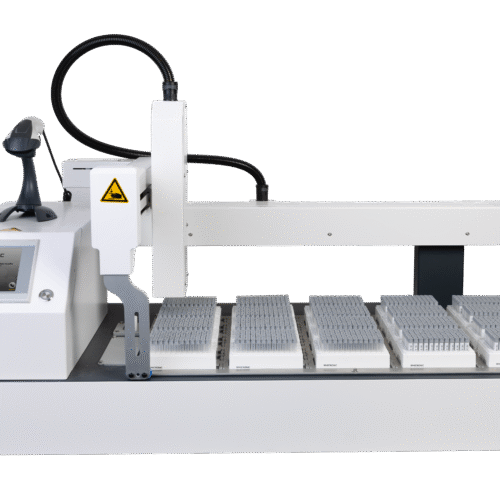

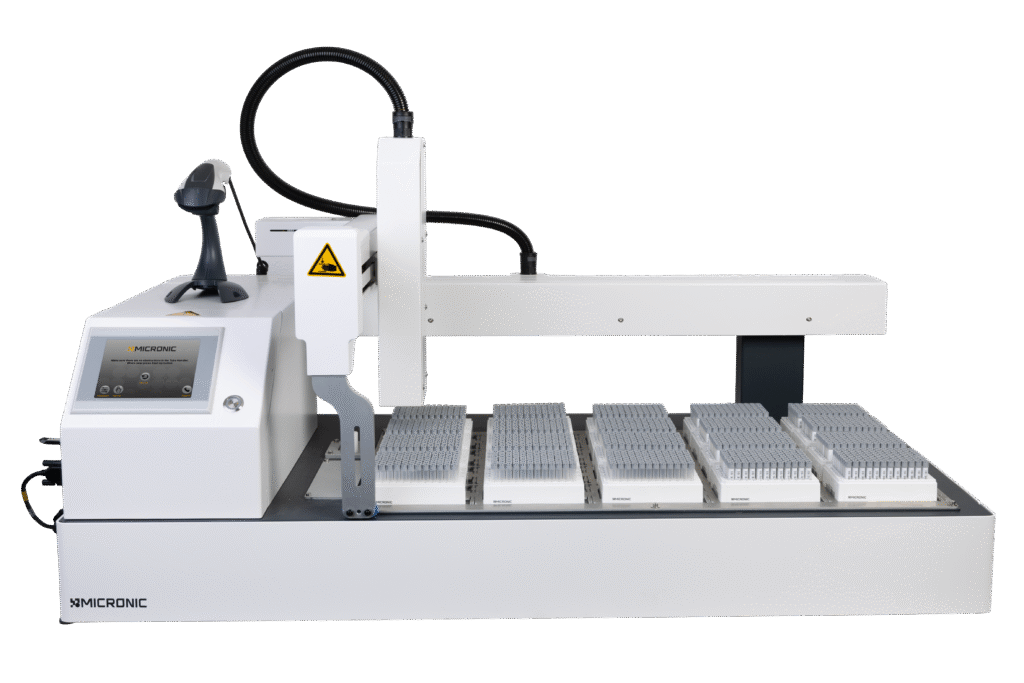

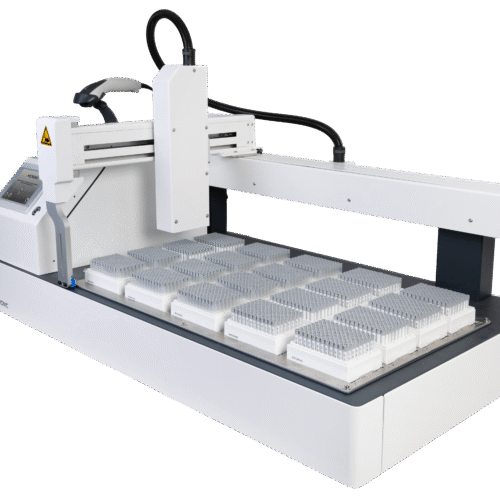

Micronic Tube Handler HT500

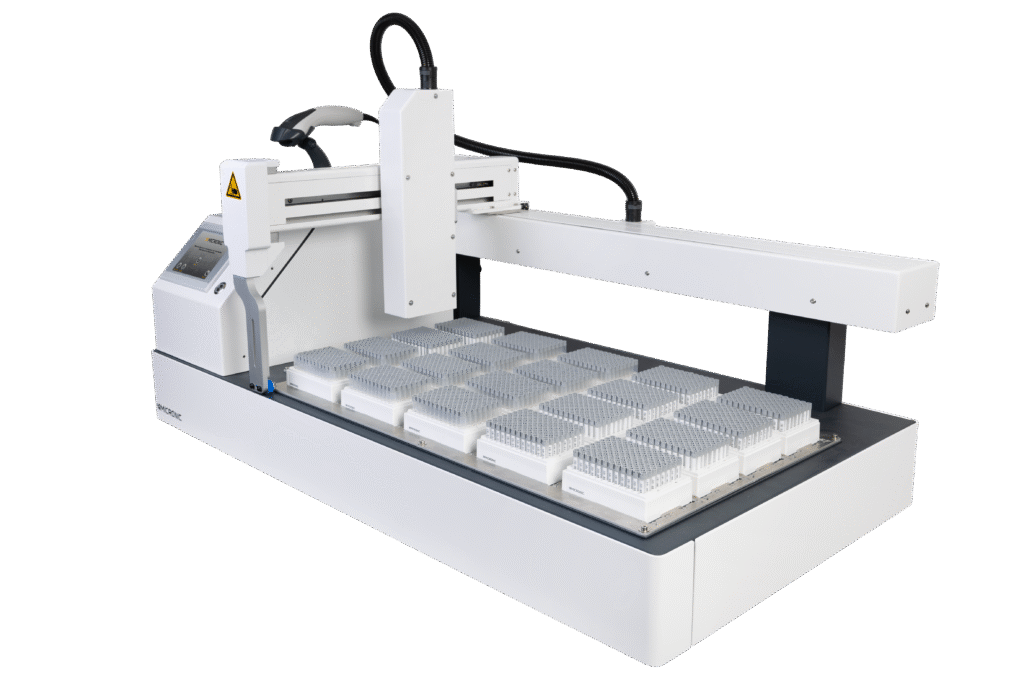

The Tube Handler HT500 is an affordable sample management system that sorts your valuable liquid and solid samples. The device can be used to pick specific specimens from a large group of samples. The HT500 has a total rack capacity of 20 racks, specify at least one target rack and one source rack per run.

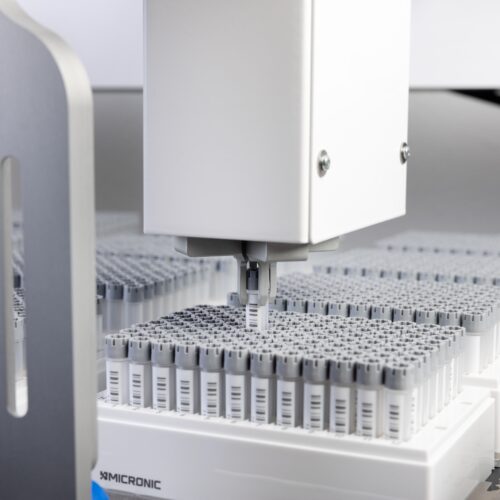

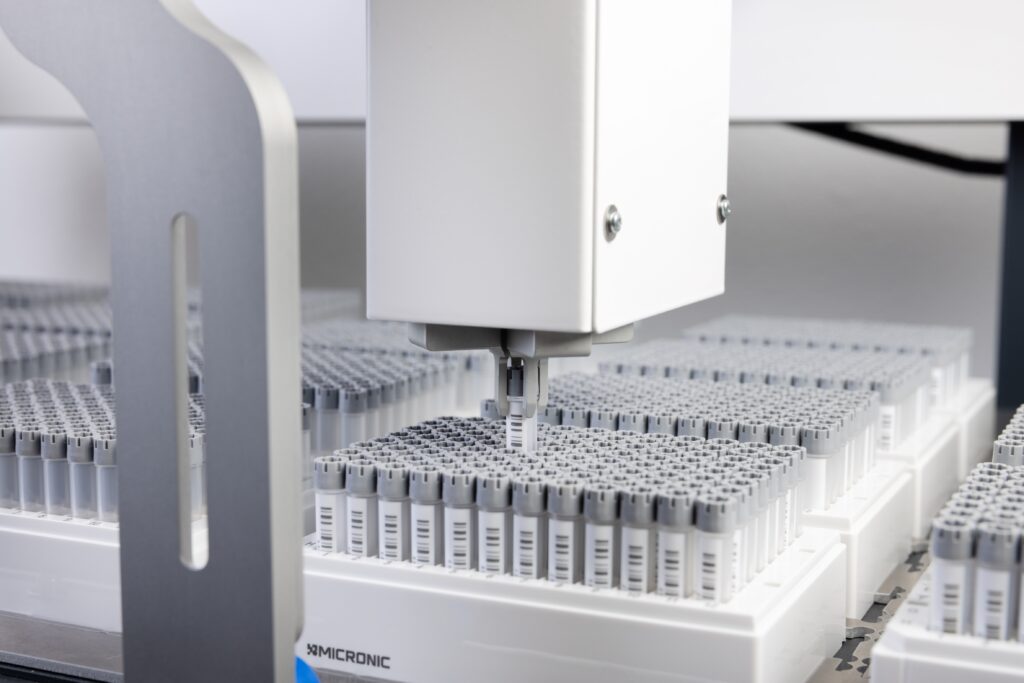

A “pick list” that is generated from a LIMS system can easily be loaded with a USB stick. The desired tubes are automatically selected and placed in a target rack. There is room for a maximum of 20 racks. A log-file is generated when the selection is finished. In combination with the use of Micronic tubes, the device is an excellent and reliable choice for many sample storage tube applications.

Our solutions

Sort your valuable liquid and solid samples

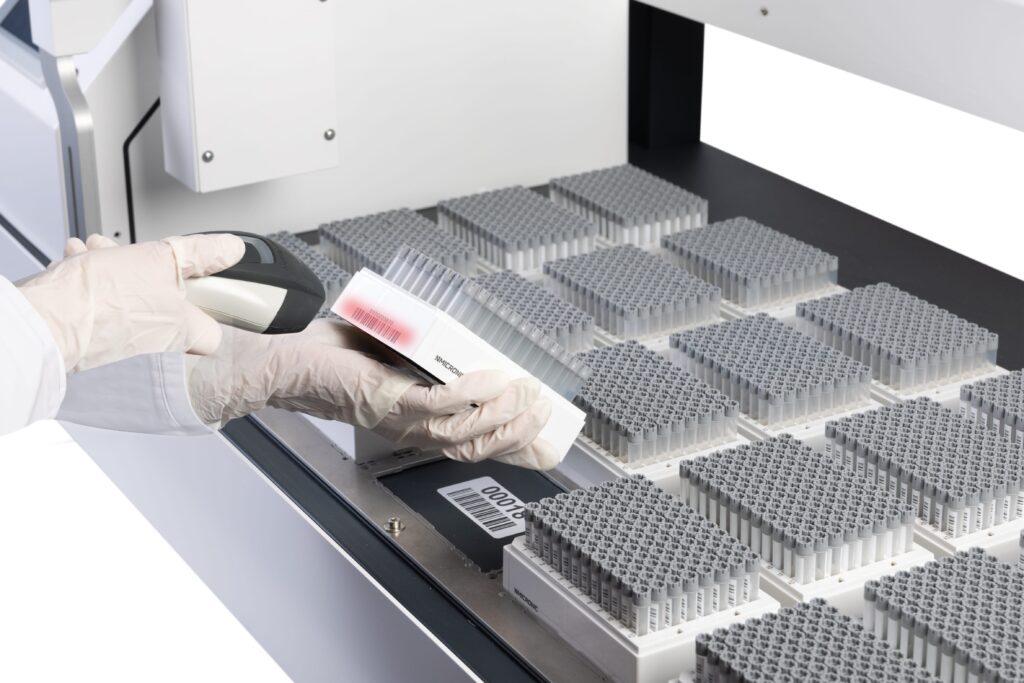

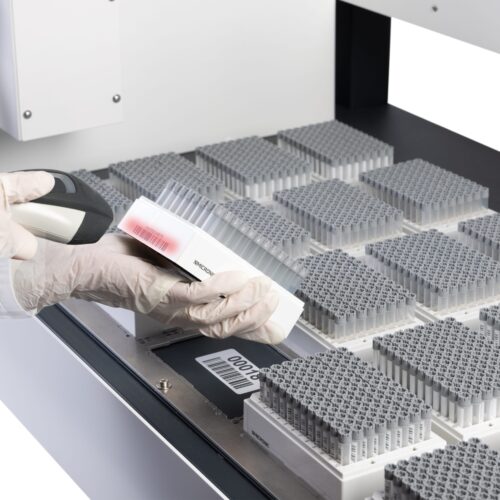

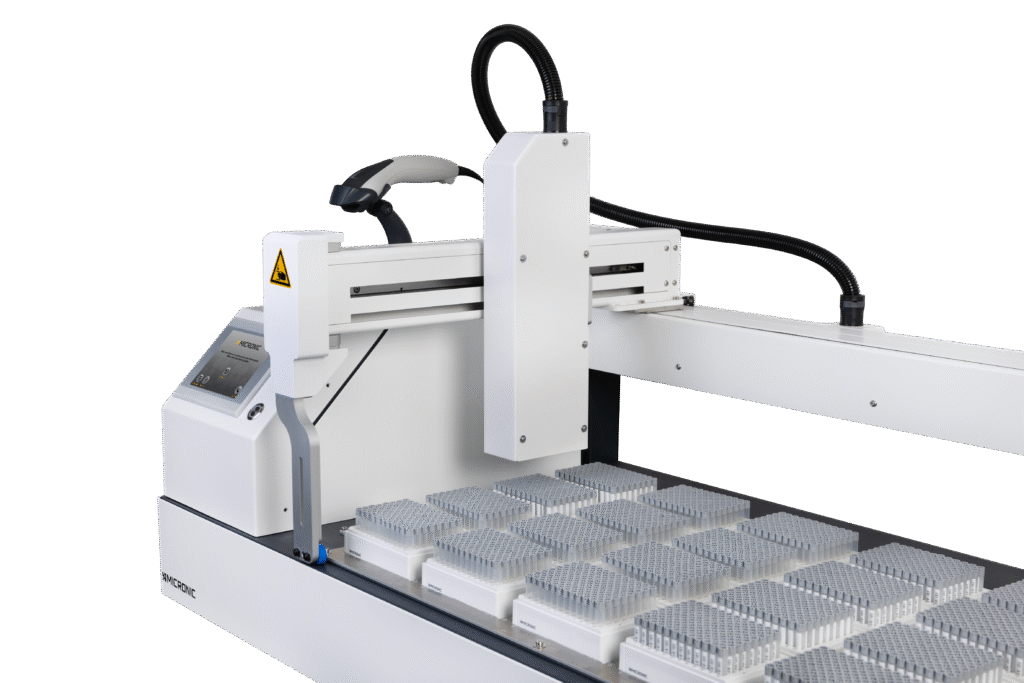

Traceability: Comes with a handheld 1D Barcode scanner and it has an integrated 2D tube code scanner.

Speed: Pick & place operation of 400 tubes per hour.

Semi-automatic: Semi-automatic linking between rack ID and rack position.

Compatibility: The tube handler is compatible with other brands of sample storage tubes. It can be used as a stand-alone device or it can be made compatible with LIMS systems.

features & benefits

Tube Handler HT500

Fast operation
400 sample tubes per hour enabled by efficiently organizing the platform to your wishes
Traceability
Integrated 2D tube code check
Semi-automatic linking
Semi-automatic linking between rack ID and rack position
Intuitive interface
Easy to navigate and intuitive interface
Rack capacity
A total rack capacity of 20 racks, specify per run at least one target rack and one source rack
Safety
Separate safety stop ensures sample/product protection
Specifications

Product information

Parameter Tube Handler HT500
Rack compatibility 96-well format Micronic racks (ANSI/SLAS standard)
Tube compatibility Micronic 0.30ml, 0.40ml, 0.50ml, 0.75ml, 0.80ml, 1.10ml and 1.40ml tubes
Rack capacity 20 racks
Parameter Tube Handler HT500
Input Loading CSV-file pick list from the USB thumb drive
Output Output CSV file of rack content
Operation Room temperature
Testimonials

What our customers say

マイクロニックのチューブには大変満足しています。使い勝手が良く、コードの読み取りも容易で、ソフトウェア自体も非常に役立ちます。A1の位置も常に把握できます。

お客様の声を読む

マイクロニックのチューブには大変満足しています。使い勝手が良く、コードの読み取りも容易で、ソフトウェア自体も非常に役立ちます。A1の位置も常に把握できます。

お客様の声を読む

「AMC拠点では、マイクロニック製品で長年にわたり良好な体験をしており、円滑なラボ運用と信頼性の高いサンプル保管を実現しています」

お客様の声を読む

「当社のLIMSにマイクロニックのシステムを統合したことで、ワークフローの合理化、エラーリスクの低減、情報の迅速な検索が実現しました」

お客様の声を読む

Sampledは米国拠点の企業で、バイオサンプルの収集・処理・保存、マルチオミクス、細胞関連サービス、キット化およびロジスティクスまで、研究室向けに包括的なサービスを提供しています。

お客様の声を読む
EU-OPENSCREEN(ドイツ)
article numbers

Ordering information

Automated Systems

Article Number Description Unit Size
MP35510 Micronic Tube Handler HT500 (pick and place + 2D reading) 1 unit
