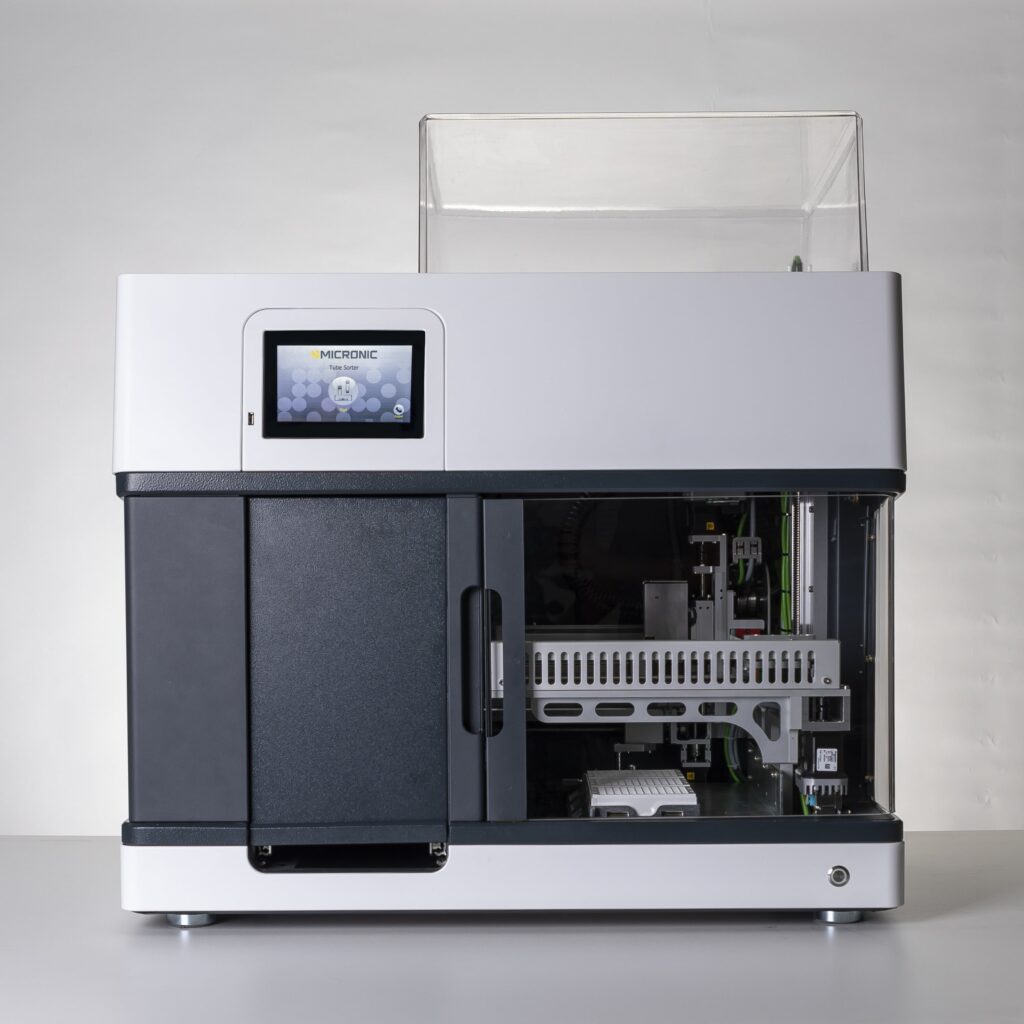

Micronic Tube Handler HT700

Next level sorting and managing of your valuable samples with the Micronic Tube Handler HT700. The automated handler answers the need for sorting sample storage tubes more efficiently, quickly and safely. Due to the unique design, the device has a small footprint and a large capacity. There is a minimum distance between the sample to be picked up and the target rack, which enables fast sorting. The closed system guarantees the safety of the user.

A “pick list” that is generated from a LIMS system can easily be loaded with a USB stick. The desired tubes are automatically selected and placed in a target rack. There is room for a maximum of 24 source racks and 1-3 target racks. A log-file is generated when the selection is finished. In combination with the use of Micronic tubes, the device is an excellent and reliable choice for many sample storage tube applications.

Our solutions

Next level tube sorting

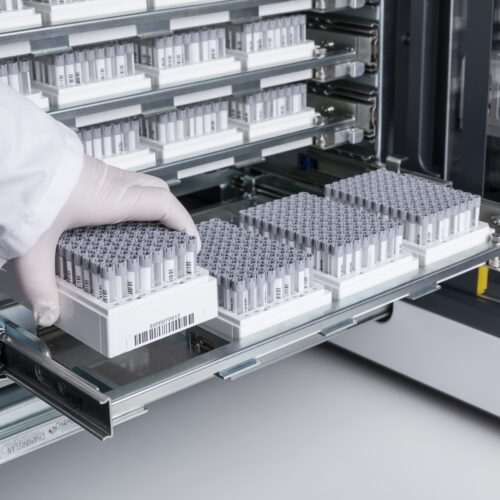

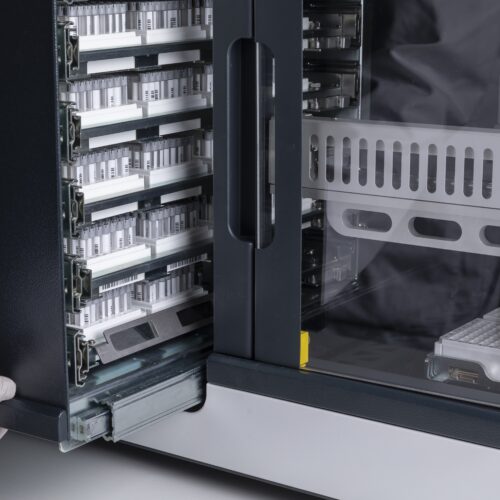

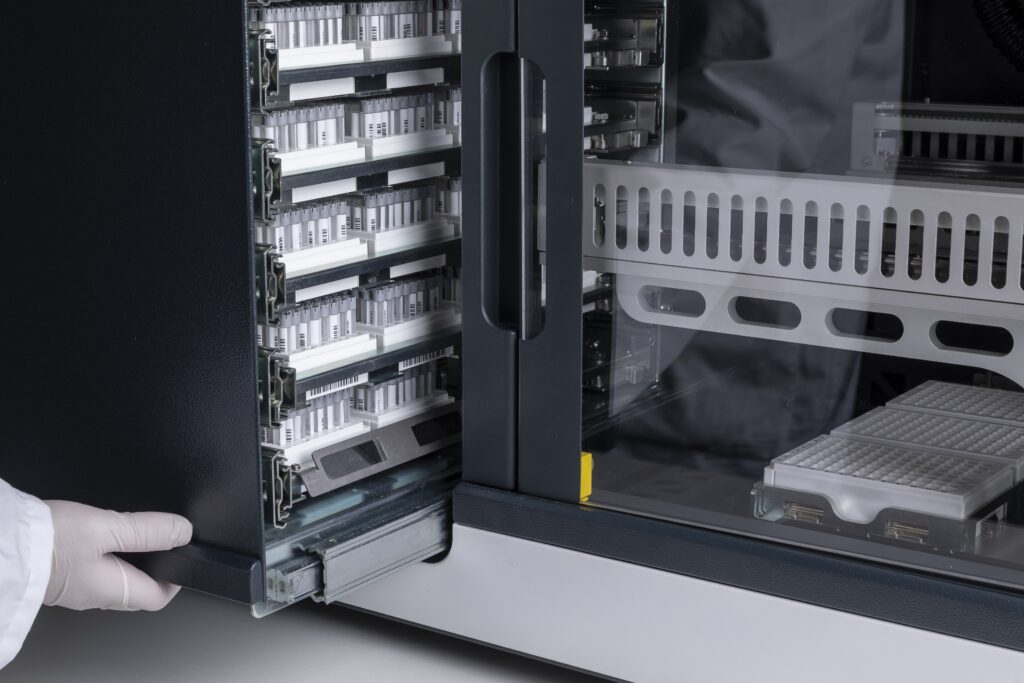

Small footprint: due to the unique ‘cassette’ design, the Tube Handler HT700 has a small footprint and a large capacity (24 source racks / 1-3 target racks) compared to other handlers where racks are placed side by side on a platform.

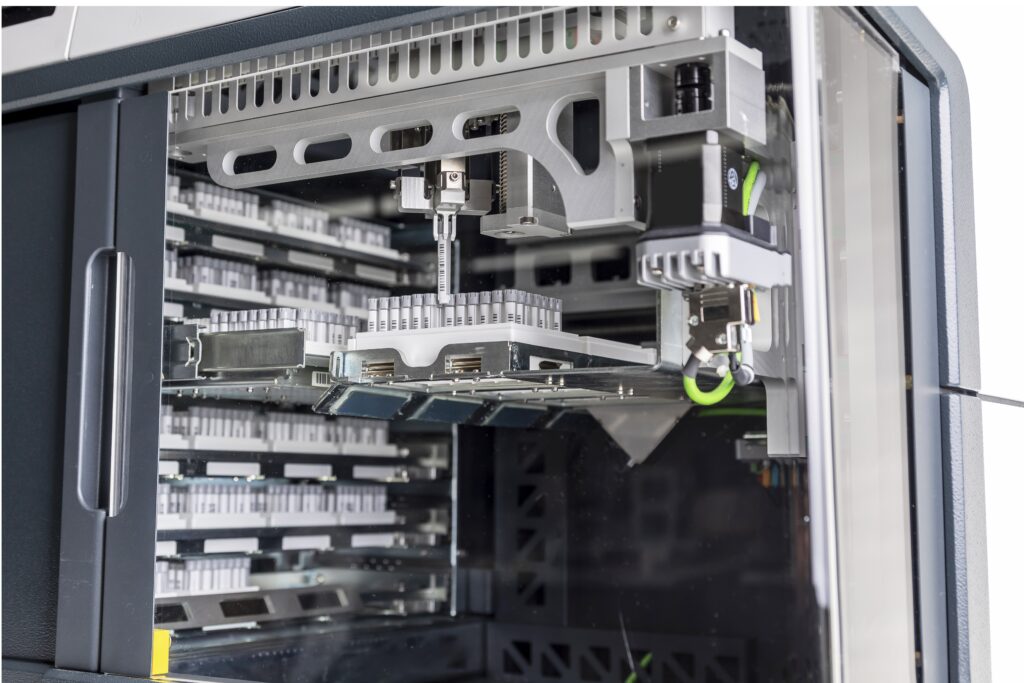

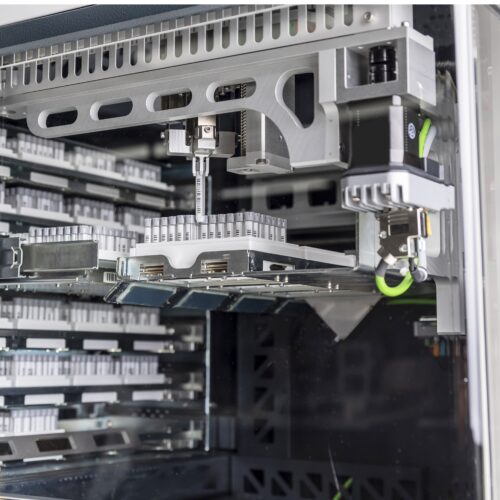

Speed: by making use of cassettes instead of a platform there is a minimum distance between the sample to be taken and the target rack, which enables fast sorting.

Safety: the unique closed system guarantees the safety of the user.

Compatibility: the device is compatible with other brands of sample storage tubes and there are possibilities for a customized device (contact us for more information). It can be used as a stand-alone device or it can be made compatible with LIMS systems.

features & benefits

Tube Handler HT700

Fast operation
550 sample tubes per hour enabled by the minimum distance between the sample to be picked and the target rack
Space efficient
Due to the unique 'cassette' design instead of placing racks side by side on a platform
Traceability
Unique integrated dual (1D rack barcode and 2D tube code) check
Automatic linking
Automatic linking between rack ID and rack position instead of using a separate 1D barcode reader
Protection
Enclosed system for operator safety and a separate safety stop ensures sample/product protection
Intuitive interface
Easy to navigate and intuitive interface
Specifications

Product information

Parameter Tube Handler HT700
Rack compatibility 96-well format Micronic racks (ANSI/SLAS standard)
Tube compatibility Micronic 0.50ml, 0.75ml, 0.80ml, 1.10ml and 1.40ml tubes
Source rack capacity 24 racks
Target rack capacity 1-3 racks
Parameter Tube Handler HT700
Input Loading CSV-file pick list from the USB thumb drive
Output Output CSV file of rack content
Operation Room temperature
Testimonials

What our customers say

「当社のLIMSにマイクロニックのシステムを統合したことで、ワークフローの合理化、エラーリスクの低減、情報の迅速な検索が実現しました」

お客様の声を読む

Sampledは米国拠点の企業で、バイオサンプルの収集・処理・保存、マルチオミクス、細胞関連サービス、キット化およびロジスティクスまで、研究室向けに包括的なサービスを提供しています。

お客様の声を読む

マイクロニックのチューブには大変満足しています。使い勝手が良く、コードの読み取りも容易で、ソフトウェア自体も非常に役立ちます。A1の位置も常に把握できます。

お客様の声を読む

マイクロニックのSBS規格チューブの柔軟性により、システムへのスムーズな統合が可能になり、信頼性が高く再現性のある研究成果の獲得に不可欠です。

お客様の声を読む

マイクロニックのチューブには大変満足しています。使い勝手が良く、コードの読み取りも容易で、ソフトウェア自体も非常に役立ちます。A1の位置も常に把握できます。

お客様の声を読む
Wageningen Bioveterinary Research(オランダ)
article numbers

Ordering information

Automated Systems

Article Number Description Unit Size
MP35500 Micronic Tube Handler HT700 (pick and place + 2D reading) 1 unit
