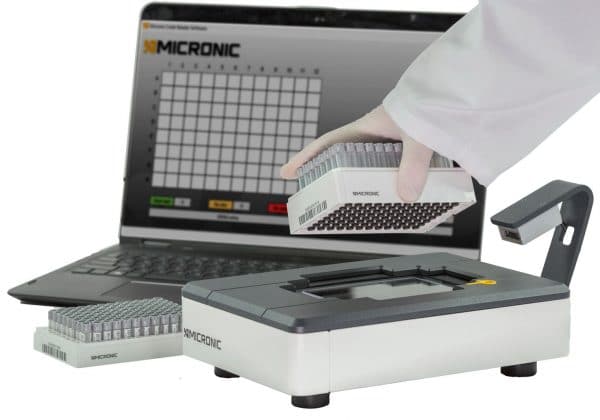

Micronic Rack Reader DR710
The DR710 is equipped with a uniquely designed active anti-frost system so that tube codes from even frozen samples can be read.
Find your ideal sample storage tube with our new Tube Configurator
Sample Storage Tubes
1.50ml Tubes External Thread Hybrid
The 1.50ml tubes with external thread hybrid eliminates the possibility of the sample coming into contact with the screw thread, minimizing chance of cross-contamination while improving sample integrity. The 1.50ml tubes can provide a high working volume with a relatively low tube height.
The 1.50ml tubes guarantee sample traceability and optimize working volume. The transparent part of the tube walls enable easy visual checking of the sample, while the different coding guarantees tissue sample traceability. Samples can be identified with the 2D Data-Matrix, numeric human readable and by written codes on the white surface of the tube. The high contrast 2D and human-readable codes are permanently laser-etched into the white surfaces, so that they can never wear or fall off.
Our Standards
Product Quality Information
Micronic operates corporate integrated Quality Management System (QMS) that is certified to ISO 9001:2015.
Reducing our impact on the environment is an integral part of our continuous improvement efforts. The environmental policy of Micronic is determined by our headquarters in the Netherlands, which is certified to ISO 14001:2015.
Certified Class 7 clean room
Micronic labware is manufactured and assembled in-house in a NEN-EN-ISO14644-1 Class 7 certified clean room environment (which is comparable to the US Federal Standard 209E Class 10,000).
Virgin material and approvals
For the manufacturing of its long term sample storage labware products Micronic uses solely virgin plastic raw material. The raw materials and auxiliary agents are selected based on the specifications that satisfy the high quality requirements of our products. The materials are FDA approved and comply with the (USA) USP XXII tests, including class VI (Medical approved), and the European Pharmacopoeia-monograph 3.2.2 unless communicated otherwise. Material components used to produce Micronic labware can be traced via the lot number indicated on the packaging.
Extractables
The materials used for Micronic tubes are the result of extensive research. One selection criteria is that no measurable amount of extractables should leach into samples.
RNase, DNase and endotoxin (pyrogen)
By maintaining the highest possible hygiene level during our production processes, Micronic manufactured labware is free of any detectable RNase or DNase contamination and the endotoxin level of produced and packaged labware is limited to an acceptable minimum (< 0.01 EU/ml). Our products are periodically tested on RNase, DNase and their endotoxin levels by independent expert organizations.
Laser-etched codes
The Micronic 2D Data-Matrix codes and 1D barcodes are produced conform industry standards. The 2D Data-Matrix code (which adheres to the ECC200 standard) and 1D barcode (type 128B) are laser-etched into the code area and are guaranteed unique.
Product quality control
Products produced by Micronic are tested according to AQL inspection level G2 and AQL value 0.4.
CE marking
Micronic labware products are developed and manufactured in compliance with the European Directive 98/79/EC for In Vitro Diagnostic Medical Devices, Annex III.
Sterilization
Upon request, Micronic products can be supplied gamma irradiated or ethylene oxide treated.
IATA
Our products comply with the IATA requirements for the transport of diagnostic specimens (UN packing instruction 602 and 650), assuming that our products are properly used (closed).
If you have any additional questions on the quality and safety of our products, please feel free to contact Micronic at sales@micronic.com.
Our solutions
AUTOMATED AND VISUAL SAMPLE IDENTIFICATION
The Micronic tubes with external thread hybrid uses a unique injection molding technique to manufacture the hybrid tubes, the white bottom and side walls cannot be separated from the transparent tube. The high contrast 1D, 2D and human-readable codes are permanently laser-etched into the white surfaces, so that they can never wear or fall off. The triple screw thread of the hybrid tubes gives an excellent closure for long-term sample preservation and storage at ultra-low temperatures. To prevent the screw cap from overturning – manually or mechanically – the cap is designed with a unique lock when sealed. The cap is available in nine different colors.
The Micronic hybrid tubes uniquely combine automated and visual sample identification. The visual codes allow researchers to quickly identify samples or verify codes during the storage/retrieval process or field research. The transparent parts of the tube wall enable easy visual checking of the sample. The 1D and 2D barcode can be read by automated systems. The bottom code surface of the tubes features a raised edge, which protects the 2D Data-Matrix code against accidental scratches.
features & benefits
1.50ml Tubes External Thread Hybrid
Optimal sealing
Triple start thread for optimal sealing quality
ultra-low temperature
Thick tube walls, sturdy design and excellent properties for ultra low temperature storage
100% quality control
100% quality control on all 2D codes (readability and uniqueness)
RNASE/DNASE/PYROGENS
Free of any detectable RNase or DNase contamination and the endotoxin level of produced and packaged labware is limited to an acceptable minimum (< 0.01 EU/ml)
class 7 clean room
Micronic labware is manufactured and assembled in-house in a NEN-EN-ISO14644-1 Class 7 certified clean room environment
AVAILABLE OPTIONS
Sterilization using gamma irradiation or Eto treatment, precapped with screw cap, customized 2D tube code or 1D rack barcode
Specifications
Product information
| Parameter | 1.50ml Tubes External Thread Hybrid |
|---|---|
| Inner Tube Shape | Flat bottom |
| Material | medical approved Polypropylene (CE-IVD) |
| Working volume (+21ºC) | 1.45ml |
| Tube height | 16.0mm |
| Tube height in rack | 17.0mm |
| Temperature range | Vapor phase LN2 to +100°C |
Testimonials
What our customers say
article numbers
Ordering information
| Article Number | Description | Unit Size | Case Size |
|---|---|---|---|
| W00 = White side walls without coding | |||
| WHR = White side walls with a human readable code on one side wall | |||
| MP52951 | 1.50ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid WHR Flat bottom Bulk | 240 tubes | 5 |
| MP52952 | 1.50ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W00 Flat bottom Bulk | 240 tubes | 5 |
| MP52954 | 1.50ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid WHR Flat bottom in Micronic 24-1 Rack with low cover (Barcoded A1-D1 side) | 10 racks | 4 |
| MP52955 | 1.50ml 2D Data-Matrix coded Screw Cap tubes with External Thread Hybrid W00 Flat bottom in Micronic 24-1 Rack with low cover (Barcoded A1-D1 side) | 10 racks | 4 |
| Article Number | Description | Unit Size | Case Size |
|---|---|---|---|
| MP53525 | Screw Caps for externally threaded tubes in 24-well format - Transparent | 240 caps | 1 |
| MP53520 | Screw Caps for externally threaded tubes in 24-well format - Grey | 240 caps | 1 |
| MP53501 | Screw Caps for externally threaded tubes in 24-well format - White | 240 caps | 1 |
| MP53504 | Screw Caps for externally threaded tubes in 24-well format - Yellow | 240 caps | 1 |
| MP53500 | Screw Caps for externally threaded tubes in 24-well format - Orange | 240 caps | 1 |
| MP53502 | Screw Caps for externally threaded tubes in 24-well format - Red | 240 caps | 1 |
| MP53509 | Screw Caps for externally threaded tubes in 24-well format - Purple | 240 caps | 1 |
| MP53503 | Screw Caps for externally threaded tubes in 24-well format - Blue | 240 caps | 1 |
| MP53523 | Screw Caps for externally threaded tubes in 24-well format - Light Green | 240 caps | 1 |
Contact
get in touch
We're here to help you with any questions you might have
Ellie van Essen
fill out the form below
Related products
More interesting products
Micronic Side Barcode Readers
When mounted on the side of a Micronic Rack Reader, both the 1D rack barcode and 2D Data-Matrix tube codes can be read simultaneously.
Micronic Screw Cap Recapper CS100
The Micronic Screw Cap Recapper CS100 line is developed to improve the manual (de)capping of tubes because they are set to a precise torque value.
Specially for tissue samples
1.00ml Tissue Tubes External Thread
The Micronic 1.00ml tissue storage tube with external thread is specially designed for the storage of your valuable fresh frozen tissue. Working volume (+21°C): 0.85ml with Screw Cap.
