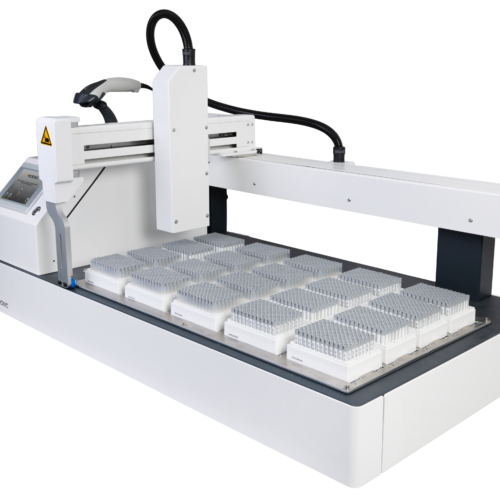

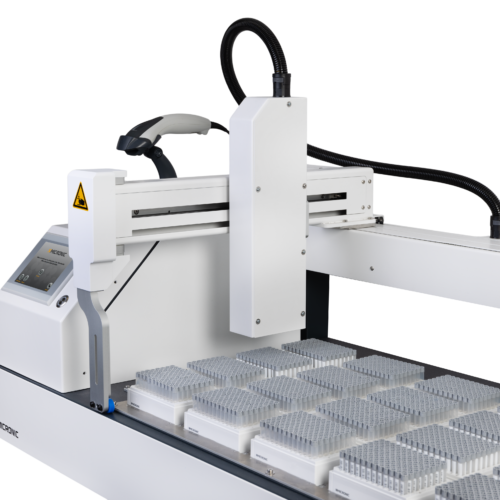

Micronic Tube Handler HT500

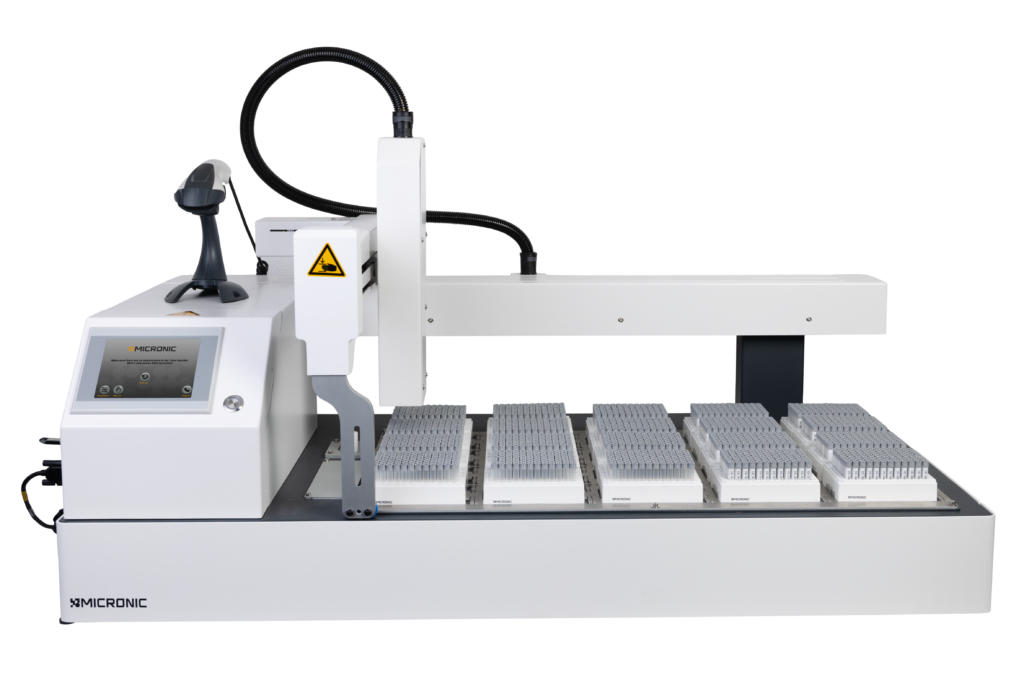

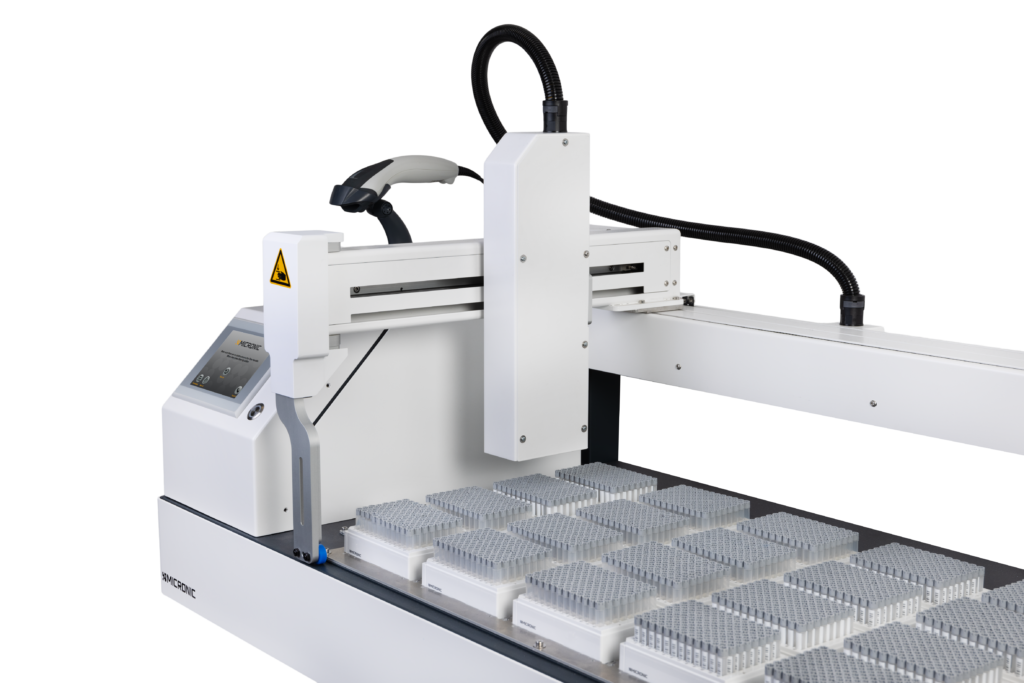

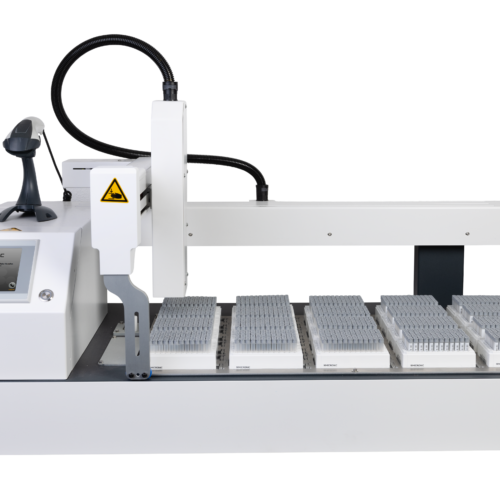

The Tube Handler HT500 is an affordable sample management system that sorts your valuable liquid and solid samples. The device can be used to pick specific specimens from a large group of samples. The HT500 has a total rack capacity of 20 racks, specify at least one target rack and one source rack per run.

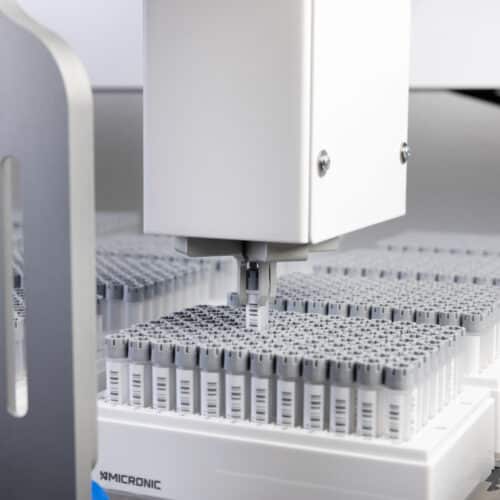

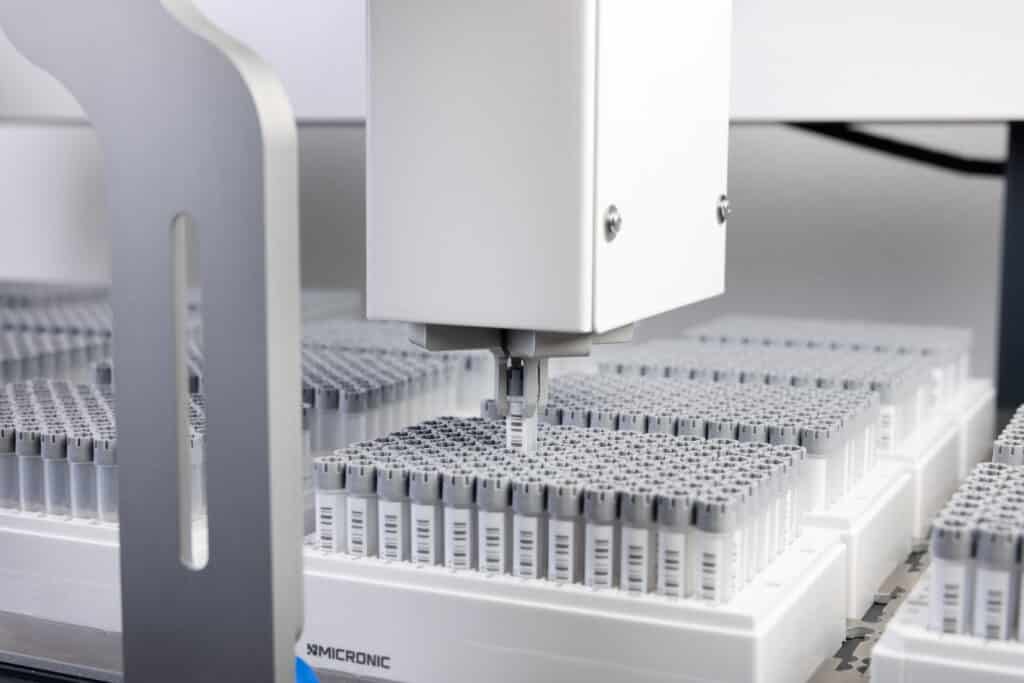

A “pick list” that is generated from a LIMS system can easily be loaded with a USB stick. The desired tubes are automatically selected and placed in a target rack. There is room for a maximum of 20 racks. A log-file is generated when the selection is finished. In combination with the use of Micronic tubes, the device is an excellent and reliable choice for many sample storage tube applications.

Our solutions

Sort your valuable liquid and solid samples

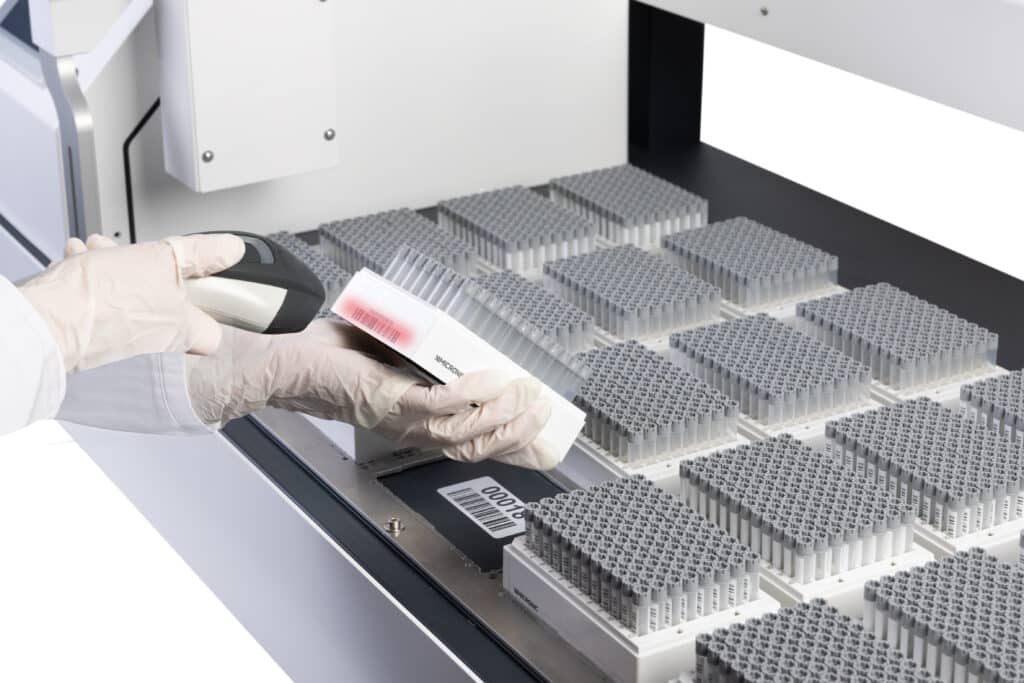

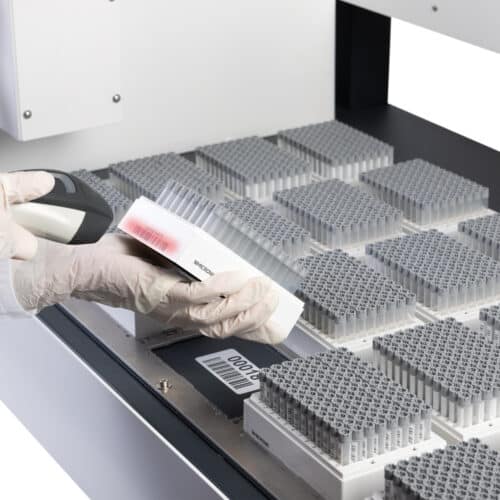

Traceability: Comes with a handheld 1D Barcode scanner and it has an integrated 2D tube code scanner.

Speed: Pick & place operation of 400 tubes per hour.

Semi-automatic: Semi-automatic linking between rack ID and rack position.

Compatibility: The tube handler is compatible with other brands of sample storage tubes. It can be used as a stand-alone device or it can be made compatible with LIMS systems.

features & benefits

Tube Handler HT500

Fast operation
400 sample tubes per hour enabled by efficiently organizing the platform to your wishes
Traceability
Integrated 2D tube code check
Semi-automatic linking
Semi-automatic linking between rack ID and rack position
Intuitive interface
Easy to navigate and intuitive interface
Rack capacity

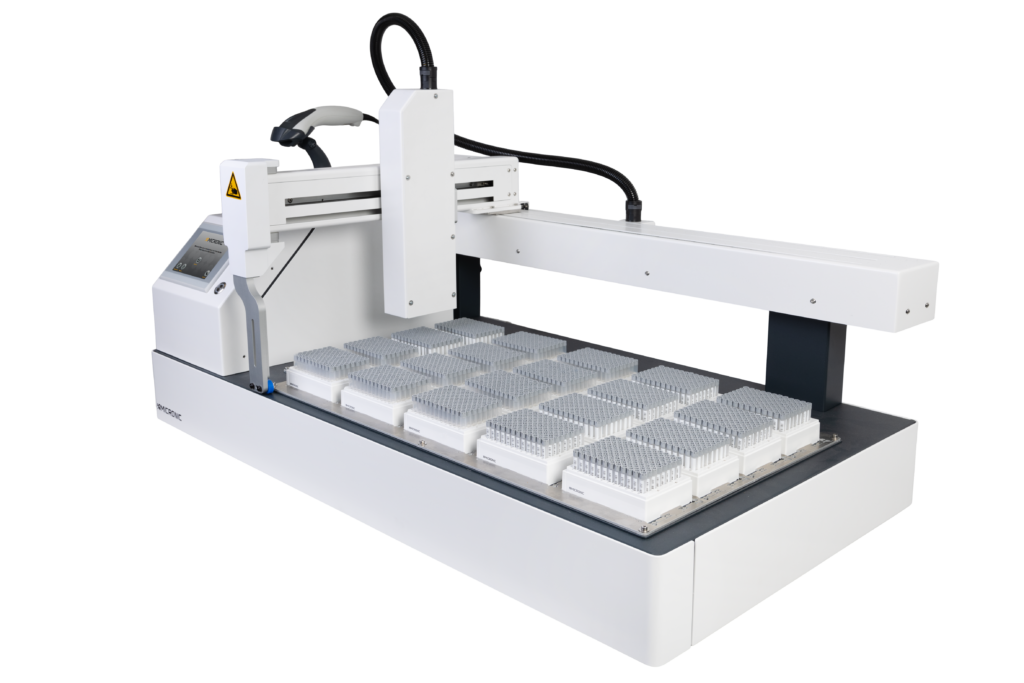

A total rack capacity of 20 racks, specify per run at least one target rack and one source rack
Safety
Separate safety stop ensures sample/product protection
Specifications

Product information

Parameter Tube Handler HT500
Rack compatibility 96-well format Micronic racks (ANSI/SLAS standard)
Tube compatibility Micronic 0.30ml, 0.40ml, 0.50ml, 0.75ml, 0.80ml, 1.10ml and 1.40ml tubes
Rack capacity 20 racks
Parameter Tube Handler HT500
Input Loading CSV-file pick list from the USB thumb drive
Output Output CSV file of rack content
Operation Room temperature
Testimonials

What our customers say

"We are very happy with the tubes of Micronic, it is truly more efficient and space saving than we had in the past. Next to that, the fact that the tube positions are laser-etched in the rack itself is very helpful. We always know where the A1 tube is located."

Read full testimonial

“We want to be able to handle and store our samples easily and effortlessly. The Micronic solution supports us in this. The capping equipment and TPE push caps have been super-efficient and easy to use."

Read full testimonial

"We use the Micronic sample storage products because the individual barcoded tubes allows us to easily swap tubes from plate to plate. As we have over 70,000 DNA samples, it is preferable to keep a sample in a single tube then split over several plates."

Read full testimonial

“After a comprehensive evaluation of commercially available consumables we selected Micronic 0.75ml and 1.4ml tubes together with screw caps and Roborack storage racks to provide high integrity, long-term storage of our human blood, serum and plasma samples at –80°C."

Read full testimonial

“We used the 6.00ml externally threaded tubes with 2D Data-Matrix code on the bottom. It was critical for us to have a good sample ID, so the 2D Data-Matrix code on the bottom and the 1D Rack barcode helped us to keep good track of our samples.”

Read full testimonial
Jessa Ziekenhuis
Agriculture Victoria cutout
Arizona State University
University Biobank Limburg (BE)
article numbers

Ordering information

Automated Systems

Article Number Description Unit Size
MP35510 Micronic Tube Handler HT500 (pick and place + 2D reading) 1 unit
